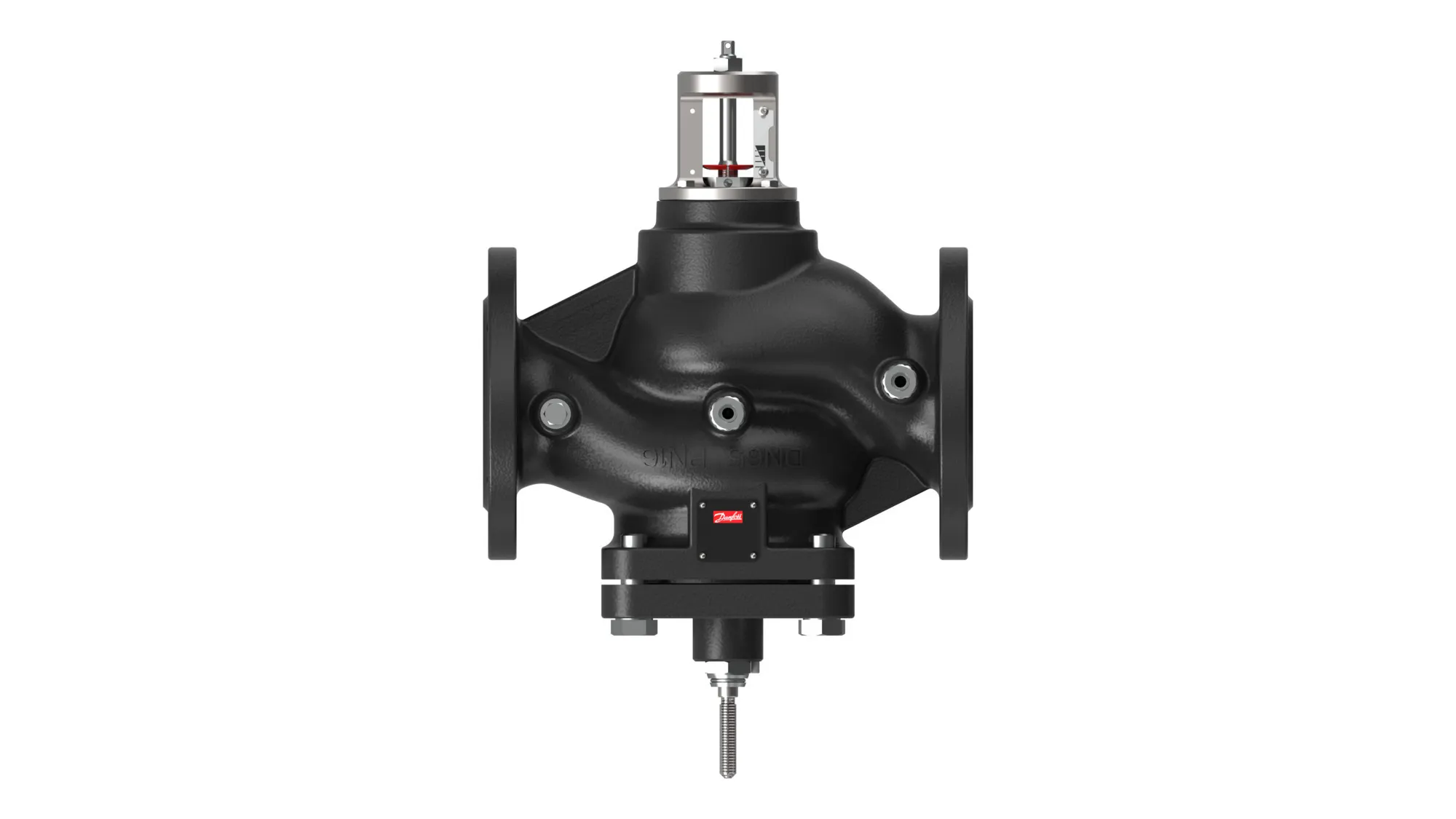

065B5611

Part Number: 065B5611
065B5611
Manufacturer
Danfoss
Part number
065B5611
Category

Product Information

Extended Description

065B5611 Danfoss: View:
Gross weight
162 Kilogram
Net weight
152 Kilogram
Volume
191.5 Liter
EAN
5715162398722
Application
District heating and cooling
Cavitation factor
0.4
Cavitation factor 100%
0.34
Cavitation factor 25%
0.65
Cavitation factor 50%
0.64
Cavitation factor 75%
0.41
Connection types
Flange
Diameter [mm]
150 mm
Differential pressure range [bar] [Max]
12 bar
Kvs values [m³/h]
380 m³/h
Leakage rate [% Kvs]
0.05
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Chamber
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Type
VFQ 221
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve cone material
Stainless steel M. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel M. No. 1.4021
Valve size
DN 150
003G5596
AFQ 2, PN 16, 0.20 bar, 320 cm²
003G5597
AFQ 2, PN 16, 0.50 bar, 320 cm²
003G5609
AFP 2, PN 16, 0.40 bar - 1.50 bar, 320 cm²
003G5610
AFP 2, PN 16, 0.10 bar - 1.00 bar, 320 cm²
003G5619
AFP 2, PN 40, 0.40 bar - 1.50 bar, 320 cm²
003G5620
AFP 2, PN 40, 0.10 bar - 1.00 bar, 320 cm²
003G5714
AFPQ 2, PN 40, 0.20 bar - 1.00 bar, 320 cm²
003G5715
AFPQ 2, PN 40, 0.20 bar - 1.00 bar, 320 cm²
003G5716
AFPQ 2, PN 40, 0.50 bar - 1.50 bar, 320 cm²
003G5717
AFPQ 2, PN 40, 0.50 bar - 1.50 bar, 320 cm²
VFG22(1), VFQ22(1) ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 VFQ22_VFQ221 VFQ22(1)_DN150_PN25_2D VFQ22(1)_DN150_PN25_STEP VFQ22(1)_DN150_PN25_3D
