065B5618

Part Number: 065B5618
065B5618
Manufacturer
Danfoss
Part number
065B5618
Category

Product Information

Extended Description

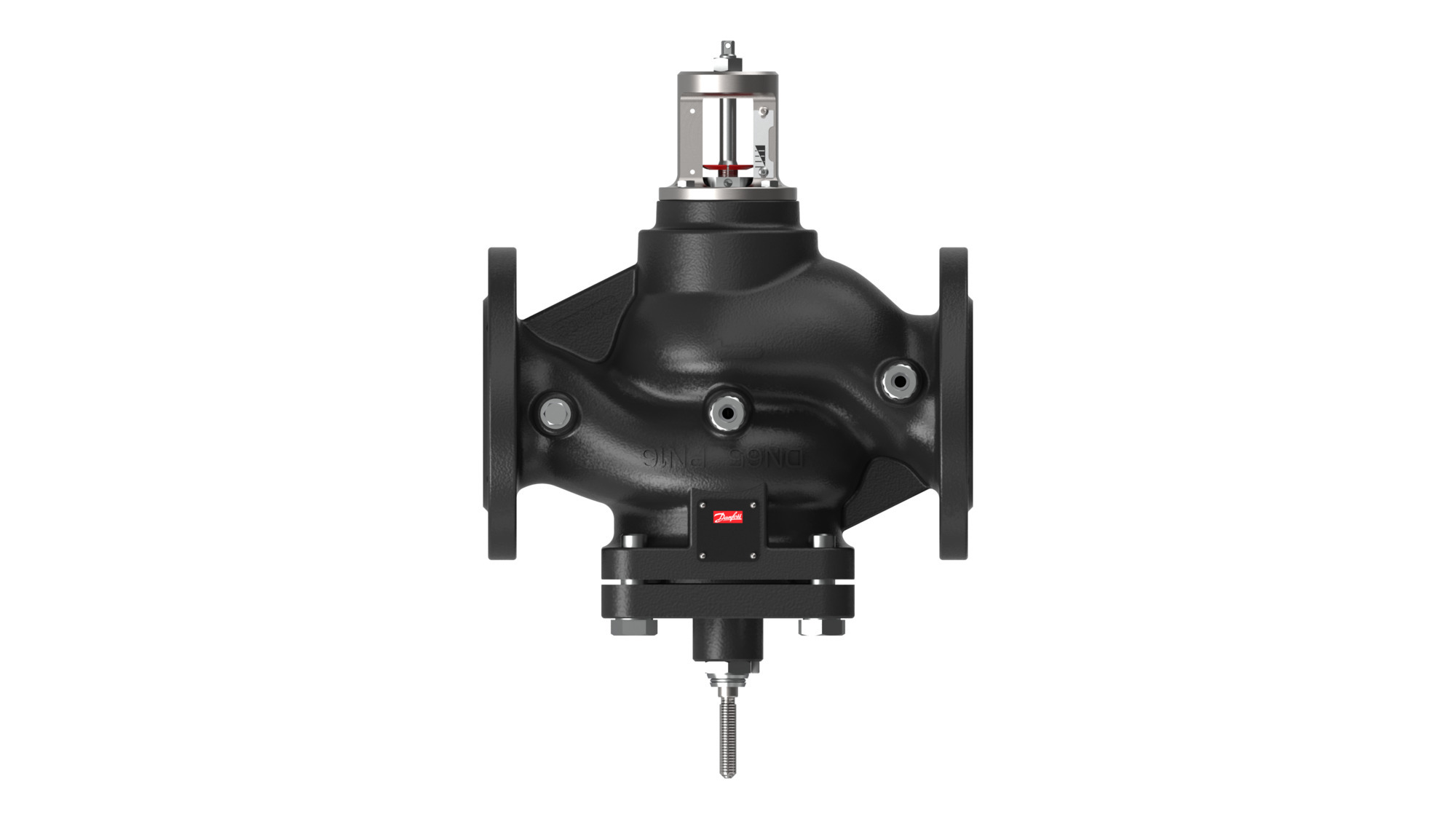

065B5618 Danfoss: Pressure operated valves
Gross weight
177 Kilogram
Net weight
167 Kilogram
Volume
192 Liter
EAN
5715162398791
Application
District heating and cooling
Cavitation factor
0.4
Cavitation factor 100%
0.34
Cavitation factor 25%
0.65
Cavitation factor 50%
0.64
Cavitation factor 75%
0.41
Connection types
Flange
Contain batteries
No
Description
Pressure operated valves
Diameter [mm]
150 mm
Differential pressure range [bar] [Max]
12 bar
Kvs values [m³/h]
380 m³/h
Leakage rate [% Kvs]
0.05
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
40 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Pressure nominal [bar]
40 bar
Pressure relieve system
Chamber
Product group
Pressure flow controllers
Sealing DP material
EPDM
Type
VFQ 221
Valve body material
Cast steel GP240GH (GS-C 25)
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve cone material
Stainless steel M. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel M. No. 1.4021
Valve size
DN 150
003G5596
AFQ 2, PN 16, 0.20 bar, 320 cm²
003G5597
AFQ 2, PN 16, 0.50 bar, 320 cm²
003G5609
AFP 2, PN 16, 0.40 bar - 1.50 bar, 320 cm²
003G5610
AFP 2, PN 16, 0.10 bar - 1.00 bar, 320 cm²
003G5619
AFP 2, PN 40, 0.40 bar - 1.50 bar, 320 cm²
003G5620
AFP 2, PN 40, 0.10 bar - 1.00 bar, 320 cm²
003G5714
AFPQ 2, PN 40, 0.20 bar - 1.00 bar, 320 cm²
003G5715
AFPQ 2, PN 40, 0.20 bar - 1.00 bar, 320 cm²
003G5716
AFPQ 2, PN 40, 0.50 bar - 1.50 bar, 320 cm²
003G5717
AFPQ 2, PN 40, 0.50 bar - 1.50 bar, 320 cm²
AFPB(-F) 2 / VFQ22(1) VFG22(1), VFQ22(1) ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 VFQ22_VFQ221 VFQ22(1)_DN150_PN40_3D VFQ22(1)_DN150_PN40_2D VFQ22(1)_DN150_PN40_STEP
