065B7540
Part Number: 065B7540
Product Information
Extended Description

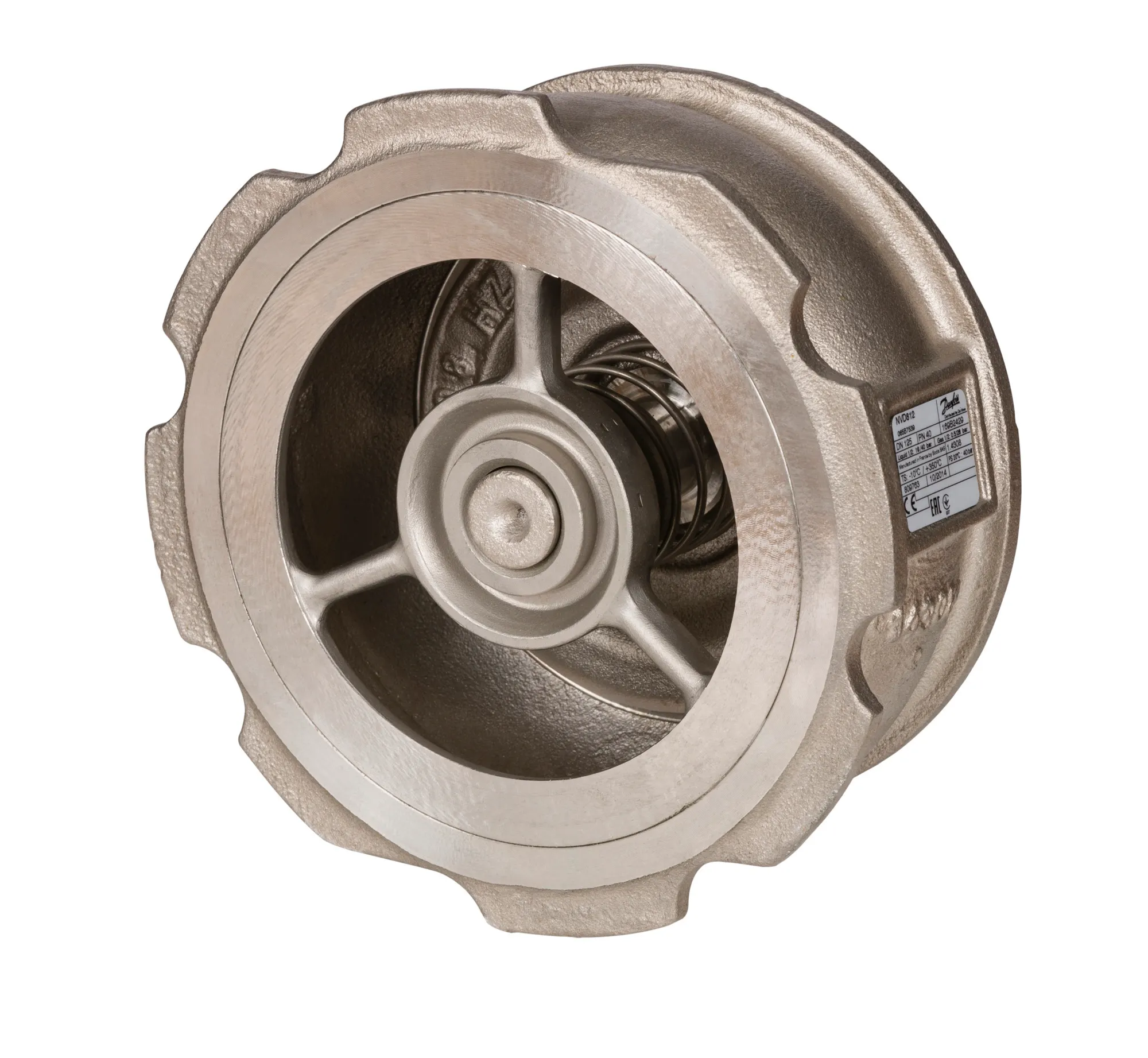

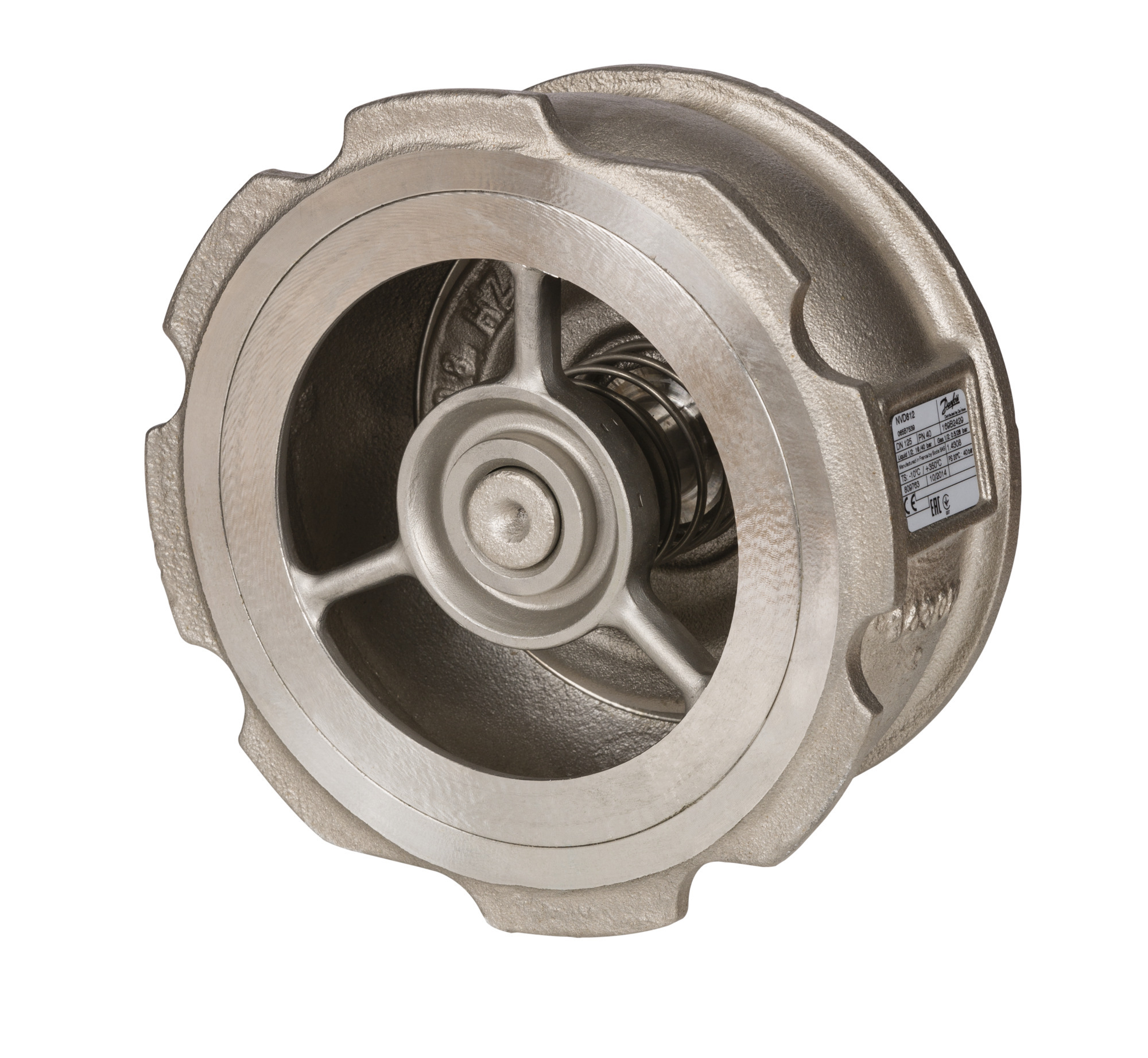

065B7540 Danfoss: NVD 812 PN40 DN150
Gross weight
14.229 Kilogram
Net weight
14.227 Kilogram
Volume
9.832 Liter
EAN
5710104065991
Application
District Heating
China RoHS compliance
Out of scope
Connection types
Between Flange
Contain batteries
No
Description
NVD 812 PN40 DN150
Diameter [mm]
150 mm
EU RoHS compliance
Out of scope
Function
Non-return
Kvs values [mÂł/h]
370 mÂł/h
Label product
Yes
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
350 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Medium alternative 2
Domestic water
Mounting orientation
free
Number of ports
2
Operation type
Self-operating
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Pressure nominal [bar]
40 bar
Product group
Butterfly valves
REACH Candidate List substances
No
Type
NVD 812
UK RoHS compliance
Out of scope
Valve body material
Stainless steel
Valve size
DN 150
Valve type
Check Valve
