065B7746
Part Number: 065B7746
Product Information
Extended Description

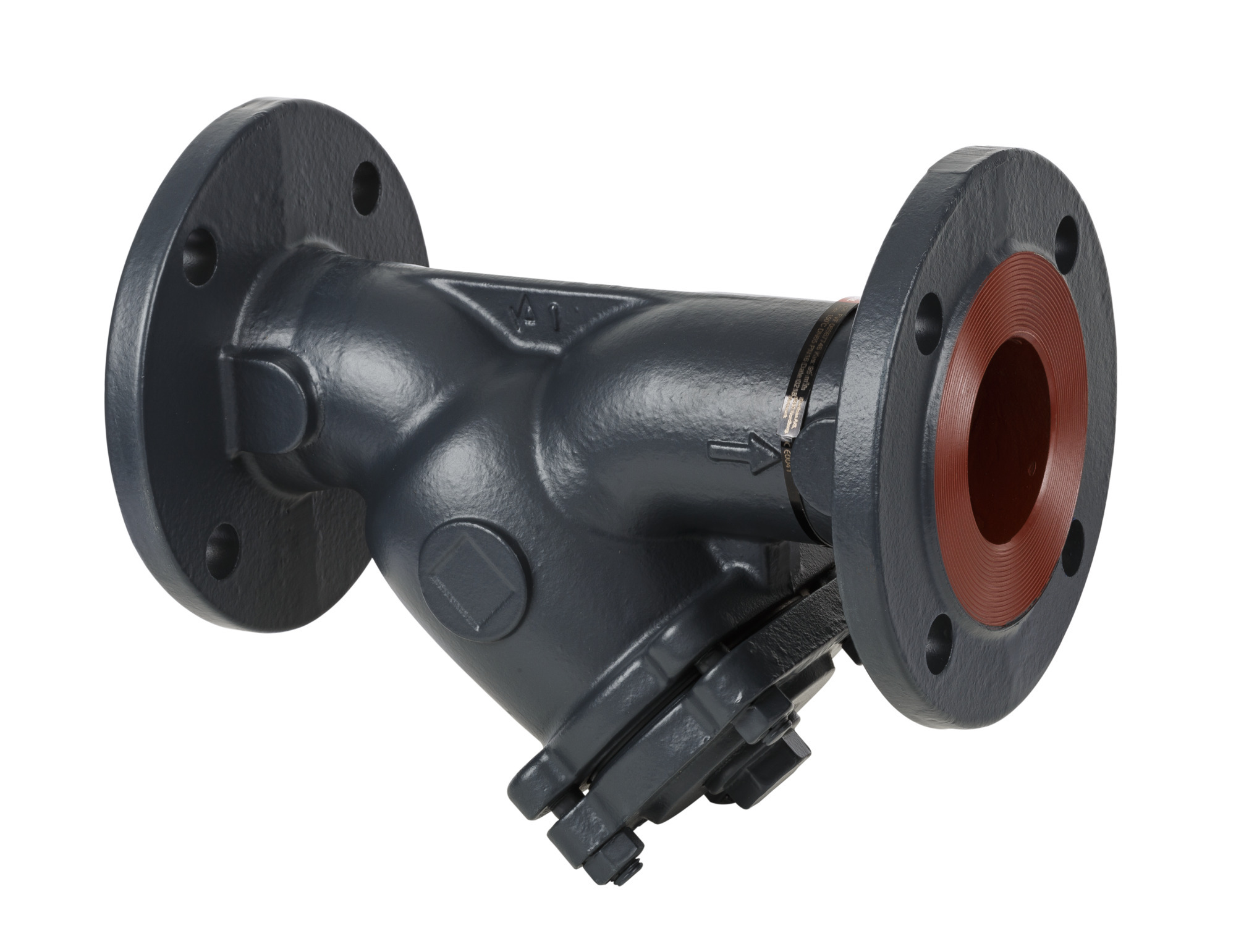

065B7746 Danfoss: FVF DN65 PN16 with Plug
Gross weight
12.172 Kilogram
Net weight
12 Kilogram
Volume
19.065 Liter
EAN
5702421555248
Approval standard
DIN EN 1092-2
China RoHS compliance
Out of scope
Connection size
65
Connection types
Flange
Contain batteries
No
Description
FVF DN65 PN16 with Plug
Diameter [mm]
65 mm
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
95 mÂł/h
Label product
Yes
Material
Grey cast iron EN-GJL-250 (GG25)
Media temperature [°C] [Max]
300 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Mesh size [mm]
0.87 mm
Number of meshes [n/cm²]
64
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Auxiliary Products
REACH Candidate List substances
No
Size
DN 65
Strainer type
With plug
Type
FVF
UK RoHS compliance
Out of scope
065B7816
Screens DN65 PN16-25 Normal+gasket
065B7830
Screens DN65 PN16-25 Fine+gasket
065B7794
FVF-M, Magnetic Insert DN65
065B7801
Drain ball valve FVF-B brass body, DN 65-300
065B7890
FVF gasket
FVF
FVF
Danfoss EU BF273686516767en-001001.06
Danfoss UK 220928EN0807101.01
Strainer - FVF - DN65 - 065B7745, 065B7746, 065B7747, 065B7748, 065B7775, 065B7776, 065B7777, 065B7778
FVF_DN65_STEP
FVF_DN65_3D
FVF strainer with plug
FVF strainer with plug
FVF_DN65_2D
Strainer - FVF - DN65 - 065B7745, 065B7746, 065B7747, 065B7748, 065B7775, 065B7776, 065B7777, 065B7778
FVF_DN15-300_PN16_RFA
