065B7747
Part Number: 065B7747
Product Information
Extended Description

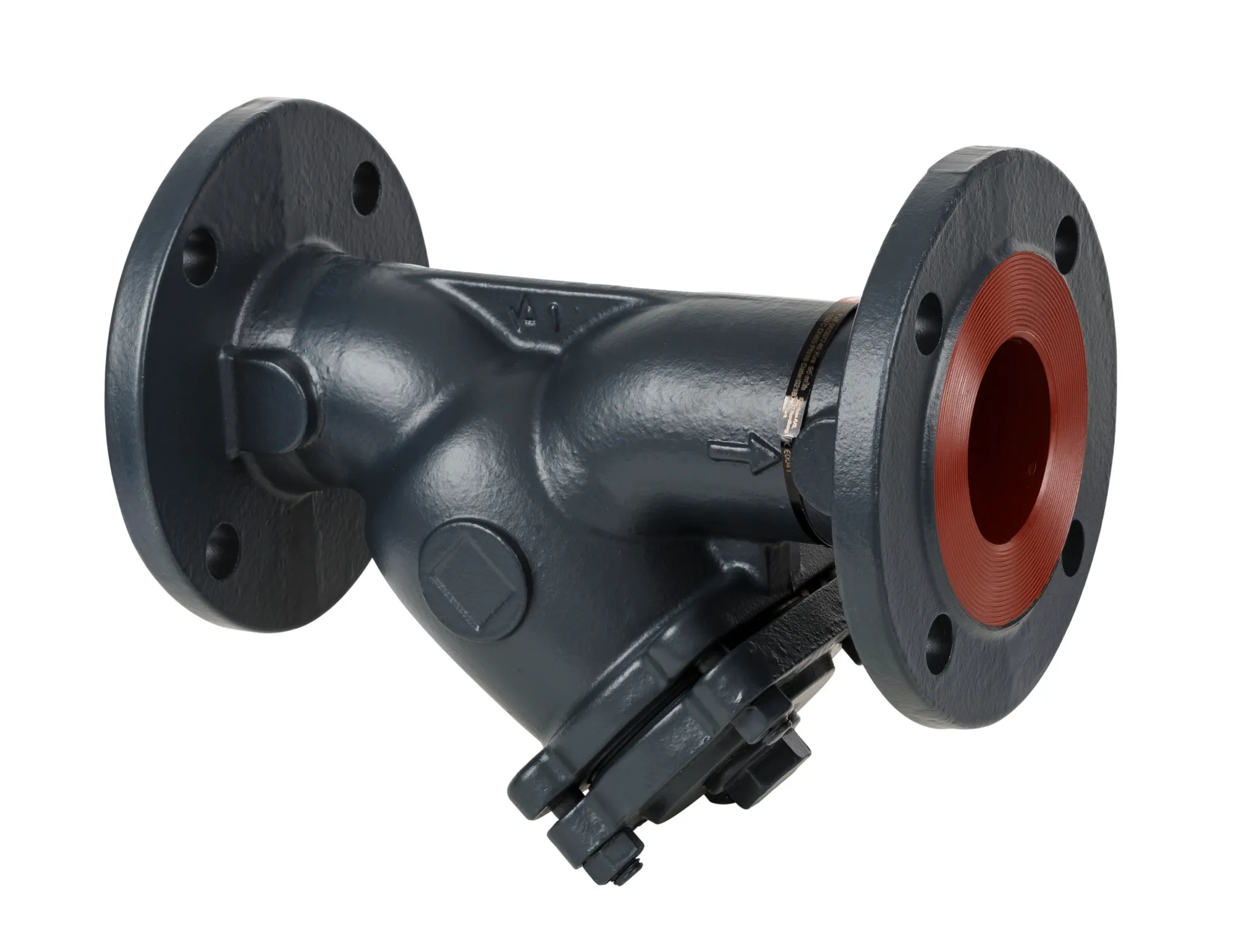

065B7747 Danfoss: FVF DN80 PN16 with Plug
Gross weight
16.322 Kilogram
Net weight
16.014 Kilogram
Volume
24.316 Liter
EAN
5702421555255
Approval standard
DIN EN 1092-2
China RoHS compliance
Out of scope
Connection size
80
Connection types
Flange
Contain batteries
No
Description
FVF DN80 PN16 with Plug
Diameter [mm]
80 mm
EU RoHS compliance
Out of scope
Kvs values [m³/h]
140 m³/h
Label product
Yes
Material
Grey cast iron EN-GJL-250 (GG25)
Media temperature [°C] [Max]
300 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Mesh size [mm]
1.18 mm
Number of meshes [n/cm²]
25
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Auxiliary Products
REACH Candidate List substances
No
Size
DN 80
Strainer type
With plug
Type
FVF
UK RoHS compliance
Out of scope
065B7817
Screens DN80 PN16-25 Normal+gasket
065B7831
Screens DN80 PN16-25 Fine+gasket
065B7795
FVF-M, Magnetic Insert DN80
065B7801
Drain ball valve FVF-B brass body, DN 65-300
065B7891
FVF gasket
FVF
FVF
Danfoss EU BF273686516767en-001001.06
Danfoss UK 220928EN0807101.01
Strainer - FVF - DN65 - 065B7745, 065B7746, 065B7747, 065B7748, 065B7775, 065B7776, 065B7777, 065B7778
FVF strainer with plug
3D STEP CAD model of FVF - 065B7747
3D DWG CAD drawing of FVF - 065B7747
FVF strainer with plug
Strainer - FVF - DN65 - 065B7745, 065B7746, 065B7747, 065B7748, 065B7775, 065B7776, 065B7777, 065B7778
2D DWG CAD drawing of FVF - 065B7747
FVF_DN15-300_PN16_RFA
