065B7760
Part Number: 065B7760
Product Information
Extended Description

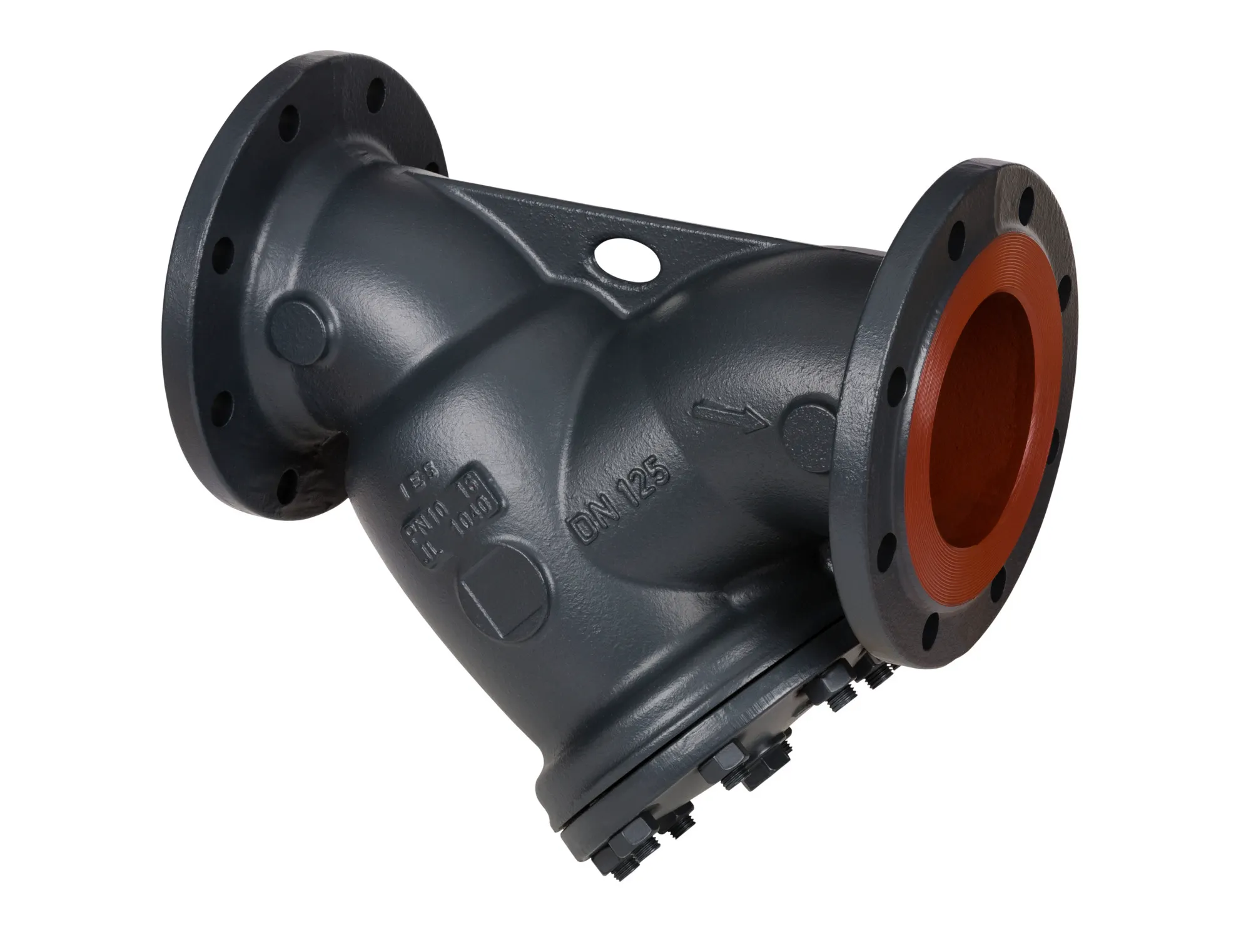

065B7760 Danfoss: FVF DN65 PN16 with Plug, 2 holes, I-p
Gross weight
14.708 Kilogram
Net weight
12 Kilogram
Volume
28 Liter
EAN
5702421555705
Approval standard
DIN EN 1092-2
China RoHS compliance
Out of scope
Connection size
65
Connection types
Flange
Contain batteries
No
Description
FVF DN65 PN16 with Plug, 2 holes, I-p
Diameter [mm]
65 mm
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
95 mÂł/h
Material
Grey cast iron EN-GJL-250 (GG25)
Media temperature [°C] [Max]
300 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Mesh size [mm]
0.87 mm
Number of meshes [n/cm²]
64
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Auxiliary Products
REACH Candidate List substances
No
Size
DN 65
Strainer type
With plug
Type
FVF
UK RoHS compliance
Out of scope
FVF
FVF
Danfoss EU BF273686516767en-001001.06
Danfoss UK 220928EN0807101.01
FVF strainer with plug
FVF_DN15-300_PN16_RFA
Strainer - FVF - DN65 - 065B7745, 065B7746, 065B7747, 065B7748, 065B7775, 065B7776, 065B7777, 065B7778
Strainer - FVF - DN65 - 065B7745, 065B7746, 065B7747, 065B7748, 065B7775, 065B7776, 065B7777, 065B7778
FVF strainer with plug
