065B7767
Part Number: 065B7767
Product Information
Extended Description

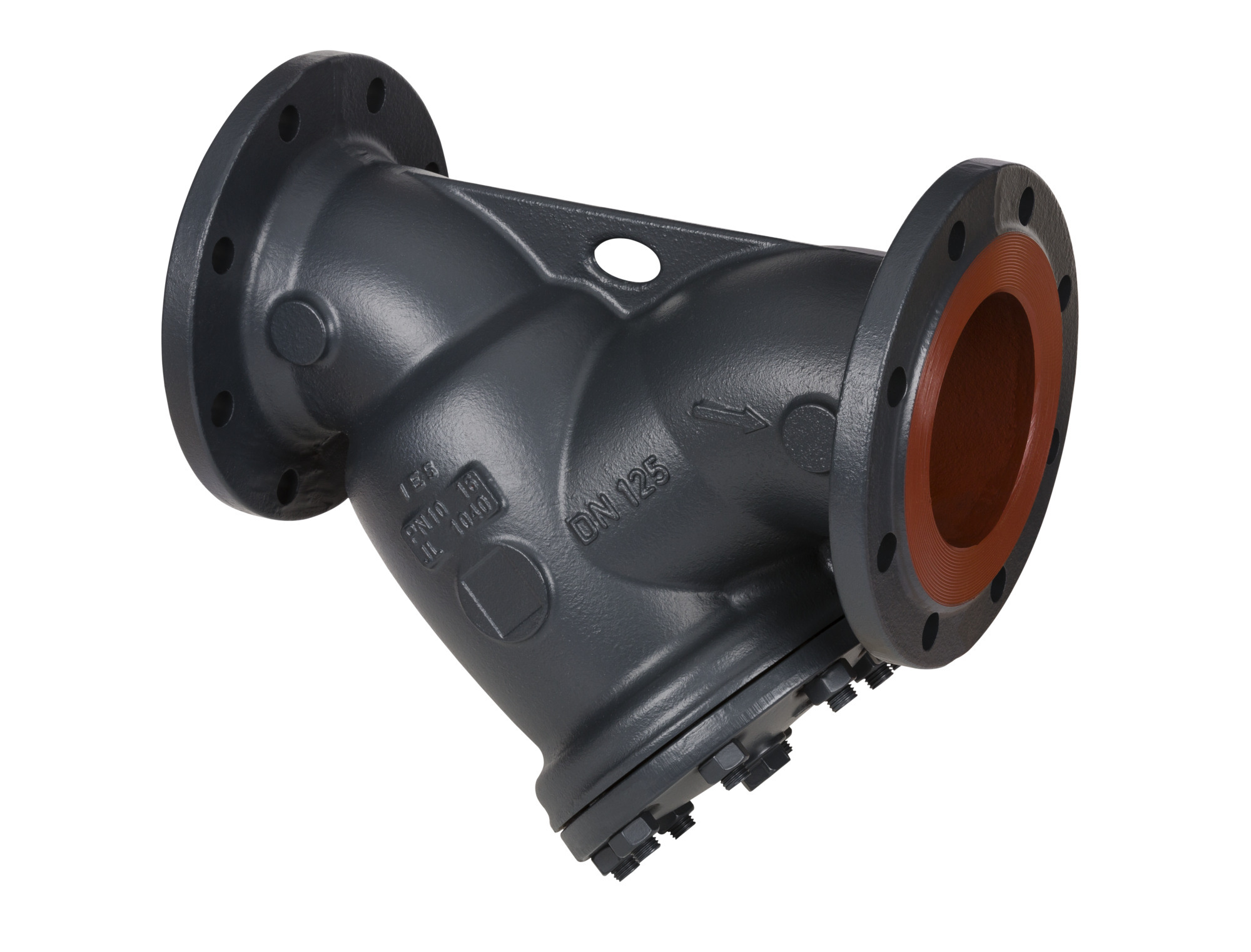

065B7767 Danfoss: FVF DN125 PN16 Plug-Special Screen, I-p
Gross weight
44.5 Kilogram
Net weight
37 Kilogram
Volume
89.28 Liter
EAN
5702421555774
Approval standard
DIN EN 1092-2
China RoHS compliance
Out of scope
Connection size
125
Connection types
Flange
Contain batteries
No
Description
FVF DN125 PN16 Plug-Special Screen, I-p
Diameter [mm]
125 mm
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
326.4 mÂł/h
Material
Grey cast iron EN-GJL-250 (GG25)
Media temperature [°C] [Max]
300 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Mesh size [mm]
0.4 mm
Number of meshes [n/cm²]
280
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Auxiliary Products
REACH Candidate List substances
No
Size
DN 125
Strainer type
With plug
Type
FVF
UK RoHS compliance
Out of scope
065B7819
Screens DN125 PN16-25 Normal+gasket
065B7833
Screens DN125 PN16-25 Fine+gasket
065B7796
FVF-M, Magnetic Insert DN100-125
065B7893
FVF gasket
