065B8234
Part Number: 065B8234
Product Information
Extended Description

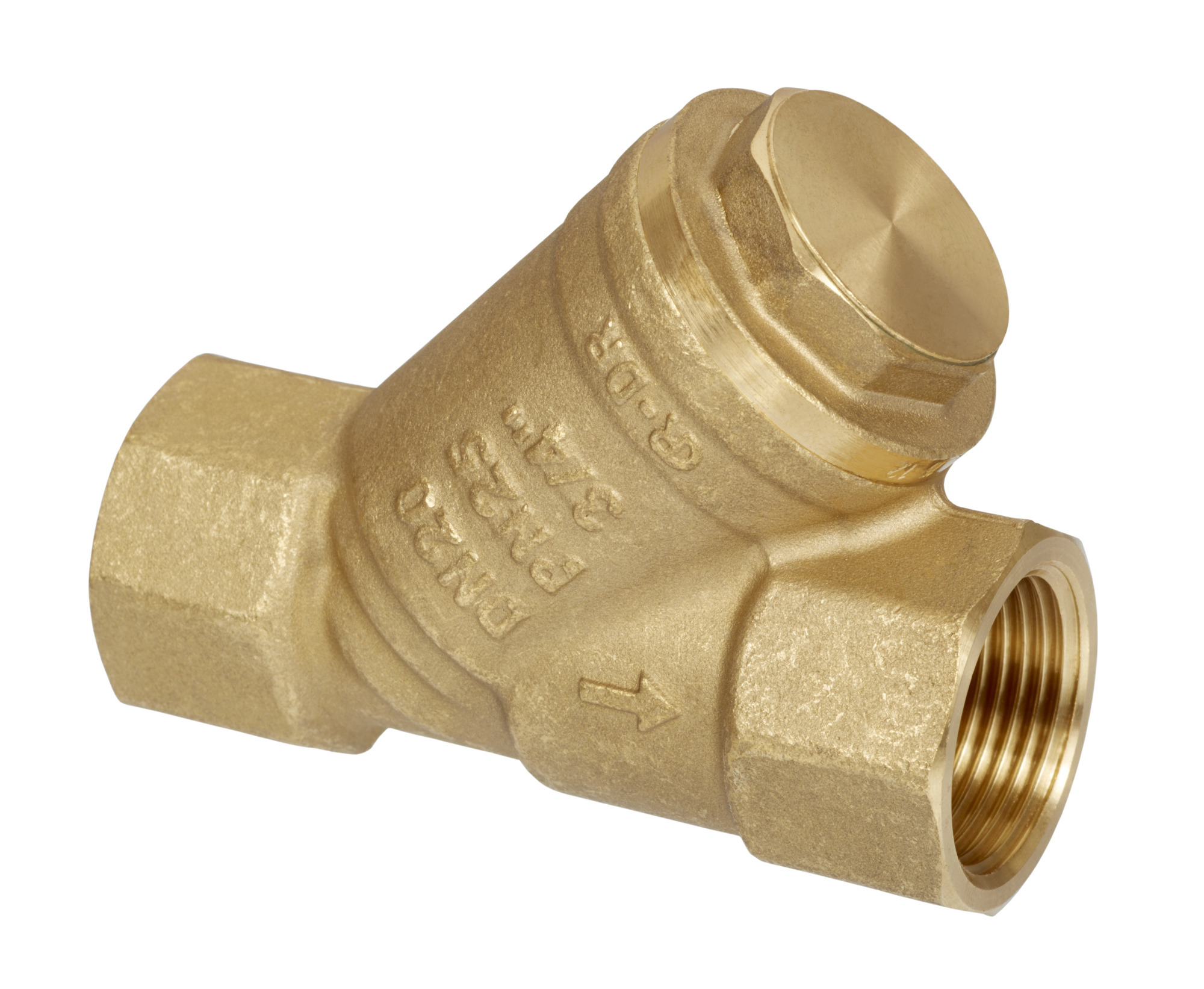

065B8234 Danfoss: FVR strainer DN10 Rp3/8
Gross weight
0.203 Kilogram
Net weight
0.2 Kilogram
Volume
0.099 Liter
EAN
5710104042190
Approval standard
ISO 7/1
Connection size
Rp 3/8
Connection types
Internal thread
Contain batteries
No
Description
FVR strainer DN10 Rp3/8
Diameter [mm]
10 mm
Kvs values [mÂł/h]
3 mÂł/h
Label product
Yes
Material
DZR brass CuZn36Pb2As
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Mesh size [mm]
0.5 mm
Number of meshes [n/cm²]
50
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
25 bar
Product group
Auxiliary Products
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5022516a-2a85-4d12-8da0-b33e64f9a0c8
SCIP dossier product name
065B8234
Size
DN 10
Strainer type
With plug
Type
FVR
065B8247
Screen and O-ring for FVR/FVR-D DN10-15
