065B8240
Part Number: 065B8240
Product Information
Extended Description

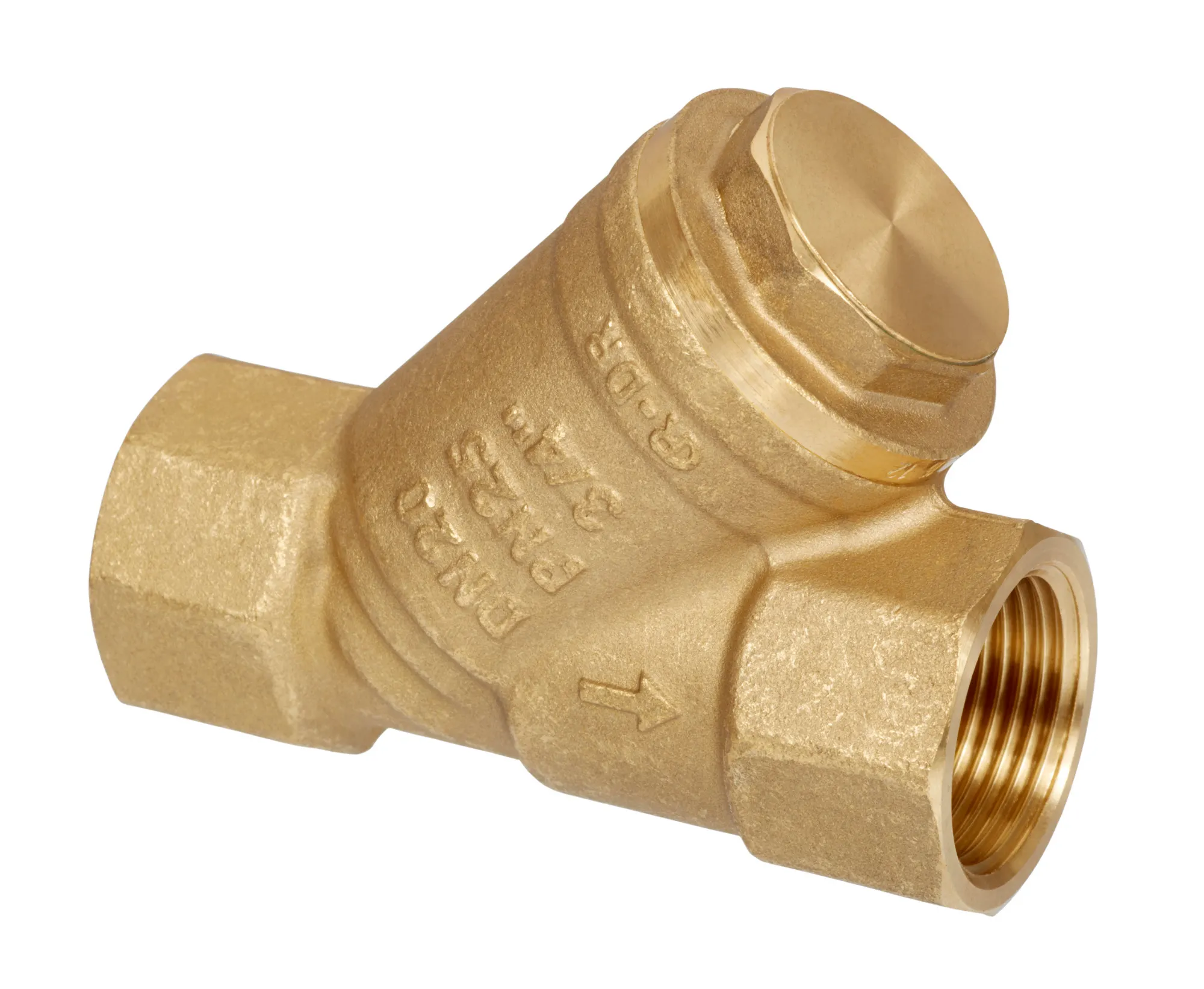

065B8240 Danfoss: FVR strainer DN50 Rp2
Gross weight
1.606 Kilogram
Net weight
1.532 Kilogram
Volume
1.37 Liter
EAN
5710104042312
Approval standard
ISO 7/1
Connection size
Rp 2
Connection types
Internal thread
Contain batteries
No
Description
FVR strainer DN50 Rp2
Diameter [mm]
50 mm
Kvs values [mÂł/h]
36 mÂł/h
Label product
Yes
Material
DZR brass CuZn36Pb2As
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
-10 °C
Medium alternative
Glycolic water up to 50%
Mesh size [mm]
0.5 mm
Number of meshes [n/cm²]
50
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
25 bar
Product group
Auxiliary Products
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5022516a-2a85-4d12-8da0-b33e64f9a0c8
SCIP dossier product name
065B8240
Size
DN 50
Strainer type
With plug
Type
FVR
065B8252
Screen and O-ring for FVR/FVR-D DN50
