065B8283
Part Number: 065B8283
Product Information
Extended Description

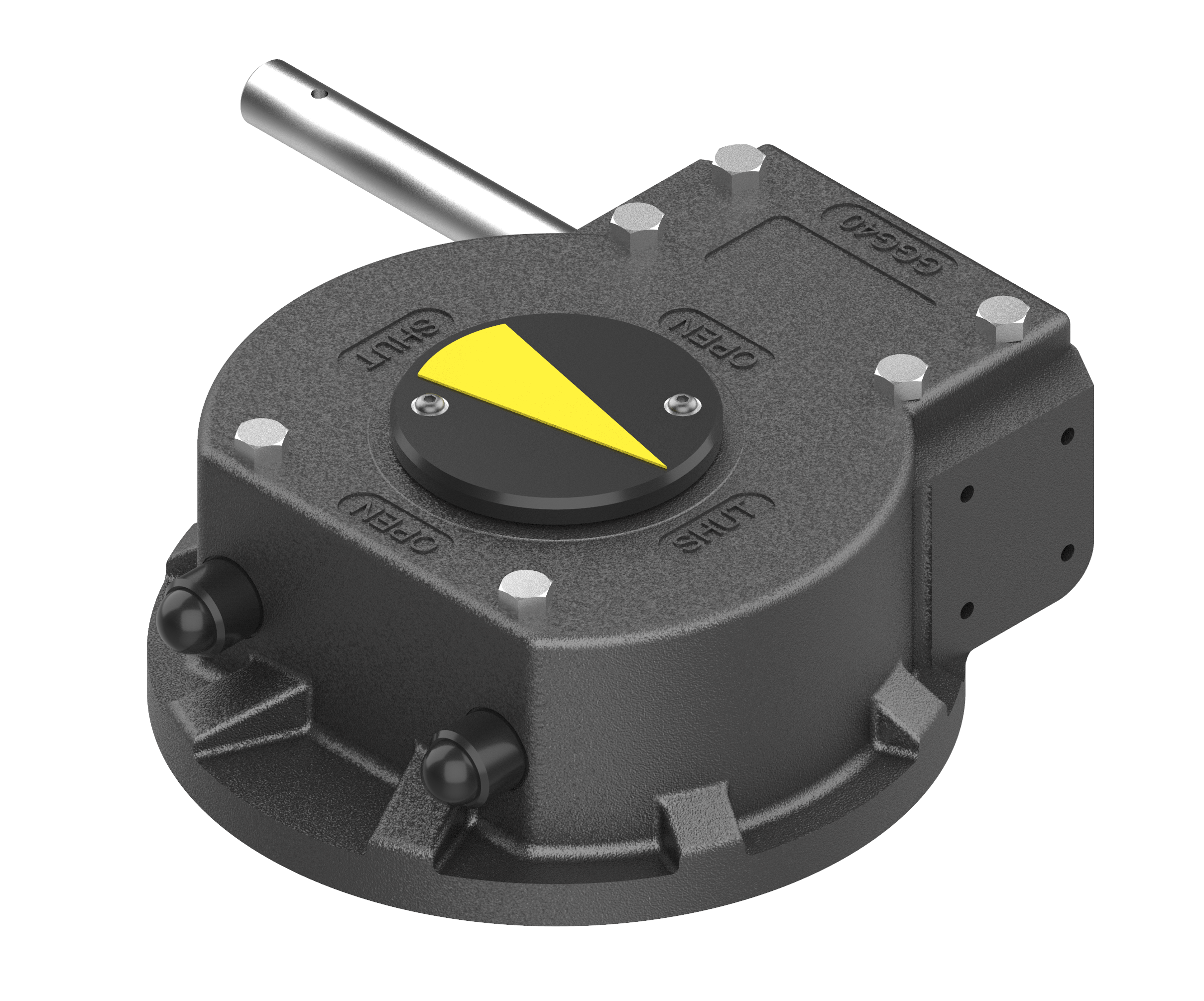

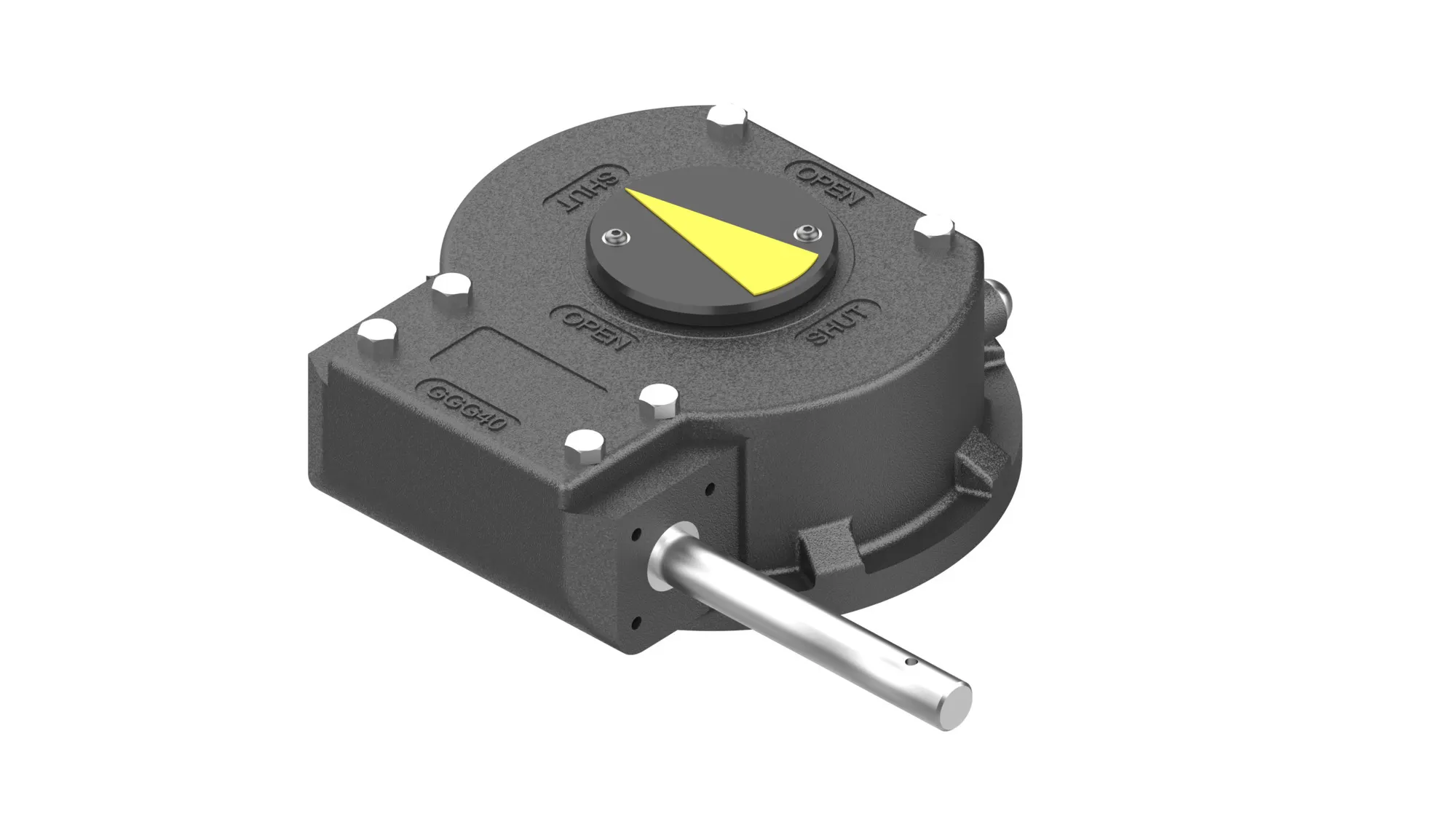

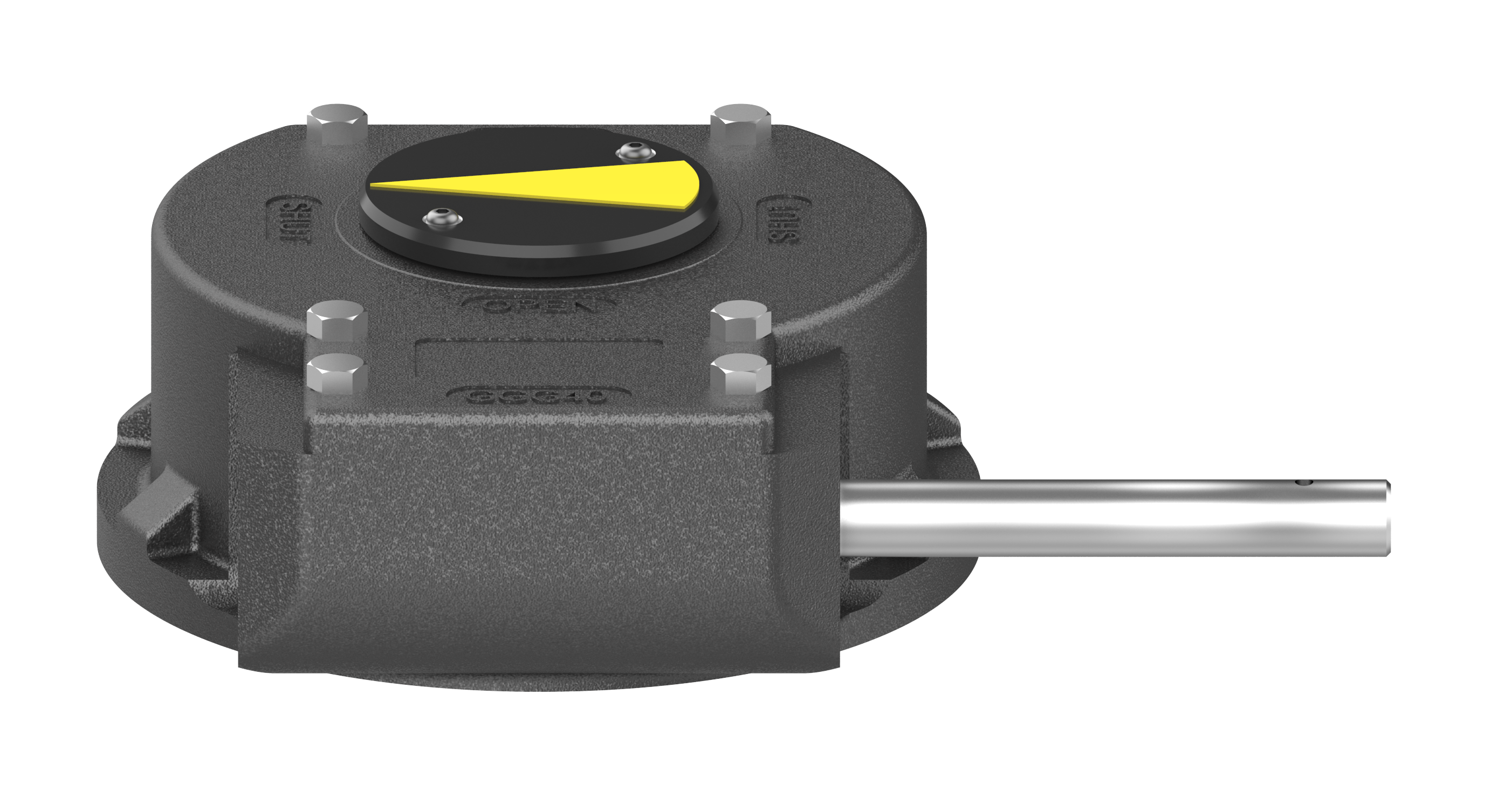

065B8283 Danfoss: SBFV Gearbox DN350-400
Gross weight
23 Kilogram
Net weight
23 Kilogram
EAN
5702428949934
Ambient temperature [=C2=B0C] [max]
110 =C2=B0C
Ambient temperature [=C2=B0C] [min]
-25 =C2=B0C
Application
Heating and cooling
Approval standard
2,EN12266-1,PED 97/23/EEC
Body material
Cast iron / Ductile iron
Connection types
Gear Flange
Contain batteries
No
Description
SBFV Gearbox DN350-400
Function
On/off
Gear flange type
F14/F16
Grade of enclosure
IP68
Mounting orientation
All
Operating torque [Nm]
3000 N-m
Operation type
Handwheel
Position indicator
Yes
Product group
Butterfly valves accessories
REACH Candidate List substances
No
Rotation angle [=C2=B0]
90 =C2=B0
Storage temperature [=C2=B0C] [Max]
110 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Type
Non-standard Butterfly valves accessories
