065B8284
Part Number: 065B8284
Product Information
Extended Description

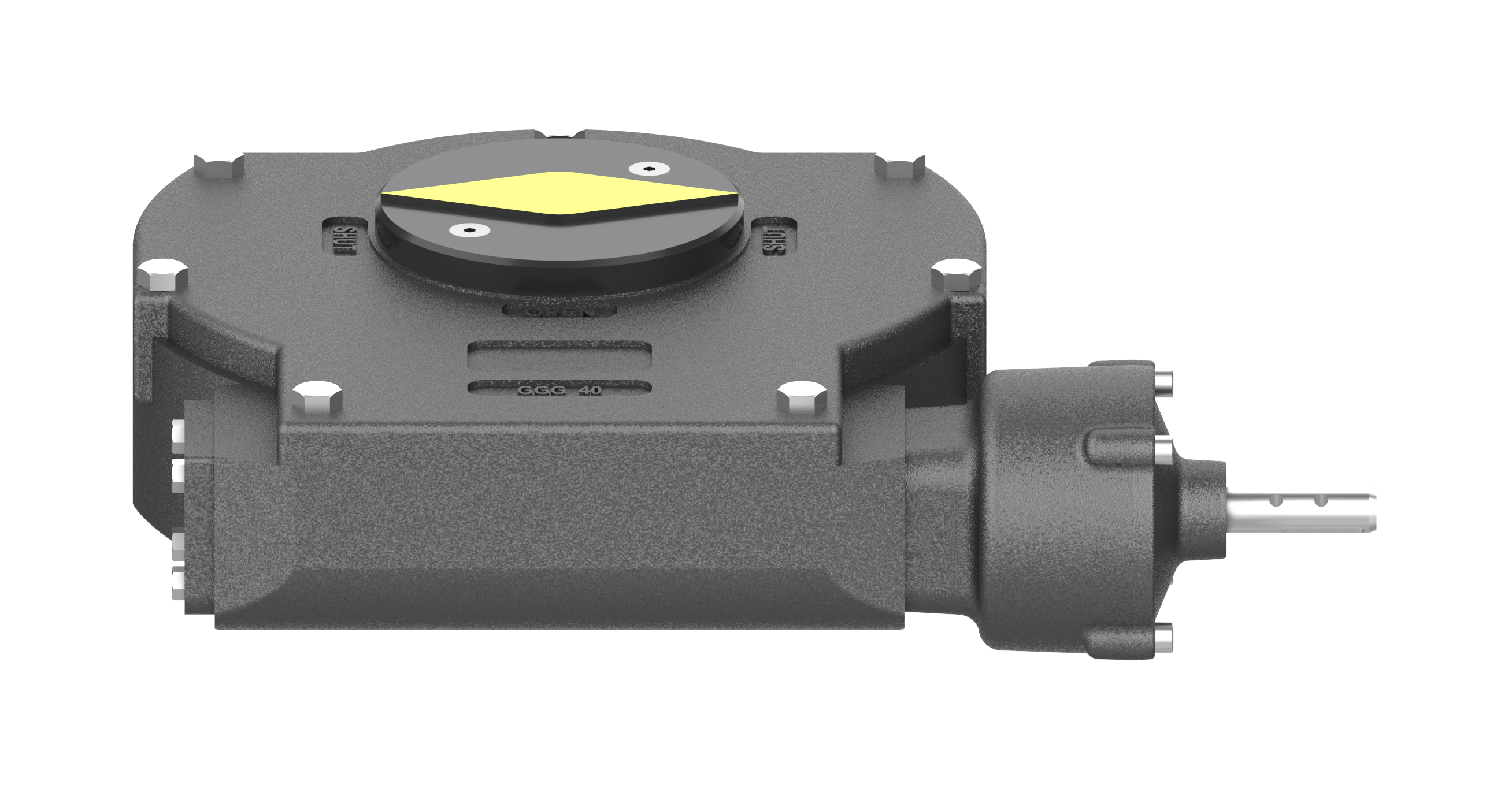

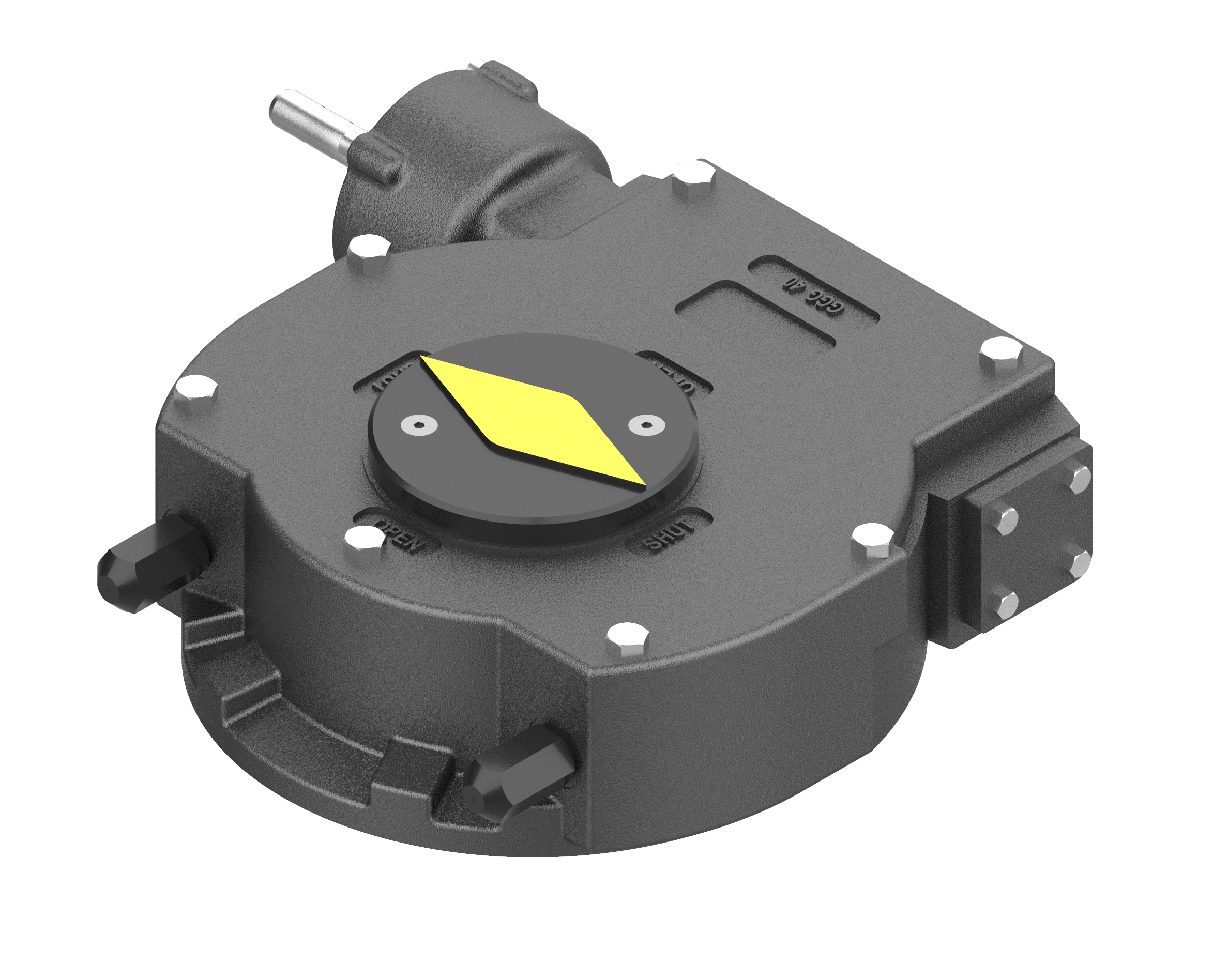

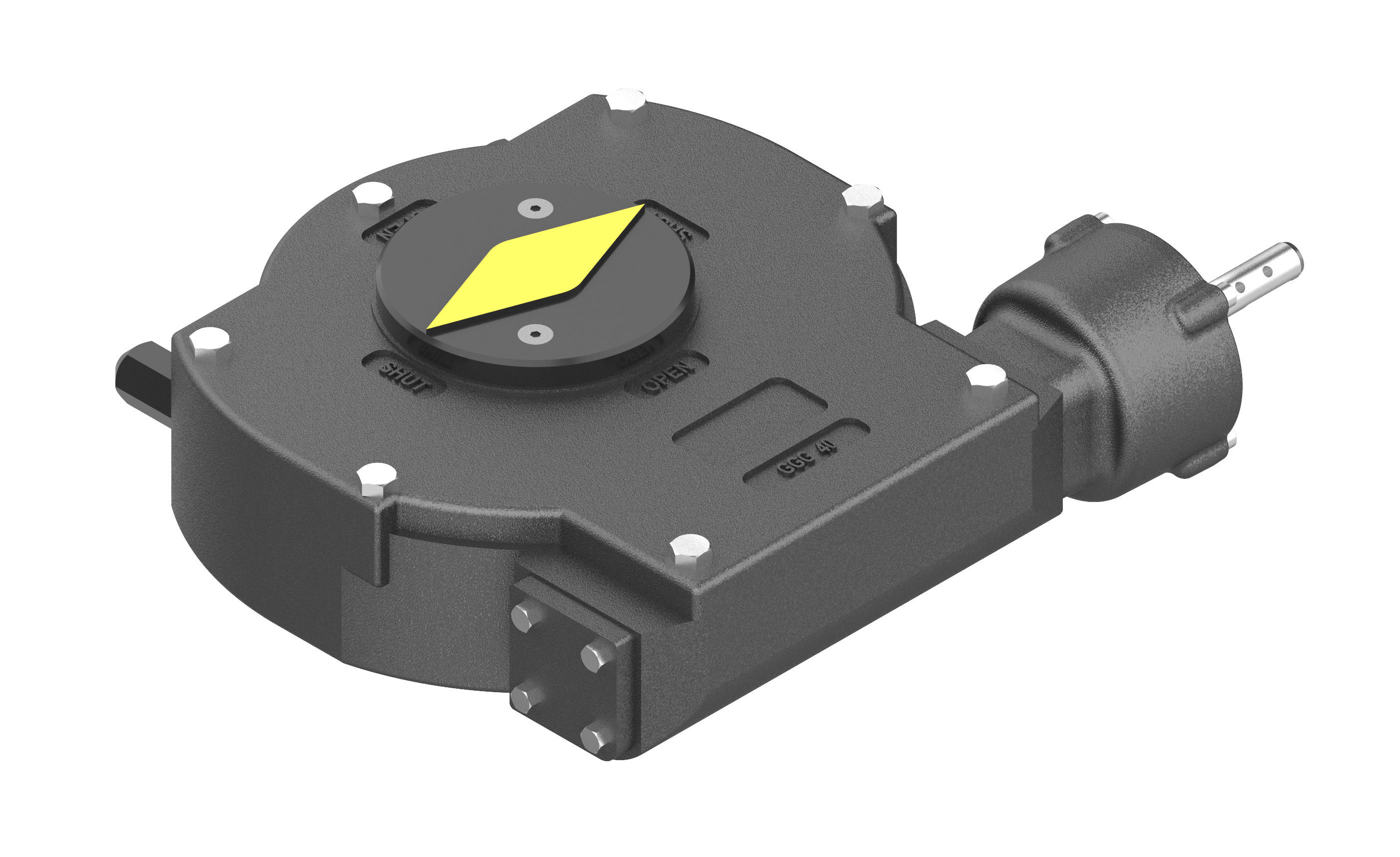

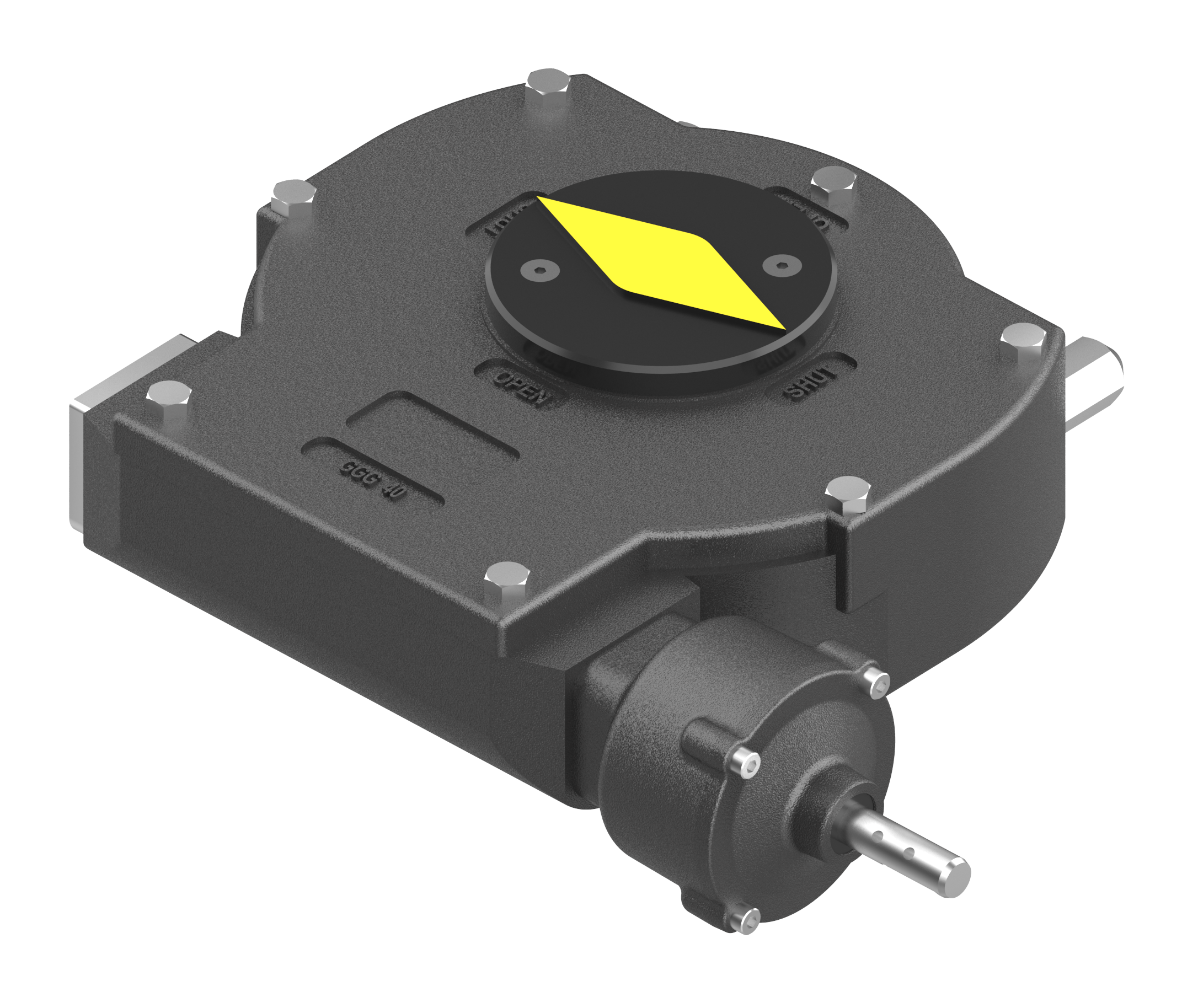

065B8284 Danfoss: SBFV Gearbox DN450-600
Gross weight
32 Kilogram
Net weight
32 Kilogram
EAN
5702428949941
Ambient temperature [=C2=B0C] [max]
110 =C2=B0C
Ambient temperature [=C2=B0C] [min]
-25 =C2=B0C
Application
Heating and cooling
Approval standard
2,EN12266-1,PED 97/23/EEC
Body material
Cast iron / Ductile iron
Connection types
Gear Flange
Contain batteries
No
Description
SBFV Gearbox DN450-600
Function
On/off
Gear flange type
F16/F25
Grade of enclosure
IP68
Mounting orientation
All
Operating torque [Nm]
6500 N-m
Operation type
Handwheel
Position indicator
Yes
Product group
Ball valves accessories
REACH Candidate List substances
No
Rotation angle [=C2=B0]
90 =C2=B0
Storage temperature [=C2=B0C] [Max]
110 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Type
Non-standard Ball valves accessories
