065F0017
Part Number: 065F0017
Product Information
Extended Description

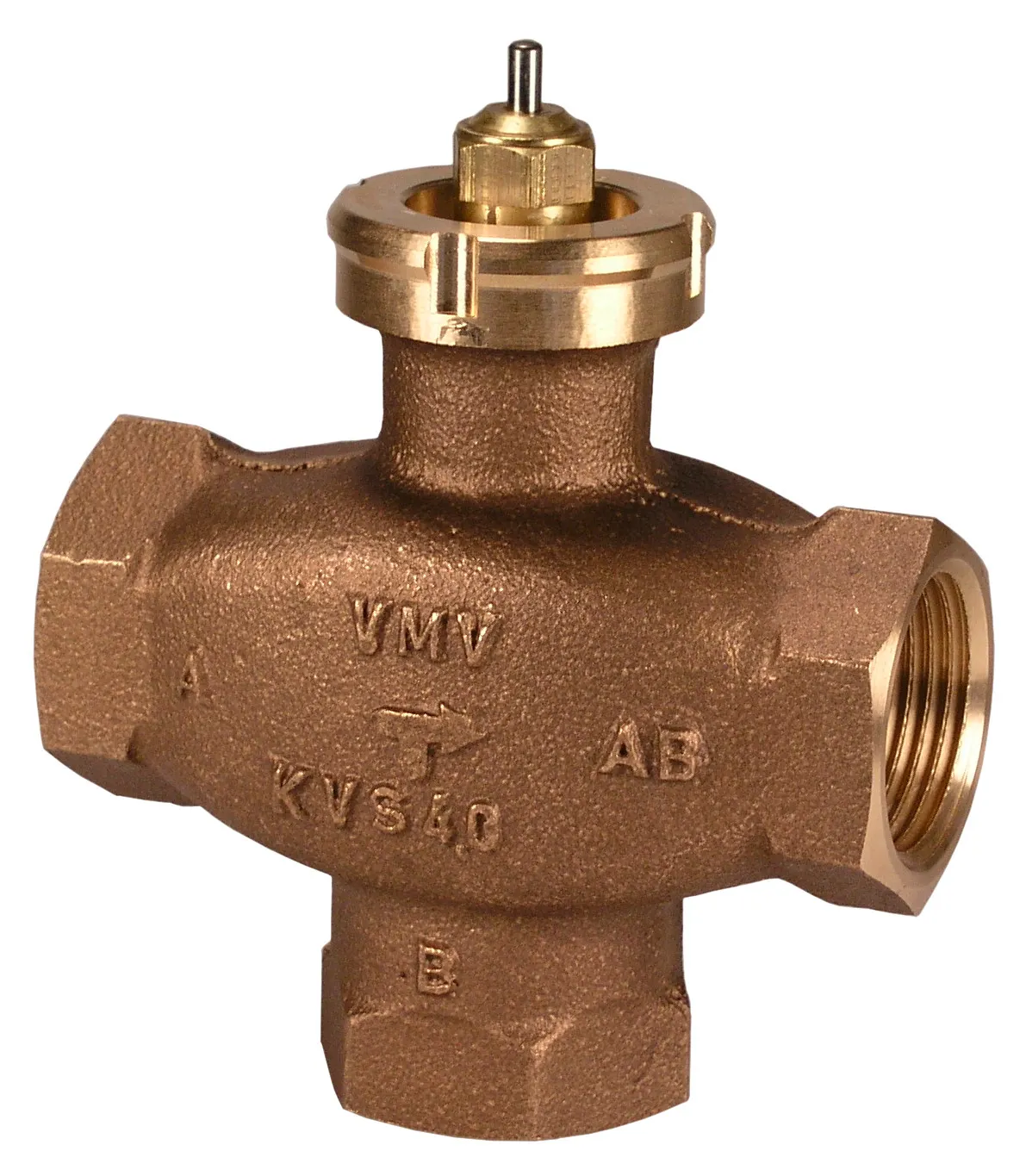

065F0017 Danfoss: VMV PN16 15/2,5 3-way int RAV neck, I-p
Gross weight
0.484 Kilogram
Net weight
0.483 Kilogram
Volume
0.491 Liter
Application
Heating and cooling
Cavitation factor
0.5
China RoHS compliance
Out of scope
Closing differential pressure (diverting) [bar] [Max]
0.6 bar
Closing differential pressure (mixing) [bar] [Max]
0.6 bar
Connection size
Rp 1/2
Connection type to valve
RAV
Connection types
Internal thread
Contain batteries
No
Control ratio
1:30
Description
VMV PN16 15/2,5 3-way int RAV neck, I-p
Diameter [mm]
15 mm
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Approx. linear
Function
Mixing valve
Function 2
Diverting valve
Kvs values [mÂł/h]
2.5 mÂł/h
Leakage bypass port max. [% Kvs]
0.1 %
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
3
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle material
Stainless steel
Spindle position
B-AB (Normal open)
Stroke [mm]
2 mm
Type
VMV RAV
UK RoHS compliance
Out of scope
Valve body material
Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material
EPDM
Valve seat material
Red bronze, mat. No. 2.1096.1 (RG5)
Valve size
DN 15
