065F0102
Part Number: 065F0102
Product Information
Extended Description

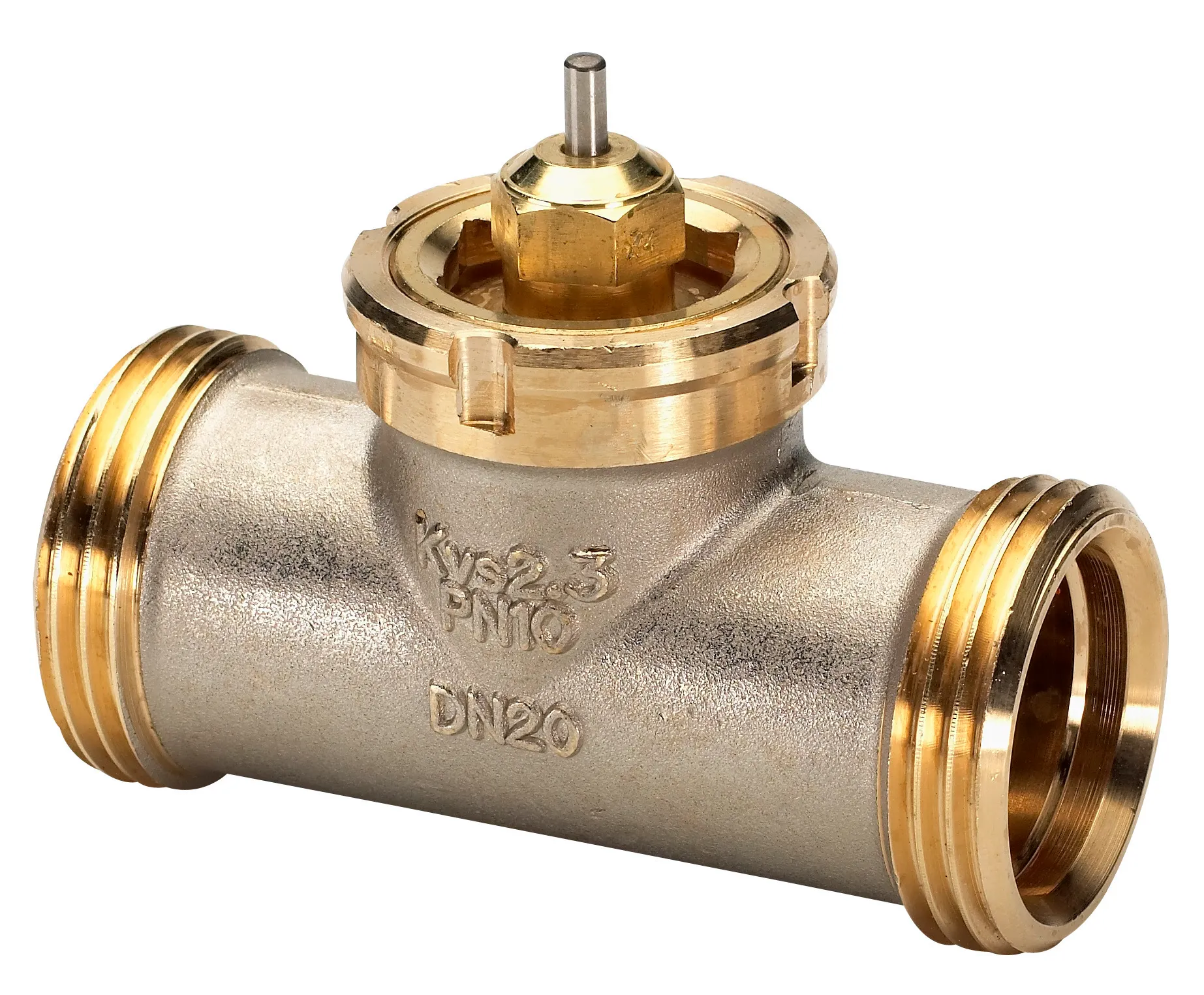

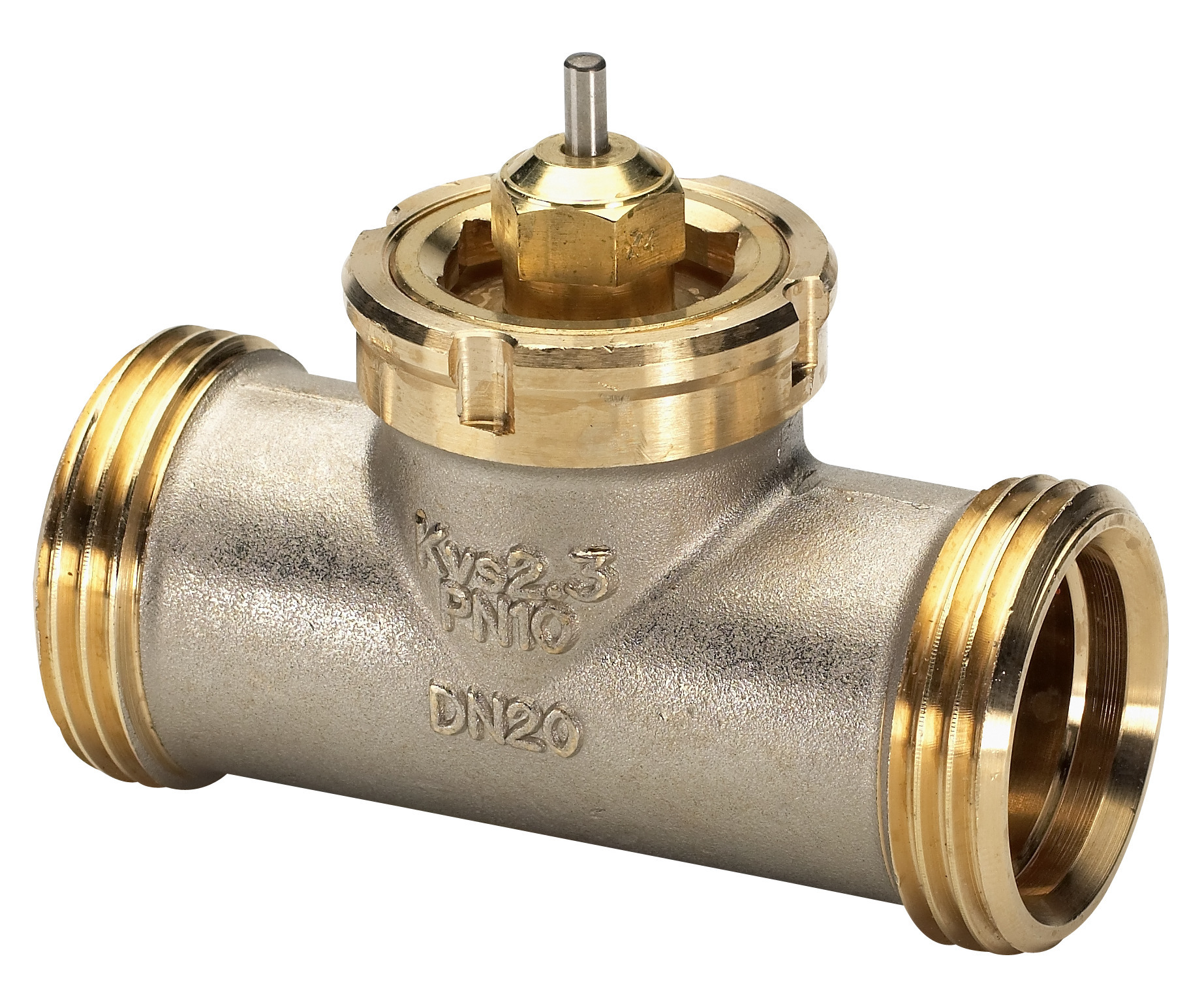

065F0102 Danfoss: VMT 1/2# STRAIGHT SOLDER BRASSVALVE BO
Gross weight
0.364 Kilogram
Net weight
0.364 Kilogram
Application
Heating and cooling
Cavitation factor
0.5
Connection size
15
Connection types
NPT
Contain batteries
No
Description
VMT 1/2# STRAIGHT SOLDER BRASSVALVE BO
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
0.8 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Function
Control valve
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Type
VMT
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 15
013U0070
Accessories, Valves, Gland seal, For valves: RAV; RAVL
013U0476
Union Nuts and Tailpieces, Tailpiece, NPT thread, DN 15
013U0496
Union Nuts and Tailpieces, Union nut, No tailpiece, DN 15
013U8608
Union Nuts and Tailpieces, Tailpiece, solder, DN 15
013U0070
Accessories, Valves, Gland seal, For valves: RAV; RAVL
Making applications future proof, all our knowledge – is now yours
Valve characteristics for motorized valves
Motorized Control Valves for district heating & cooling, heating and HVAC systems
Hydronic Specialties Controls Catalog and Application Guide
VMT
VMT Valve Datasheet
VMT
Actuators pressure flow and temperature
2-way seated valve type VMT 2
