065F0104
Part Number: 065F0104
Product Information
Extended Description

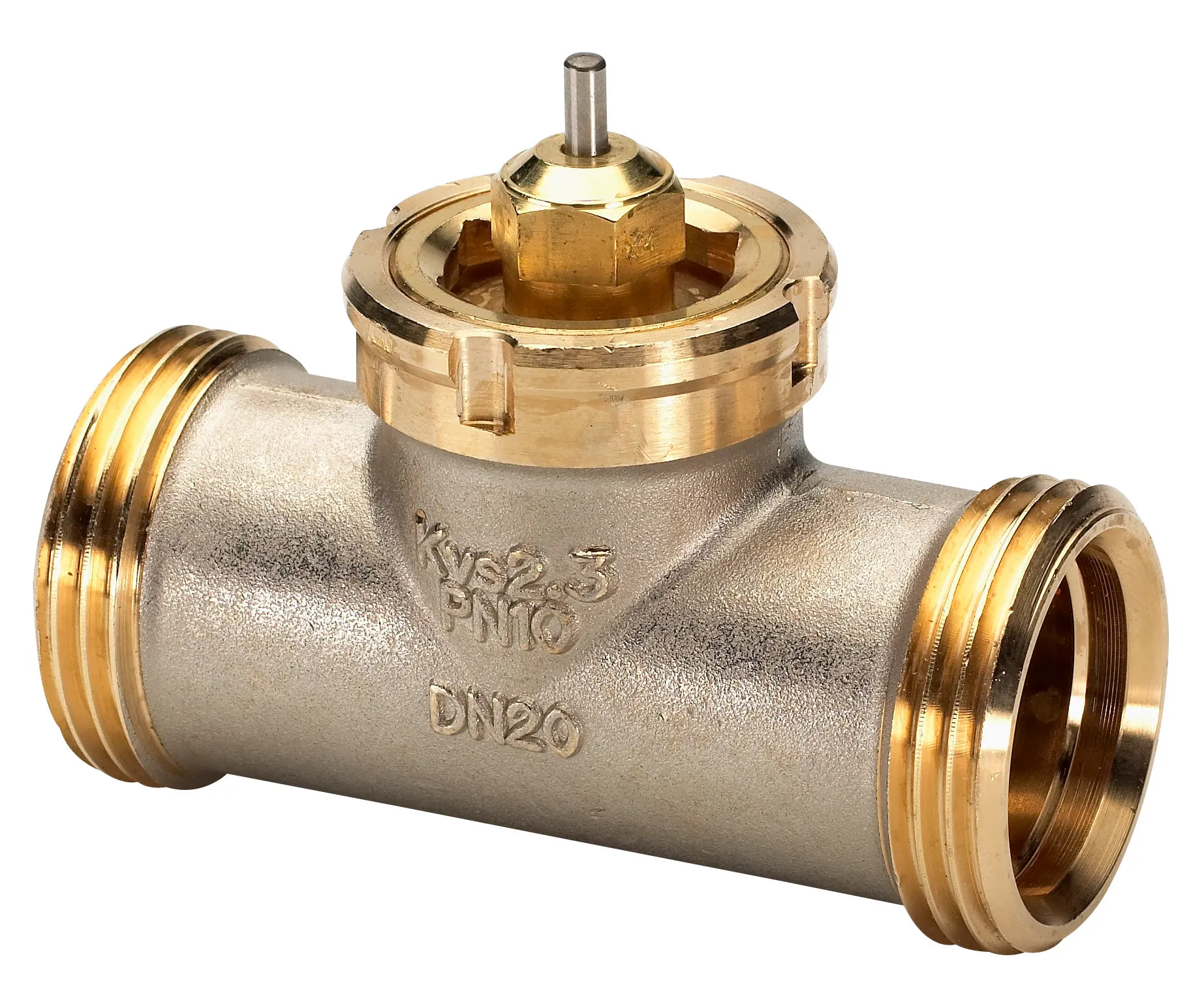

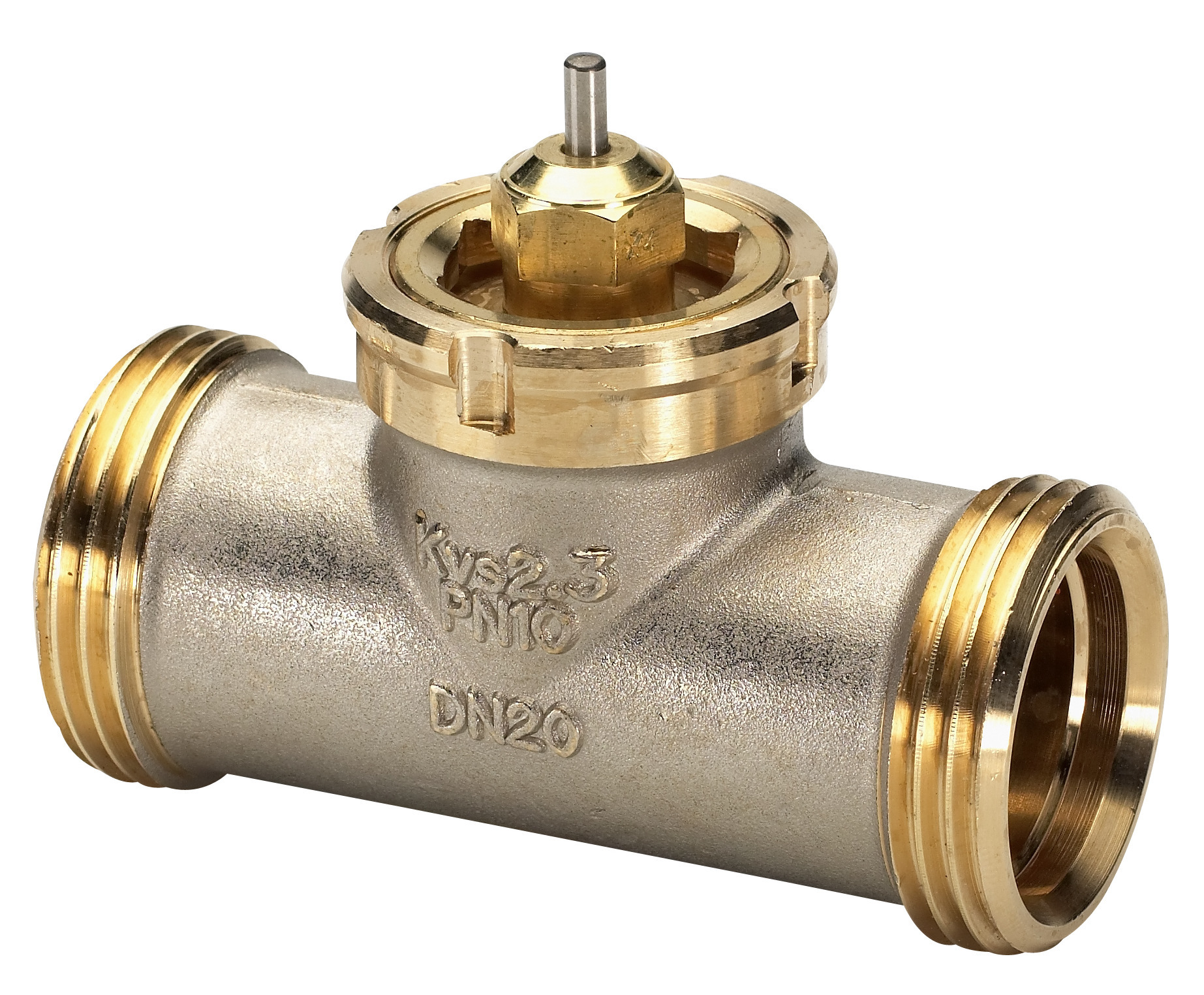

065F0104 Danfoss: VMT 3/4# STRAIGHT SOLDER BRASS VALVE BO
Gross weight
0.551 Kilogram
Net weight
0.551 Kilogram
Application
Heating and cooling
Cavitation factor
0.5
Connection size
20
Connection types
NPT
Contain batteries
No
Description
VMT 3/4# STRAIGHT SOLDER BRASS VALVE BO
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
0.8 bar
Flow characteristic
Linear
Function
Control valve
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
Spindle position
Normally open
Type
VMT
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 20
013U0070
Accessories, Valves, Gland seal, For valves: RAV; RAVL
013U0479
Union Nuts and Tailpieces, Tailpiece, NPT thread, DN 20
013U0499
Union Nuts and Tailpieces, Union nut, No tailpiece, DN 20
013U8609
Union Nuts and Tailpieces, Tailpiece, solder, DN 20
013U0070
Accessories, Valves, Gland seal, For valves: RAV; RAVL
