065F0119

Part Number: 065F0119
065F0119
Manufacturer
Danfoss
Part number
065F0119
Category

Product Information

Extended Description

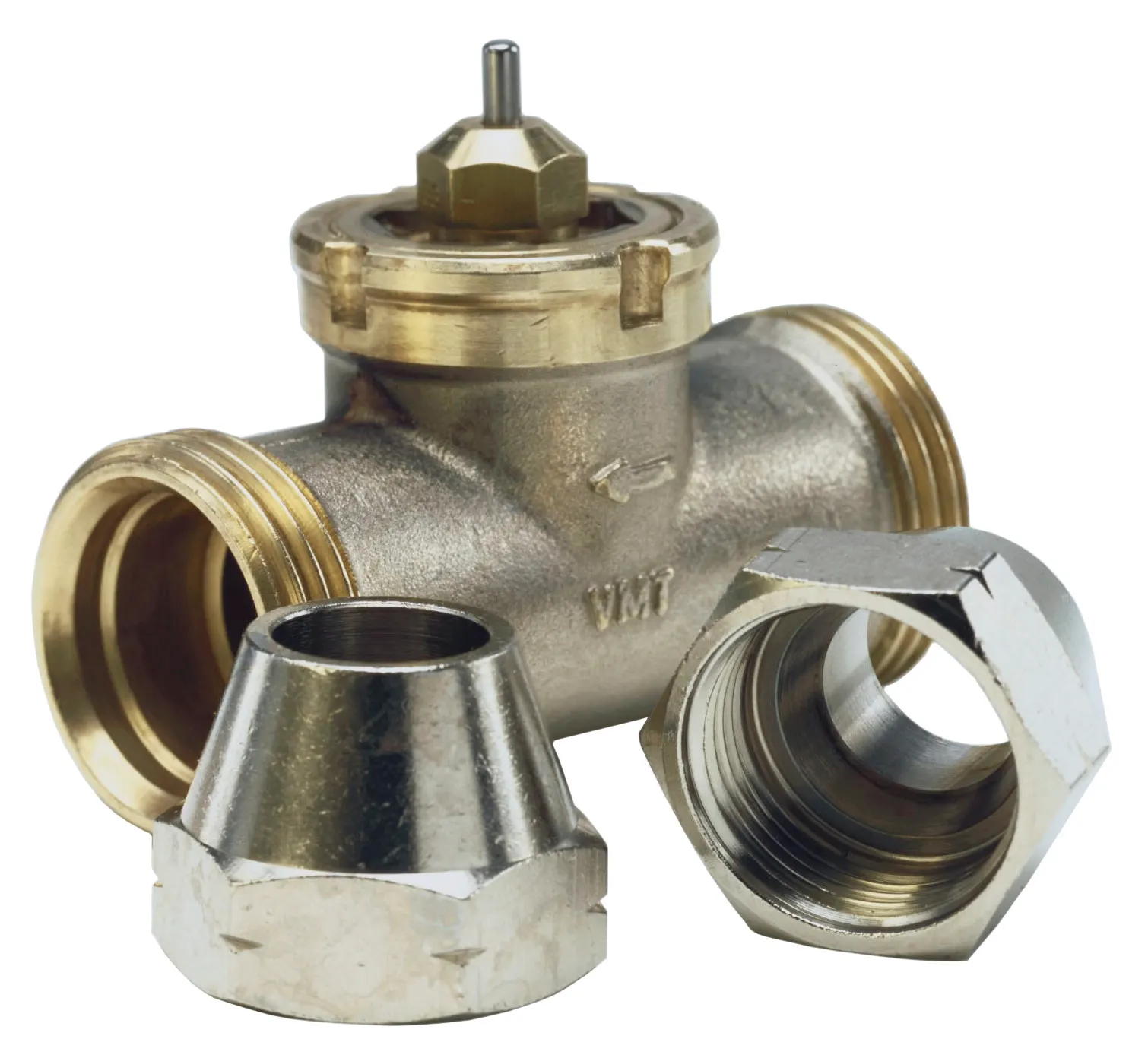

065F0119 Danfoss: VMT PN10 20/5 2-way/2 ext.thr Straight
Gross weight
0.416 Kilogram
Net weight
0.416 Kilogram
Volume
0.44 Liter
EAN
5702420024585
Application
Heating and cooling
Cavitation factor
0.5
Connection size
G 1 A
Connection types
External Thread
Contain batteries
No
Description
VMT PN10 20/5 2-way/2 ext.thr Straight
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
0.2 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Function
Control valve
Kvs values [mÂł/h]
5 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
6
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
73edcdda-c611-4dcb-8a37-064273c1d360
SCIP dossier product name
VMT PN10
Spindle position
Normally open
Stroke [mm]
1.1 mm
Type
VMT
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 20
Valve stem material
CrMo steel
065F0006
Valve st.boxRAV,VMT/A/V,KOVM,AVD(S)A I-p
013U0134
Compression fittings, DN 20, G 1 A
013U0135
Compression fittings, DN 20, G 1 A
