065F1242
Part Number: 065F1242
Product Information
Extended Description

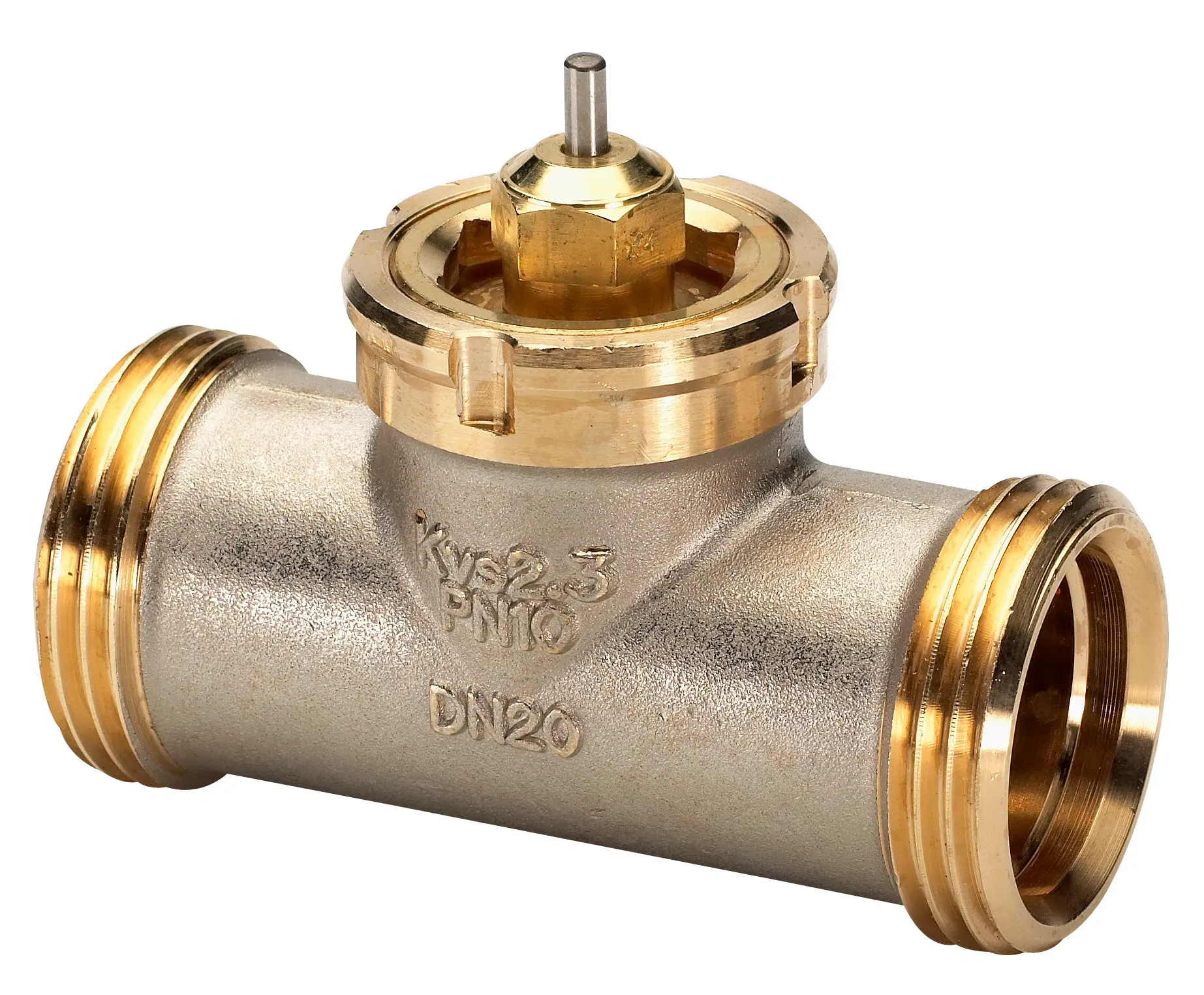

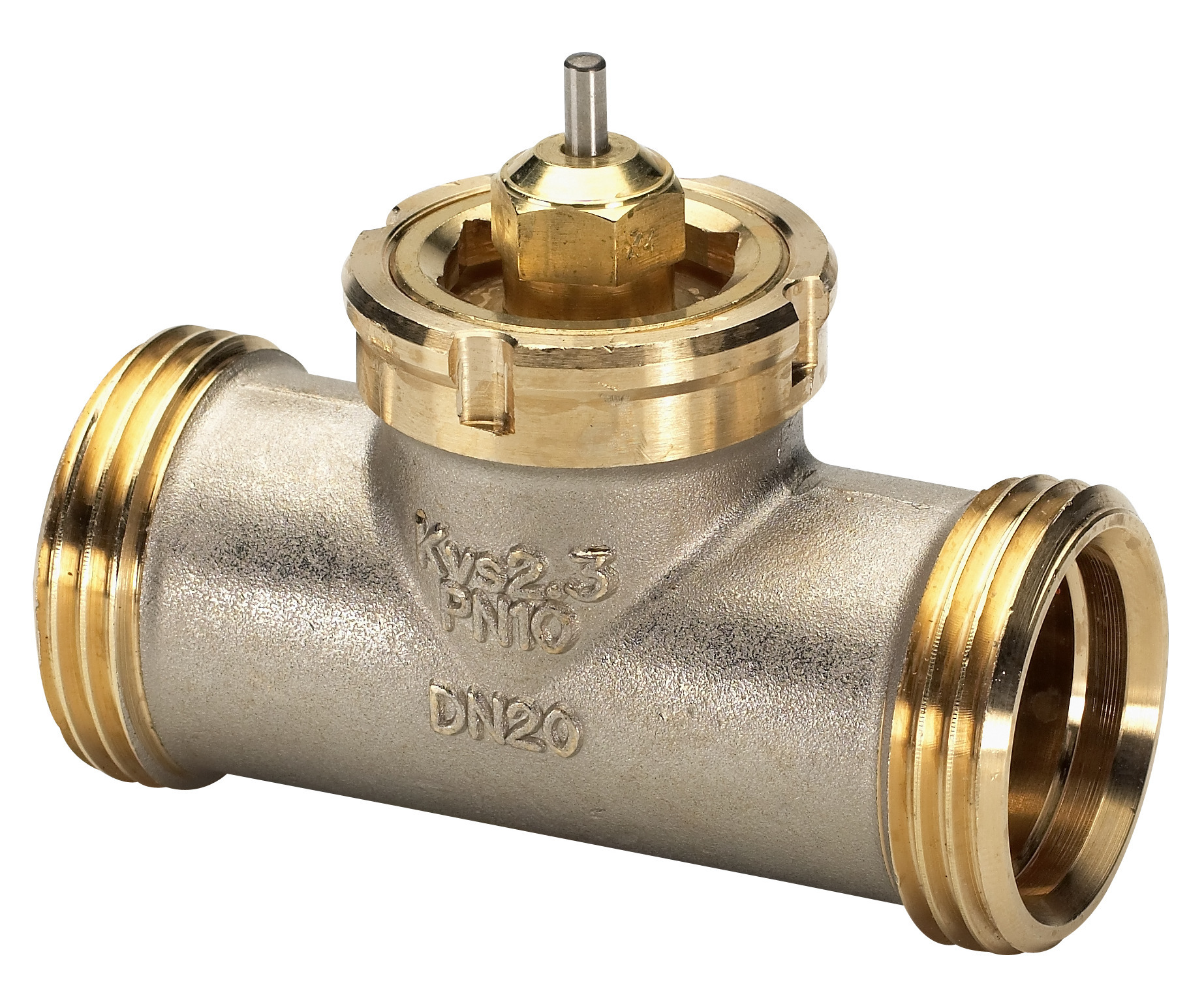

065F1242 Danfoss: VMT 1# STRAIGHT NPT BRASS VALVE BODY, C
Gross weight
0.988 Kilogram
Net weight
0.988 Kilogram
Application
Heating and cooling
Cavitation factor
0.5
Connection types
NPT
Contain batteries
No
Description
VMT 1# STRAIGHT NPT BRASS VALVE BODY, C
Diameter [mm]
25 mm
Differential pressure range [bar] [Max]
0.8 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Function
Control valve
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Type
VMT
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 25
013U0070
Accessories, Valves, Gland seal, For valves: RAV; RAVL
013U0489
Union Nuts and Tailpieces, Tailpiece, NPT thread, DN 25
