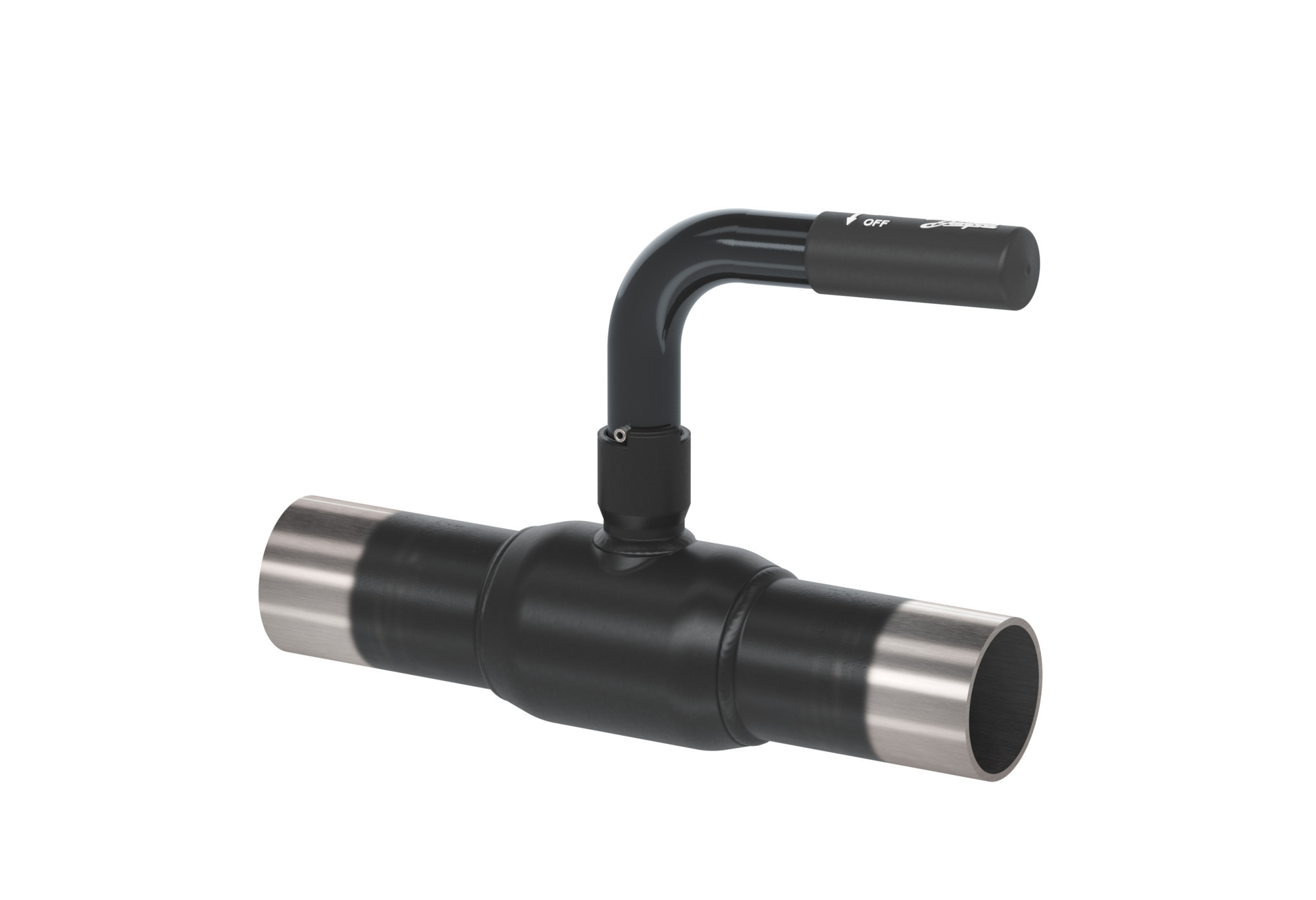

065N0105

Part Number: 065N0105
065N0105
Manufacturer
Danfoss
Part number
065N0105
Category

Product Information

Extended Description

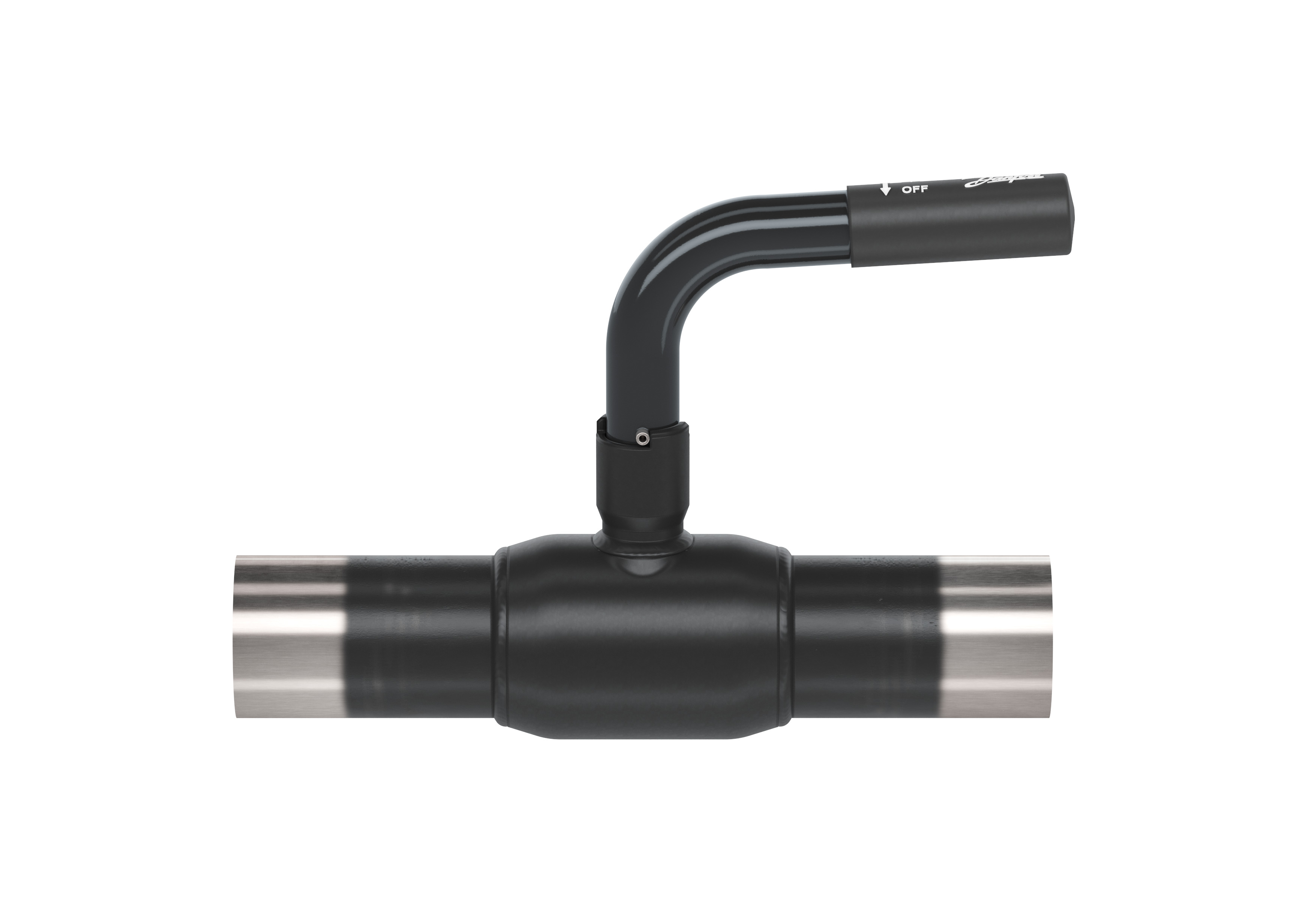

065N0105 Danfoss: JIP-WW DN 20 PN40 L hi
Gross weight
1.018 Kilogram
Net weight
0.97 Kilogram
Volume
1.516 Liter
EAN
5702421650011
Ambient temperature [=C2=B0C] [min]
-40 =C2=B0C
Application
Heating and cooling
Approval standard
EN 12266 part 1 P10-P11-P12 & part 2 F20,PED Directive 97/23/EEC Modul H1
Body material
Weldable steel #20 or similar CE PED approved material
China RoHS compliance
Out of scope
Cone /seat sealing material
PTFE+C
Connection types
Welded
Contain batteries
No
Description
JIP-WW DN 20 PN40 L hi
Differential pressure range [bar] [Max]
40 bar
EU RoHS compliance
Out of scope
Function
On/off
Kvs values [m=C2=B3/h]
15 m=C2=B3/h
Leakage rate [% Kvs]
Leakage rate A
Length [mm]
230 mm
Media pH [Max]
10
Media pH [Min]
7
Media temperature [=C2=B0C] [Max]
180 =C2=B0C
Media temperature [=C2=B0C] [Min]
0 =C2=B0C
Medium alternative
Glycolic water up to 50%
Mounting orientation
All
Number of ports
2
Operation type
Handle
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Product group
Ball valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rotation angle [=C2=B0]
90 =C2=B0
Stem sealing material
PTFE/Graphite
Storage temperature [=C2=B0C] [Min]
-40 =C2=B0C
Type
JIP-WW, RB, Handle
UK RoHS compliance
Out of scope
Valve ball material
Stainless steel
Valve body material
Weldable steel #20 or similar CE PED approved material
Valve size
DN 20
Valve stem material
Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
Valve type
Reduced Bore
Welding ends material
Weldable steel #20 or similar CE PED approved material
