065N3610

Part Number: 065N3610
065N3610
Manufacturer
Danfoss
Part number
065N3610
Category

Product Information

Extended Description

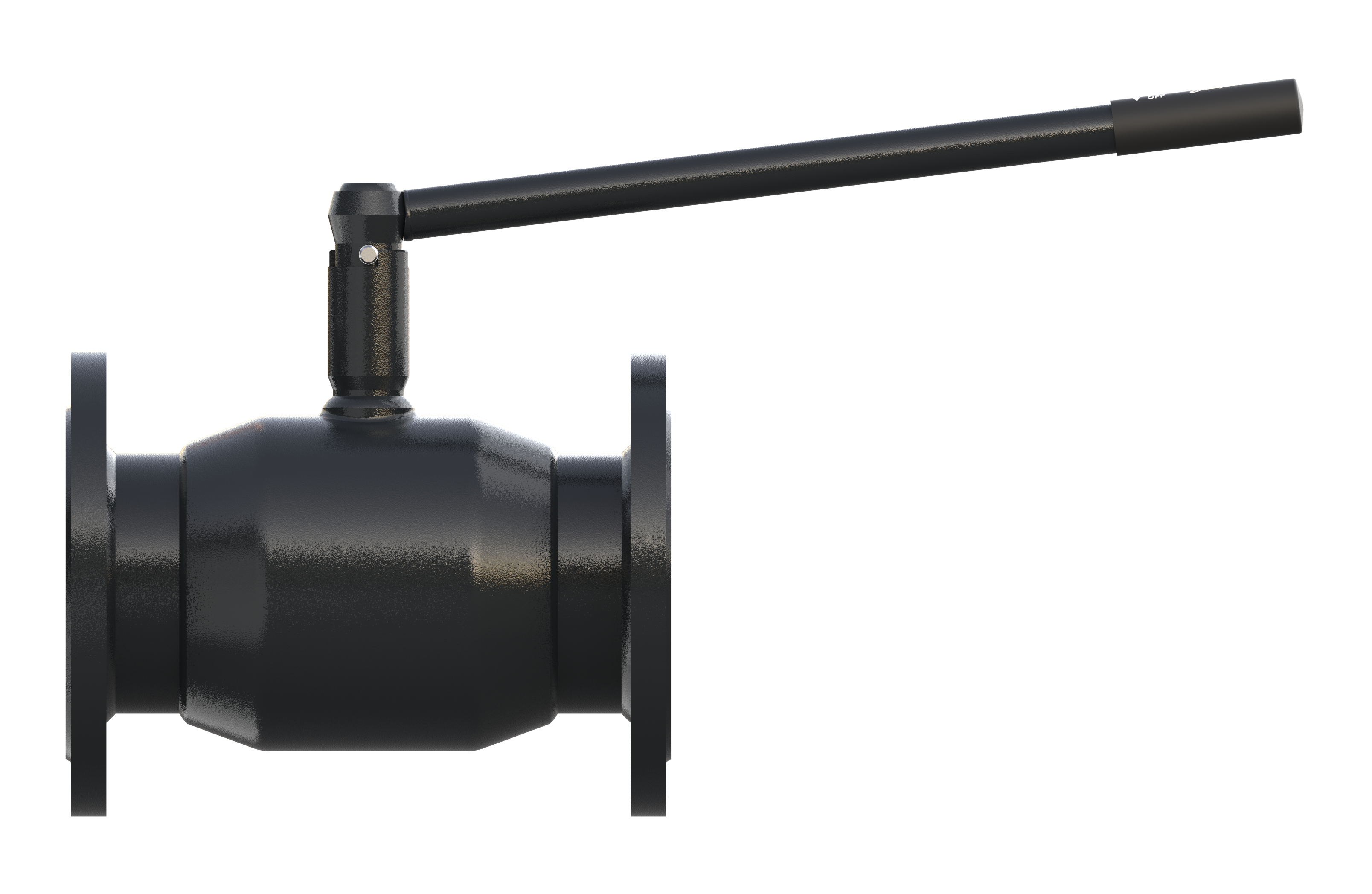

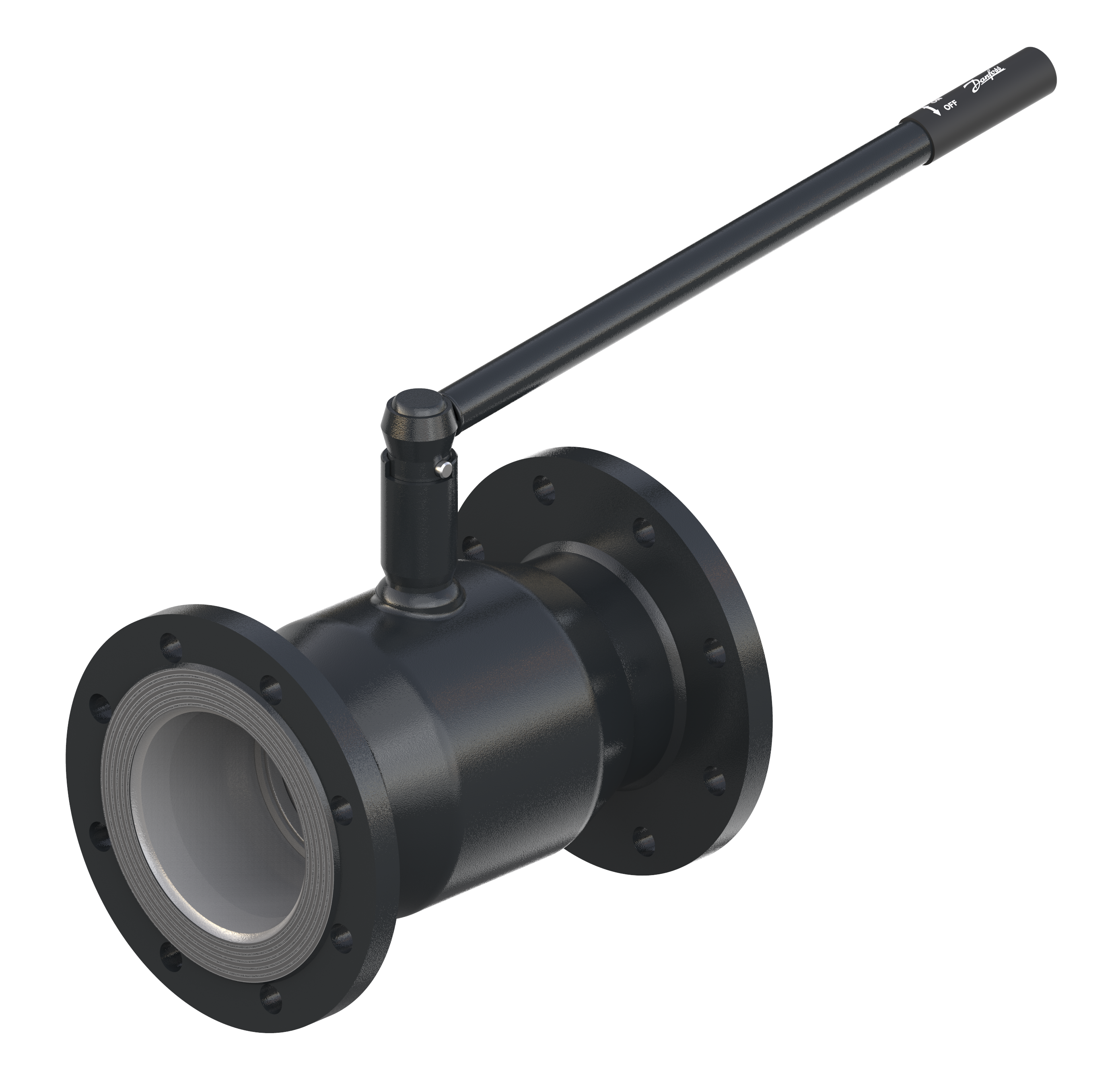

065N3610 Danfoss: JIP-FF DN150 PN16 L350
Gross weight
41 Kilogram
Net weight
36.4 Kilogram
Volume
137.94 Liter
EAN
5702424597245
Ambient temperature [=C2=B0C] [min]
-40 =C2=B0C
Application
Heating and cooling
Approval standard
EN 12266 part 1 P10-P11-P12 & part 2 F20,PED Directive 97/23/EEC Modul H1
Body material
Weldable steel #20 or similar CE PED approved material
China RoHS compliance
Out of scope
Cone /seat sealing material
PTFE+C
Connection types
Flange
Contain batteries
No
Description
JIP-FF DN150 PN16 L350
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flanges material
EN1092-Weldable steel #20 or similar CE PED approved material
Function
On/off
Kvs values [m=C2=B3/h]
1850 m=C2=B3/h
Leakage rate [% Kvs]
Leakage rate A
Length [mm]
350 mm
Media pH [Max]
10
Media pH [Min]
7
Media temperature [=C2=B0C] [Max]
180 =C2=B0C
Media temperature [=C2=B0C] [Min]
0 =C2=B0C
Medium alternative
Glycolic water up to 50%
Mounting orientation
All
Number of ports
2
Operation type
Handle
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Product group
Ball valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rotation angle [=C2=B0]
90 =C2=B0
Stem sealing material
PTFE/Graphite
Storage temperature [=C2=B0C] [Min]
-40 =C2=B0C
Type
JIP-FF, RB, Handle
UK RoHS compliance
Out of scope
Valve ball material
Stainless steel
Valve body material
Weldable steel #20 or similar CE PED approved material
Valve size
DN 150
Valve stem material
Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
Valve type
Reduced Bore
065N3724
Handles
065N8355
Ball valves, JIP-FF, RB, Handle, DN 150
