065Z0416

Part Number: 065Z0416
065Z0416
Manufacturer
Danfoss
Part number
065Z0416
Category

Product Information

Extended Description

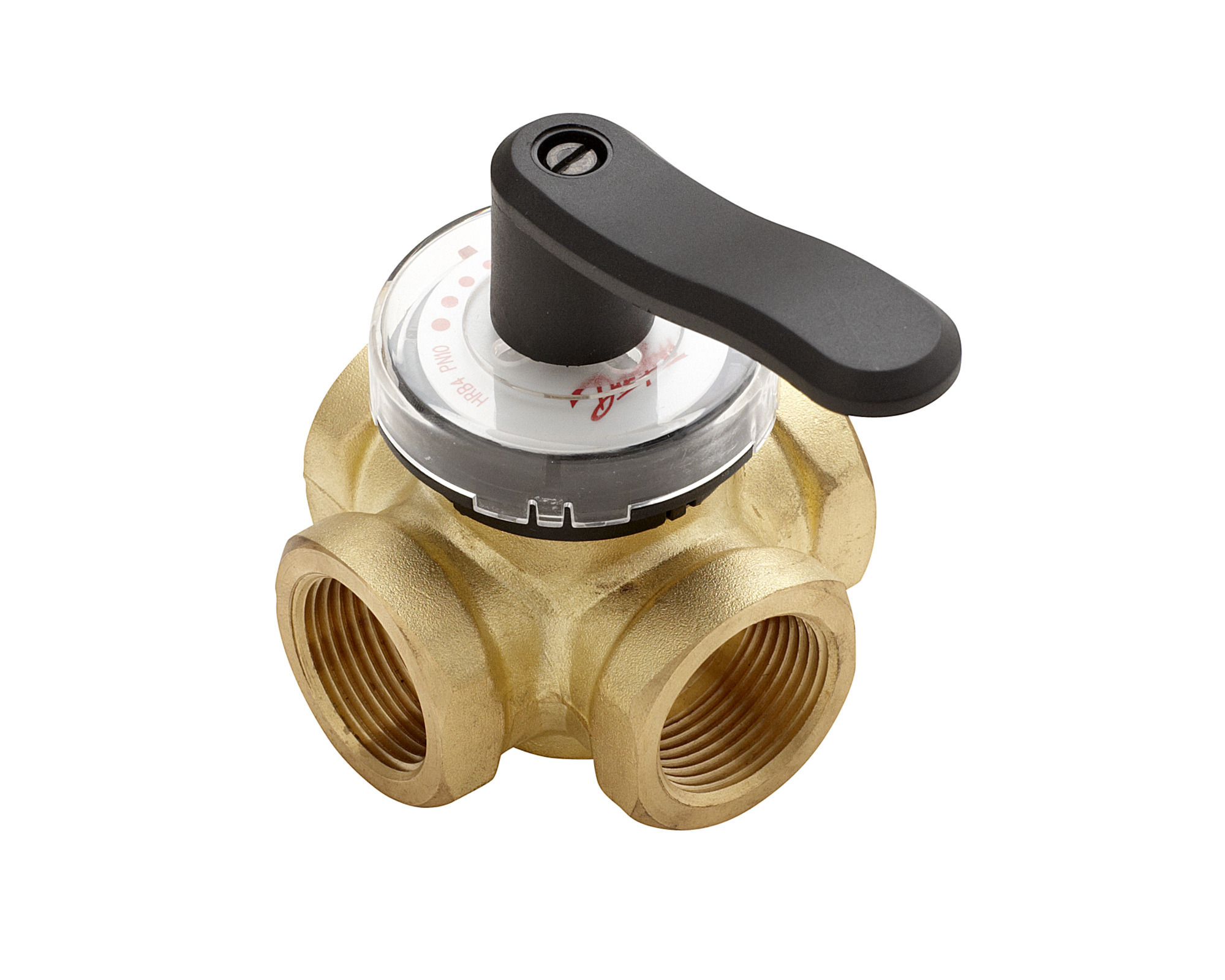

065Z0416 Danfoss: HRB 4 PN10 40/25 rotary 4-way Rp1 1/2
Gross weight
1.945 Kilogram
Net weight
1.9 Kilogram
Volume
2.144 Liter
EAN
5710104033747
Application
Heating
China RoHS compliance
Out of scope
Closing differential pressure (diverting) [bar] [Max]
2 bar
Closing differential pressure (mixing) [bar] [Max]
1 bar
Connection size
Rp 1 1/2
Connection types
Internal thread
Contain batteries
No
Description
HRB 4 PN10 40/25 rotary 4-way Rp1 1/2
Diameter [mm]
40 mm
Flow characteristic
S characteristic
Kvs values [m=C2=B3/h]
25 m=C2=B3/h
Leakage through port max. [% Kvs]
1.0
Media pH [Max]
10
Media pH [Min]
7
Media temperature [=C2=B0C] [Max]
110 =C2=B0C
Media temperature [=C2=B0C] [Min]
2 =C2=B0C
Medium alternative
Glycolic water up to 50%
Mounting version
Flow
Number of ports
4
Operating torque [Nm]
5 N-m
Permissible media
District heating/cooling circulation water
PN alternative VSP
6
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
b522cde8-91be-41f7-a332-895ff80167a5
SCIP dossier product name
HRB HRE HFE
Slide shoe material
DZR brass CuZn36Pb2AS (CW 602N)
Stuffing box sealing material
EPDM
Type
HRB 4
UK RoHS compliance
Out of scope
Valve body material
DZR brass CuZn36Pb2AS (CW 602N)
Valve cone material
DZR brass CuZn36Pb2AS (CW 602N)
Valve size
DN 40
065Z0442
Replacement handle HRB, HRE
065Z0447
Transparent cover, scale and pointer HRB
065Z0452
Stuffing box HRB3, HRE3 DN40
065Z0460
Stuffing box HRB4, HRE4 DN40
082G4235
Linkage kit HRB Generation 2009
082H0255
AMB Linkage kit for Danfoss HRB,HRE,HFE
