067B3602
Part Number: 067B3602
Product Information
Extended Description
067B3602 Danfoss: Temperature range [=C2=B0C]: -60 - -25, MOP Point [=C2=B0C]: -20, Pressure equalization: Externally equalized
Gross weight
0.559 Kilogram
Net weight
0.488 Kilogram
Volume
1.663 Liter
EAN
5702428523066
Approval
EAC,LLC CDC TYSK
Body material
Brass
Capillary tube length [in]
118 in
Capillary tube length [mm]
3000 mm
China RoHS compliance
Yes
Contain batteries
No
Equalization connection type
Flare
Equalization size [in]
1/4 in
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
400 psig
MOP Point [psig]
MOP 20
MOP Point [=C2=B0C]
-20 =C2=B0C
MOP Point [=C2=B0F]
-5 =C2=B0F
Packing format
Multi pack
Parts Program name
TE 5
Pressure equalization
Externally equalized
Product group
Expansion valves
Product Name Description

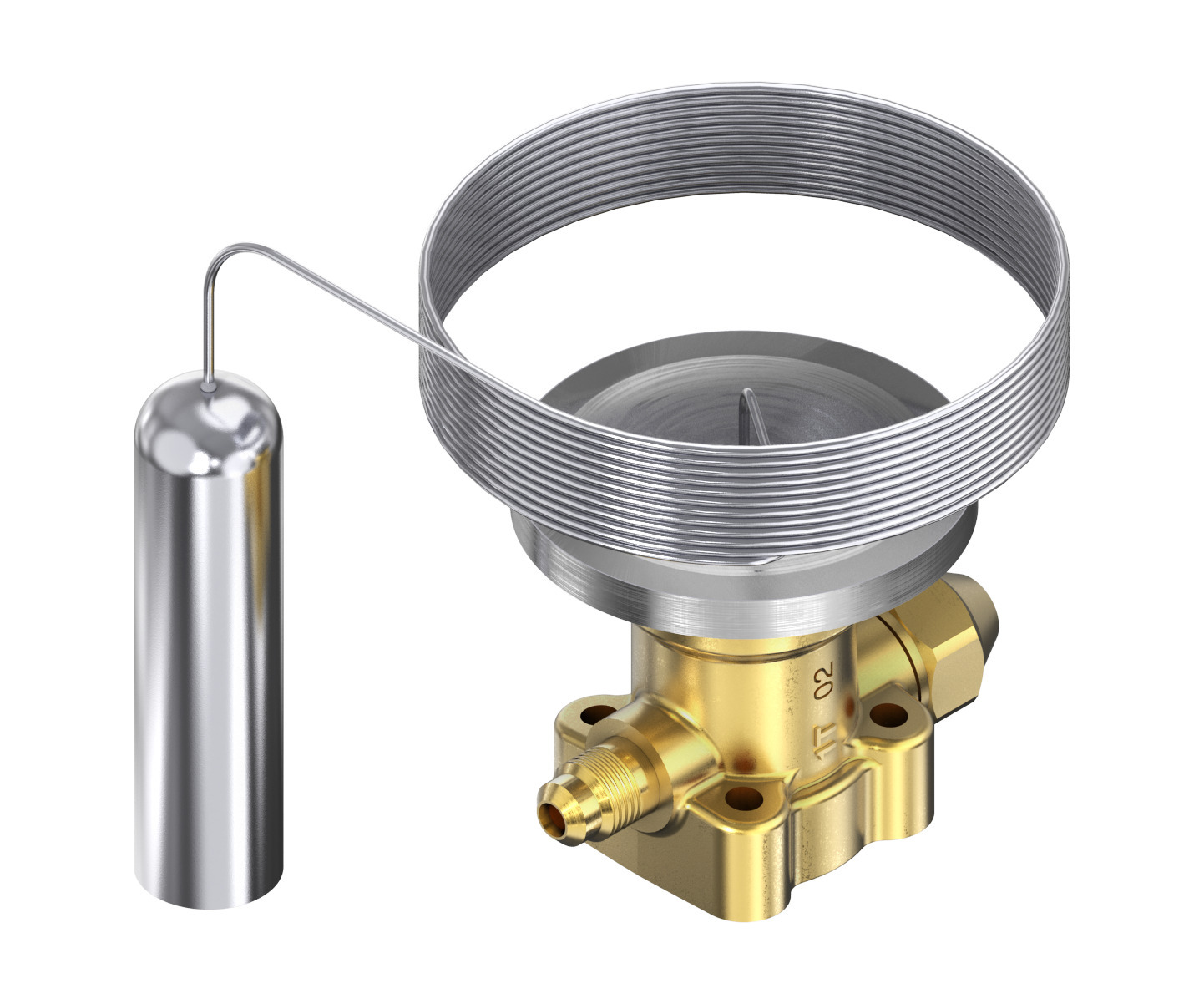

Element for expansion valve
Quantity per packing format
12 pc
Refrigerants
R452A
Temperature range [=C2=B0C] [max]
-25 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
-15 =C2=B0F
Temperature range [=C2=B0F] [min]
-75 =C2=B0F
Type
TE 5
Type designation
Element
068B0675
Generic accessories, Accessory bag, Seal kit
067N0557
Generic accessories, Accessory bag bulb strap L225mm I/40
