067L5602
Part Number: 067L5602
Product Information
Extended Description
067L5602 Danfoss: Temperature range [=C2=B0C]: -10 - 15, Orifice size: 5, Orifice capacities [kW]: 17.50, Orifice capacities [TR]: 5.00
Gross weight
0.53 Kilogram
Net weight
0.53 Kilogram
EAN
5702428322645
Adjustable
Yes
Bleed [%]
15 %
Body material
Brass
Capillary tube length [in]
31 in
Capillary tube length [mm]
800 mm
Check valve
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Direction
Straightway
Equal. Capillar tube lgt. [in]
24.3 in
Equalization connection type
SAE flare nut
Equalization size [in]
1/4 in
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Further information
Adjustable
Inlet connection type
Solder, ODF
Inlet size [in]
1/2 in
Max. Working Pressure [bar]
49 bar
Max. Working Pressure [psig]
711 psig
MOP Point [psig]
MAH
Orifice capacities [kW]
17.5 kW
Orifice capacities [TR]
5 TR
Orifice size
5
Outlet connection type
Solder, ODF
Outlet size [in]
5/8 in
Packing format
Industrial pack
Port design
Balance port
Product group
Expansion valves
Product Name Description

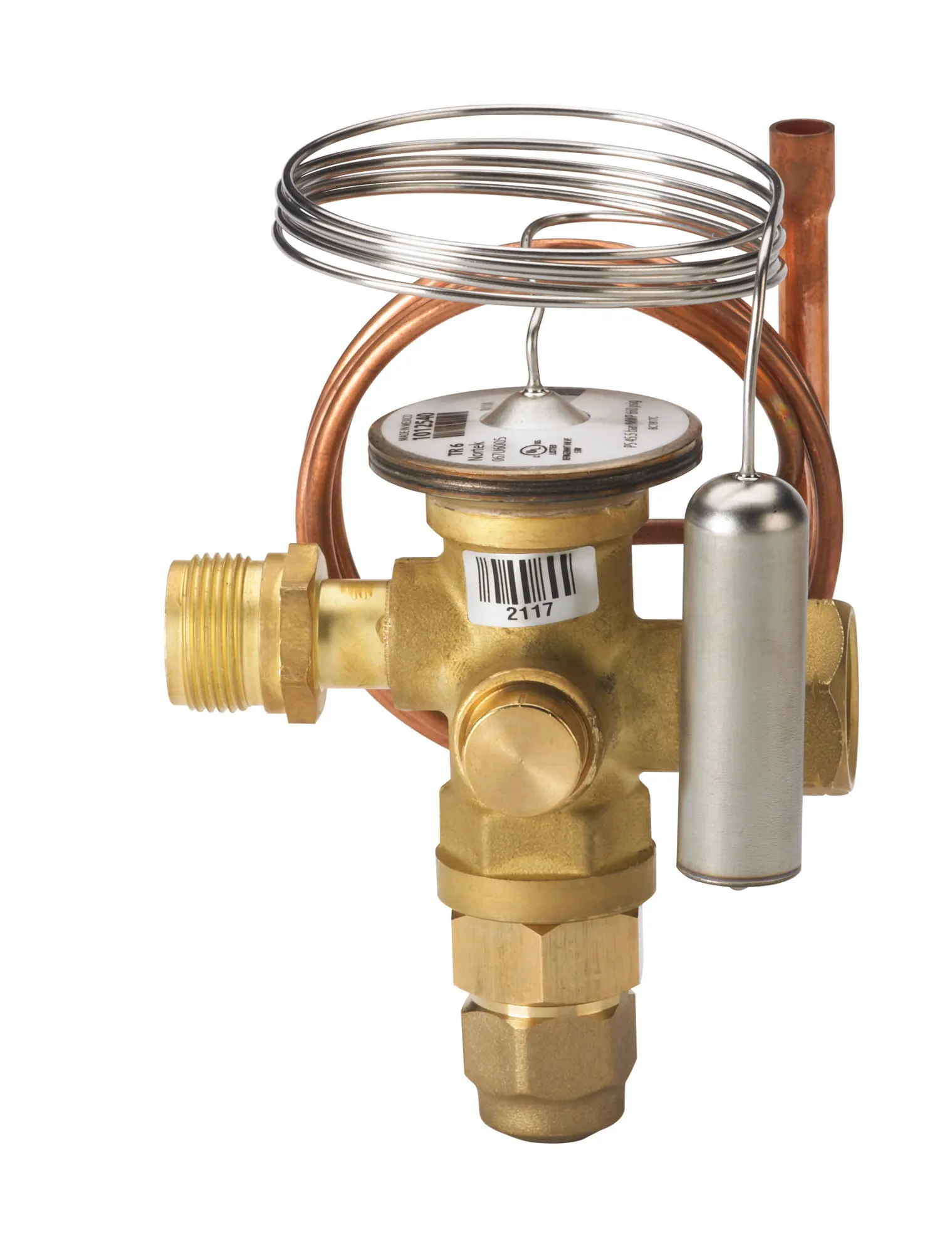

Thermostatic expansion valve
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R410A
SCIP dossier no.
da420efe-2109-4d9e-9549-19822c921816
SCIP dossier product name
TR6
Temperature range [=C2=B0C] [max]
15 =C2=B0C
Temperature range [=C2=B0C] [min]
-10 =C2=B0C
Temperature range [=C2=B0F] [max]
60 =C2=B0F
Temperature range [=C2=B0F] [min]
15 =C2=B0F
Type
TR 6
