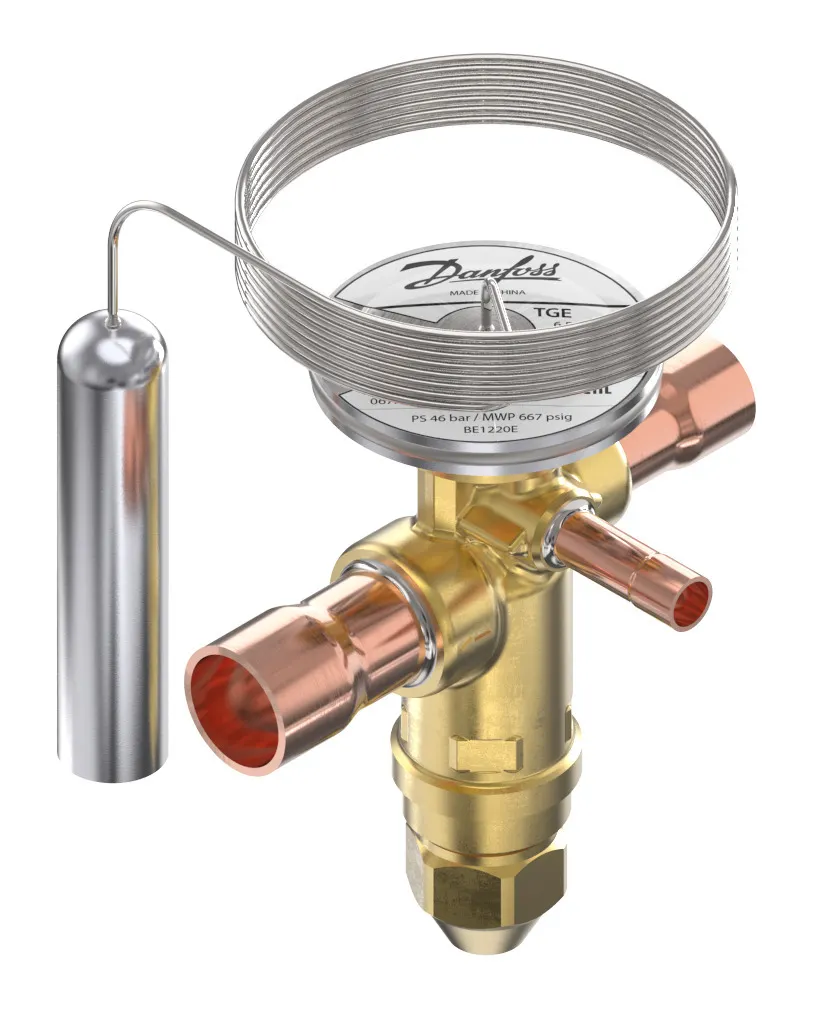

067N2000
Part Number: 067N2000
Product Information
Extended Description
067N2000 Danfoss: Temperature range [=C2=B0C]: -25 - 10, MOP Point [=C2=B0C]: 15, Orifice capacities [kW]: 10.00, Orifice capacities [TR]: 3.00, Pressure equalization: Externally equalized
Gross weight
0.467 Kilogram
Net weight
0.37 Kilogram
Volume
1.739 Liter
EAN
5702428137850
Approval
C UL US LISTED,EAC,LLC CDC TYSK
Balanced port [Yes/No]
Yes
Body material
Brass
Capillary tube length [in]
59 in
Capillary tube length [mm]
1500 mm
China RoHS compliance
Out of scope
Connection material
Copper
Contain batteries
No
Direction
Straightway
Element temperature max. [=C2=B0C]
110 =C2=B0C
Element temperature max. [=C2=B0F]
230 =C2=B0F
Equalization connection type
Solder, ODF
Equalization size [in]
1/4 in
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Identical product
067N2020
Inlet connection type
Solder, ODF
Inlet size [in]
3/8 in
Max. Working Pressure [bar]
49 bar
Max. Working Pressure [psig]
711 psig
MOP Point [psig]
MOP 100
MOP Point [=C2=B0C]
15 =C2=B0C
MOP Point [=C2=B0F]
60 =C2=B0F
Orifice capacities [kW]
10 kW
Orifice capacities [TR]
3 TR
Orifice size
3
Outlet connection type
Solder, ODF
Outlet size [in]
5/8 in
Packing format
Multi pack
Parts included
Bulb strap
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description
Thermostatic expansion valve
Quantity per packing format
12 pc
Rated cap. cond. Range N [IMP]
tcond=3D100 =C2=B0F,tevap=3D40 =C2=B0F,tliq=3D98 =C2=B0F
Rated cap. cond. Range N [SI]
tcond=3D38 =C2=B0C,tevap=3D4.4 =C2=B0C,tliq=3D37 =C2=B0C
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R22/R407C
SCIP dossier no.
28ac93c7-8f38-4a98-acf0-30588207863b
SCIP dossier product name
TEA/TEAT/TEVA
Serviceable
No
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
10 =C2=B0C
Temperature range [=C2=B0C] [min]
-25 =C2=B0C
Temperature range [=C2=B0F] [max]
50 =C2=B0F
Temperature range [=C2=B0F] [min]
-15 =C2=B0F
Type
TGE
UK RoHS compliance
Out of scope
UL approved refrigerants
R22,R407C
UL evaluated
Yes
067N0551
Generic accessories, Accessory bag bulb strap L140mm I/40
Thermostatic expansion valves type TGE
Thermostatic expansion valves Type TGE 10, TGE 20 and TGE 40
Danfoss MD 033F4011.AD
Danfoss MD 033F4017.AD
Danfoss MD 067R1068.AF
Thermostatic expansion valve, TGE_067N2000, 067N2001, 067N2003
TGE10 3/8 x5/8in. solder
TGE10 3/8x5/8 in. Solder
TGE10 3/8x5/8 in. Solder
TGEN_S_3_8x5_8x1_4_1500
