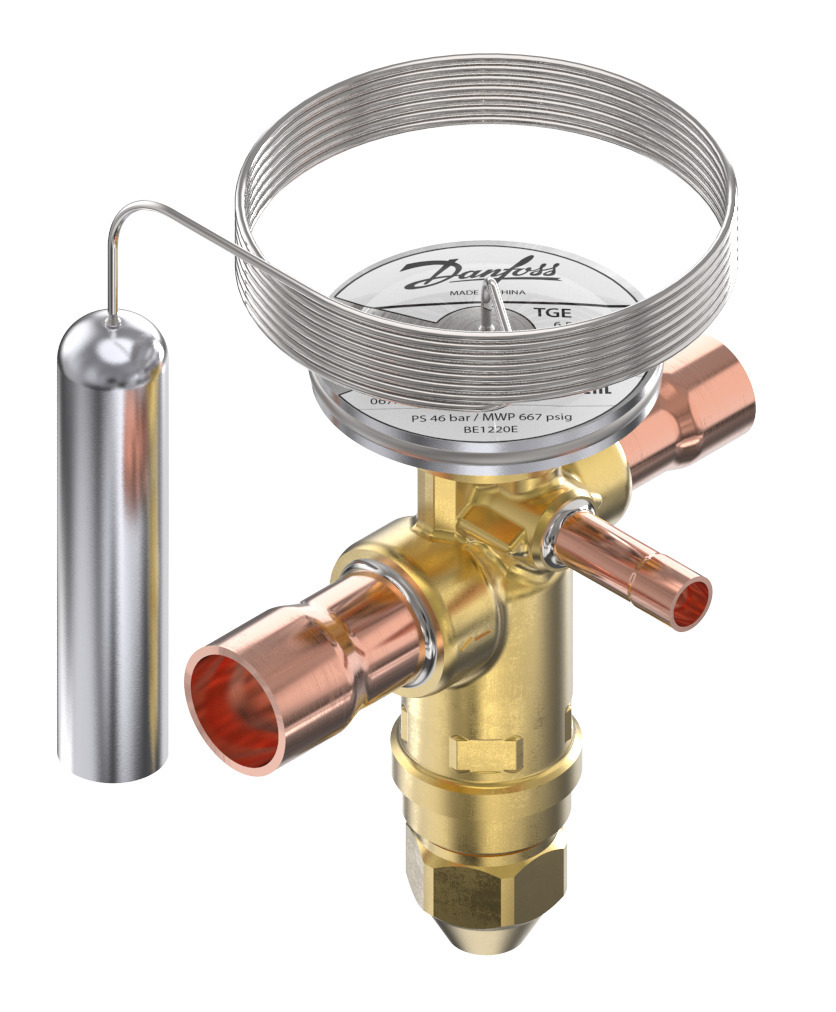

067N3098
Part Number: 067N3098
Product Information
Extended Description
067N3098 Danfoss: Temperature range [=C2=B0C]: -25 - 10, MOP Point [=C2=B0C]: 15, Orifice capacities [kW]: 110.00, Orifice capacities [TR]: 31.00, Pressure equalization: Externally equalized
Gross weight
1.079 Kilogram
Net weight
0.945 Kilogram
Volume
2.812 Liter
EAN
5702428323406
Approval
C UL US LISTED,EAC,LLC CDC TYSK
Balanced port [Yes/No]
Yes
Body material
Brass
Capillary tube length [in]
118 in
Capillary tube length [mm]
3000 mm
China RoHS compliance
Out of scope
Connection material
Copper
Contain batteries
No
Direction
Straightway
Element temperature max. [=C2=B0C]
110 =C2=B0C
Element temperature max. [=C2=B0F]
230 =C2=B0F
Equalization connection type
Solder, ODF
Equalization size [in]
1/4 in
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection type
Solder, ODF
Inlet size [in]
1 1/8 in
Max. Working Pressure [bar]
49 bar
Max. Working Pressure [psig]
711 psig
MOP Point [psig]
MOP 165
MOP Point [=C2=B0C]
15 =C2=B0C
MOP Point [=C2=B0F]
60 =C2=B0F
Orifice capacities [kW]
110 kW
Orifice capacities [TR]
31 TR
Orifice size
26
Outlet connection type
Solder, ODF
Outlet size [in]
1 1/8 in
Packing format
Industrial pack
Parts included
Bulb strap
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description
Thermostatic expansion valve
Quantity per packing format
8 pc
Rated cap. cond. Range N [IMP]
tcond=3D100 =C2=B0F,tevap=3D40 =C2=B0F,tliq=3D98 =C2=B0F
Rated cap. cond. Range N [SI]
tcond=3D38 =C2=B0C,tevap=3D4.4 =C2=B0C,tliq=3D37 =C2=B0C
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R410A
SCIP dossier no.
d44ec740-dfe8-4c0a-9644-96406f010504
SCIP dossier product name
TGE
Serviceable
No
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
10 =C2=B0C
Temperature range [=C2=B0C] [min]
-25 =C2=B0C
Temperature range [=C2=B0F] [max]
50 =C2=B0F
Temperature range [=C2=B0F] [min]
-15 =C2=B0F
Type
TGE
UK RoHS compliance
Out of scope
UL approved refrigerants
R410A
UL evaluated
Yes
067N0559
Generic accessories, Accessory bag bulb strap L350mm I/40
Thermostatic expansion valves type TGE
Thermostatic expansion valves Type TGE 10, TGE 20 and TGE 40
Danfoss MD 033F4017.AD
Danfoss MD 067R1068.AF
Thermostatic expansion valve, TGE_067N2000, 067N2001, 067N2003
TGE40 1 1/8x1 1/8 ODF 3m
TGE40 1 1/8x1 1/8 ODF 3m
TGE40 1 1/8x1 1/8 ODF 3m
TGE40 1 1/8x1 1/8 ODF 3m
