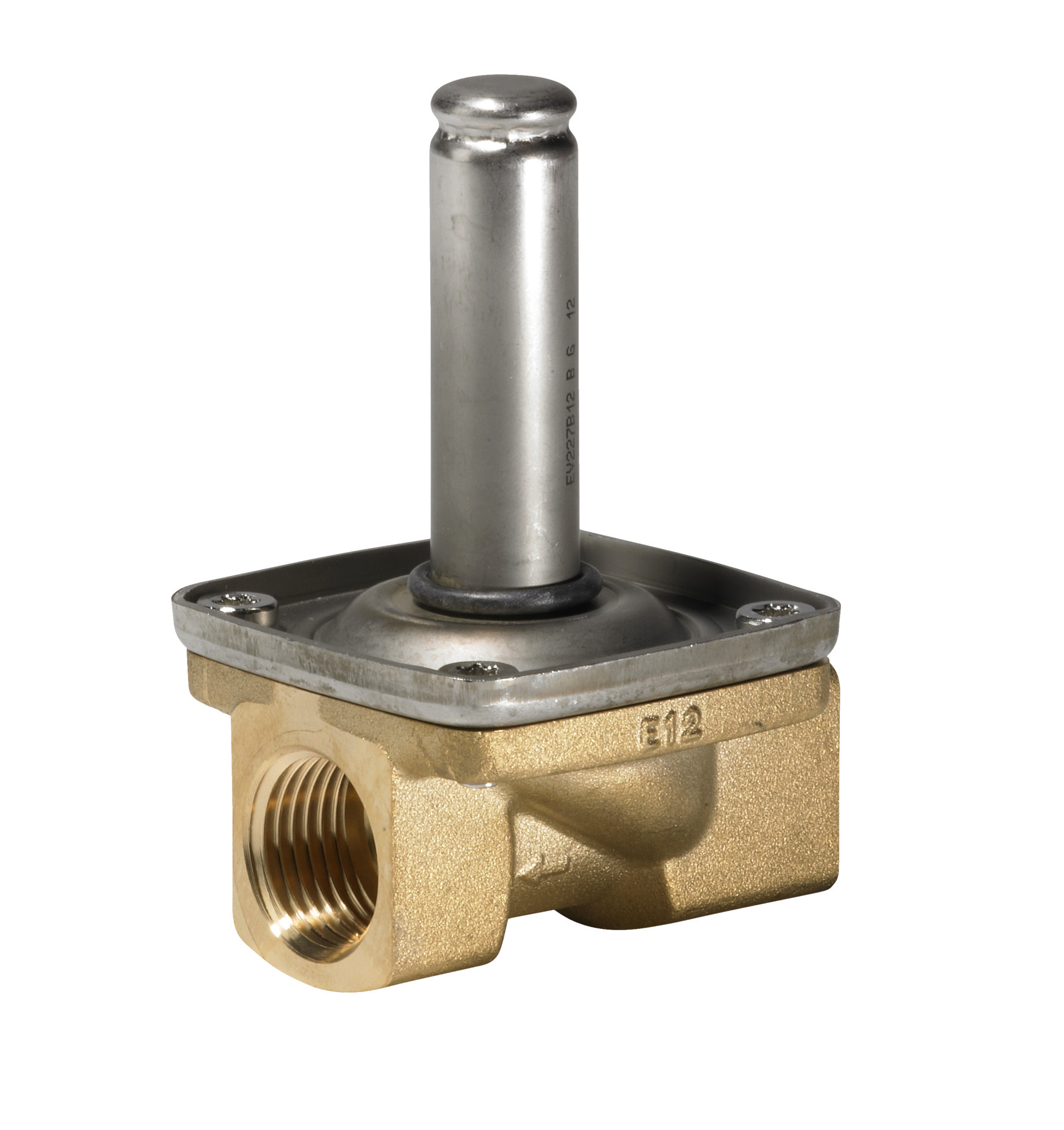

068F4052
Part Number: 068F4052
Product Information
Extended Description
068F4052 Danfoss: Media recommendations: Water & Brine, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
0.344 Kilogram
Net weight
0.321 Kilogram
Volume
0.338 Liter
EAN
5702422158899
Actuator
B
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Open
Body material
Brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Brass
Connection size [in]
1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
2.9 gal/min
Differential pressure [bar] [max]
5 bar
Differential pressure [bar] [min]
0.1 bar
Differential pressure [psi] [max]
73 psi
Differential pressure [psi] [min]
1.45 psi
EEE category
5 small equipment (any external dimension 50 cm)
Est. time to close, water [ms]
300 ms
Est. time to open, water [ms]
60 ms
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NC
In scope of WEEE
Yes
Kv value [mÂł/h]
2.5 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
232 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Water & Brine
Medium temperature range [°C] [max]
60 °C
Medium temperature range [°C] [min]
-35 °C
Medium temperature range [°F] [max]
140 °F
Medium temperature range [°F] [min]
-31 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
12 mm
Orifice size fraction [in]
1/2 in
Packing format
Multi pack
Parts Program name
EV227B
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
e19d7d21-722c-4442-ad97-de80a89c5873
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV227B 12B G 12E NC000
Type
EV227B
Type designation
EV227B 12
UK RoHS compliance
Out of scope
068F4001
Spare part, EV227B 12B EPDM, Service kit
018F6701
Solenoid coil, BE230AS, Terminal box, Supply voltage [V] AC: 220 - 230, Multi pack
018F6707
Solenoid coil, BE024AS, Terminal box, Supply voltage [V] AC: 24, Multi pack
018F6756
Solenoid coil, BE012DS, Terminal box, Multi pack
018Z0081
Spare part, IP67 coils, Terminal box
018F6757
Solenoid coil, BE024DS, Terminal box, Multi pack
Solenoid valves, type EV227B
Solenoid valve Type EV227B
Danfoss EU 033F0683.04
Danfoss EU 033F0683.05
Solenoid valves – Polymer, Bronze, Brass, Cast iron
Danfoss MD 033F0232.AA
Danfoss MD 033F0699.00
Danfoss MD 033F1140.01
EV227B Solenoid valve without coil, NC, G ½, brass
EV227B Solenoid valve - Complete
EV227B Solenoid valve without coil, NC, G ½, brass
