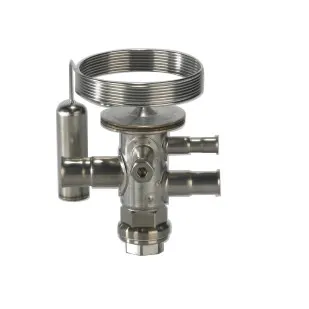

068U3964

Part Number: 068U3964
068U3964
Manufacturer
Danfoss
Part number
068U3964
Category

Product Information

Extended Description

068U3964 Danfoss: Temperature range [=C2=B0C]: -40 - 10, Pressure equalization: Externally equalized
Gross weight
0.179 Kilogram
Net weight
0.145 Kilogram
Volume
0.406 Liter
EAN
5715162160459
Approval
EAC,LLC CDC EURO-TYSK,UL
Body material
Stainless steel
Capillary tube length [in]
59 in
Capillary tube length [mm]
1500 mm
China RoHS compliance
Yes exceed limitations
Connection material
Bi-metal: Steel/copper
Contain batteries
No
Direction
Straightway
Equalization connection type
Solder, ODF
Equalization size [mm]
6 mm
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Flow direction
Bi-flow with orifice 1-8
Flow direction indicator
Laser engraved 1-way arrow
Fluid Group
2
Inlet connection type
Solder, ODF
Inlet size [mm]
6 mm
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
500 psig
Outlet connection type
Solder, ODF
Outlet size [mm]
12 mm
Packing format
Multi pack
Parts included
Bulb strap
Parts Program name
TUA
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description
Thermostatic expansion valve
Quantity per packing format
24 pc
Rated cap. cond. Range N [IMP]
OS=3D7.2 =C2=BAF,tcond=3D100 =C2=BAF,tevap=3D40 =C2=BAF,tliq=3D98 =C2=BAF
Rated cap. cond. Range N [SI]
OS=3D4K,tcond=3D38 =C2=BAC,tevap=3D4.4 =C2=BAC,tliq=3D37 =C2=BAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234ze(E)
SCIP dossier no.
07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name
TU/TC - Thermostatic expansion valve
Serviceable
TXV spare parts
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
10 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
50 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
TUAE
UA address
UK RoHS compliance
Out of scope
UL evaluated
Yes
Overview Brochure Thermostatic Expansion Valves Thermostatic expansion valve, type TU and TC Thermostatic expansion valves Type TUA, TUAE and TCAE orifice Infographic - TU thermostatic expansion valve Expansion Valves, Type TUA, TUAE - Installation Instructions Service on ice machines with R404A, type TU service kit Danfoss EU 068U9903.01 TU/TC valves Danfoss MD 068U9615.13 Danfoss MD 068U9616.03 TUAE SW_068U1233, 068U1234, 068U1236
