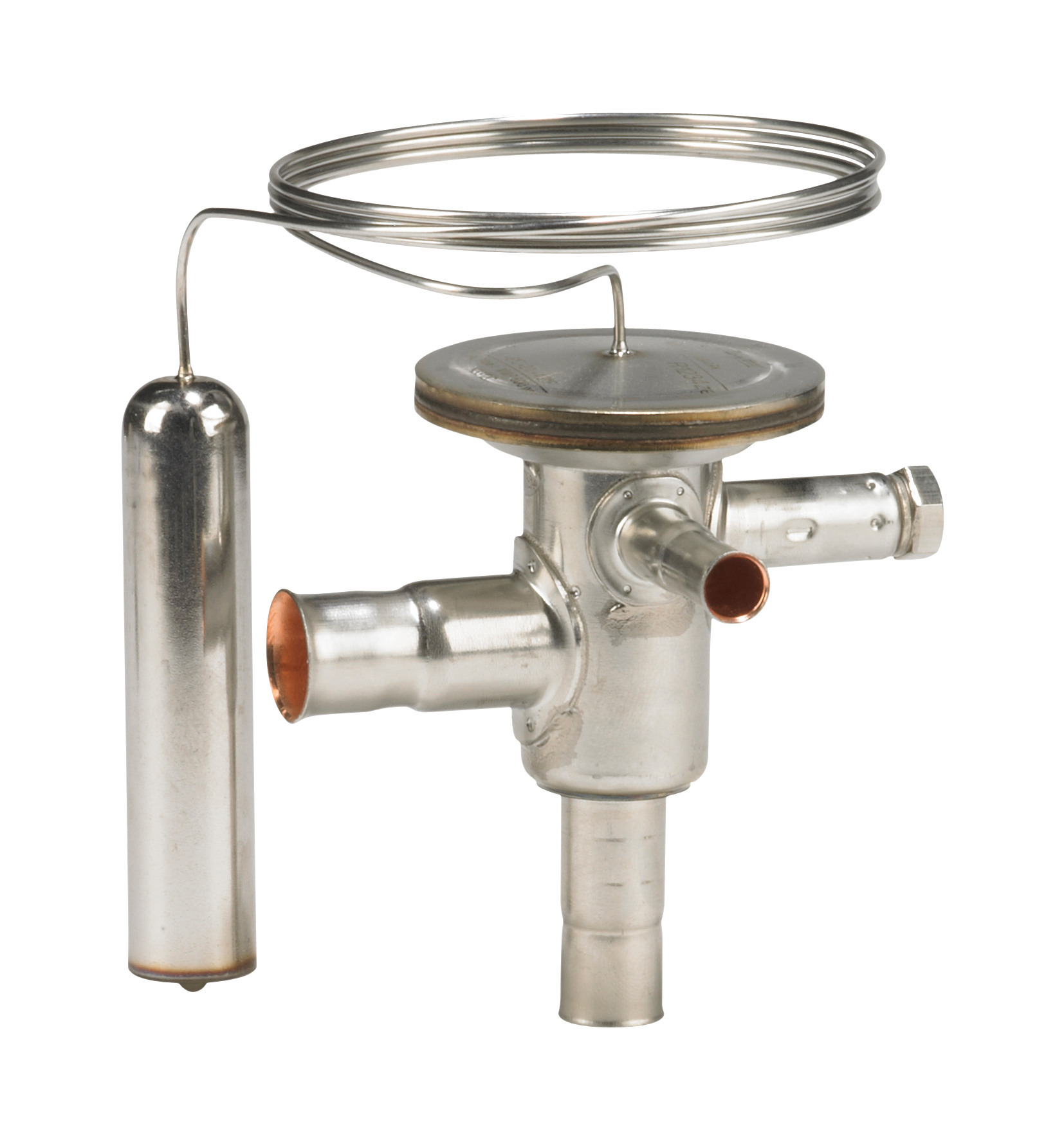

068U4588
Part Number: 068U4588
Product Information
Extended Description
068U4588 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Temperature range [=C2=B0C]: -5 - 5, Orifice capacities [kW]: 10.00, Pressure equalization: Externally equalized
Gross weight
0.199 Kilogram
Net weight
0.179 Kilogram
Volume
0.489 Liter
EAN
5702428942058
Approval
EAC,LLC CDC TYSK
Body material
Stainless steel
Capillary tube length [in]
35 in
Capillary tube length [mm]
900 mm
China RoHS compliance
Yes exceed limitations
Connection material
Bi-metal: Steel/copper
Contain batteries
No
Direction
Angleway
Equalization connection type
Solder, ODF
Equalization size [in]
1/4 in
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Flow direction
Single-flow
Flow direction indicator
Laser engraved 1-way arrow
Fluid Group
2
Identical product
068U4559
Inlet connection type
Solder, ODF
Inlet size [in]
3/8 in
Max. Working Pressure [bar]
45.5 bar
Max. Working Pressure [psig]
660 psig
Orifice capacities [kW]
10 kW
Orifice capacities [TR]
2.9 TR
Orifice size
3
Outlet connection type
Solder, ODF
Outlet size [in]
1/2 in
Packing format
Multi pack
Parts included
Bulb strap
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Press. and temp. regul. valves
Product Name Description
Hot gas bypass regulator
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R410A
SCIP dossier no.
07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name
TU/TC - Thermostatic expansion valve
Serviceable
No
Static Superheat (SS) [=C2=B0C]
2 =C2=B0C
Static Superheat (SS) [=C2=B0F]
3.6 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
5 =C2=B0C
Temperature range [=C2=B0C] [min]
-5 =C2=B0C
Temperature range [=C2=B0F] [max]
41 =C2=B0F
Temperature range [=C2=B0F] [min]
23 =C2=B0F
Type
TCHE
UA address
UK RoHS compliance
Out of scope
