071N0008
Part Number: 071N0008
Product Information
Extended Description
071N0008 Danfoss: COIL 24 V DC.
Gross weight
0.078 Kilogram
Net weight
0.073 Kilogram
Volume
0.104 Liter
EAN
5702425061004
Ambient temperature [°C] [max]
80 °C
Ambient temperature [°C] [min]
-10 °C
Approval
CE
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil consumption [W]
9 W
Coil Current
DC
Coil voltage [V]
24
Contain batteries
No
Content

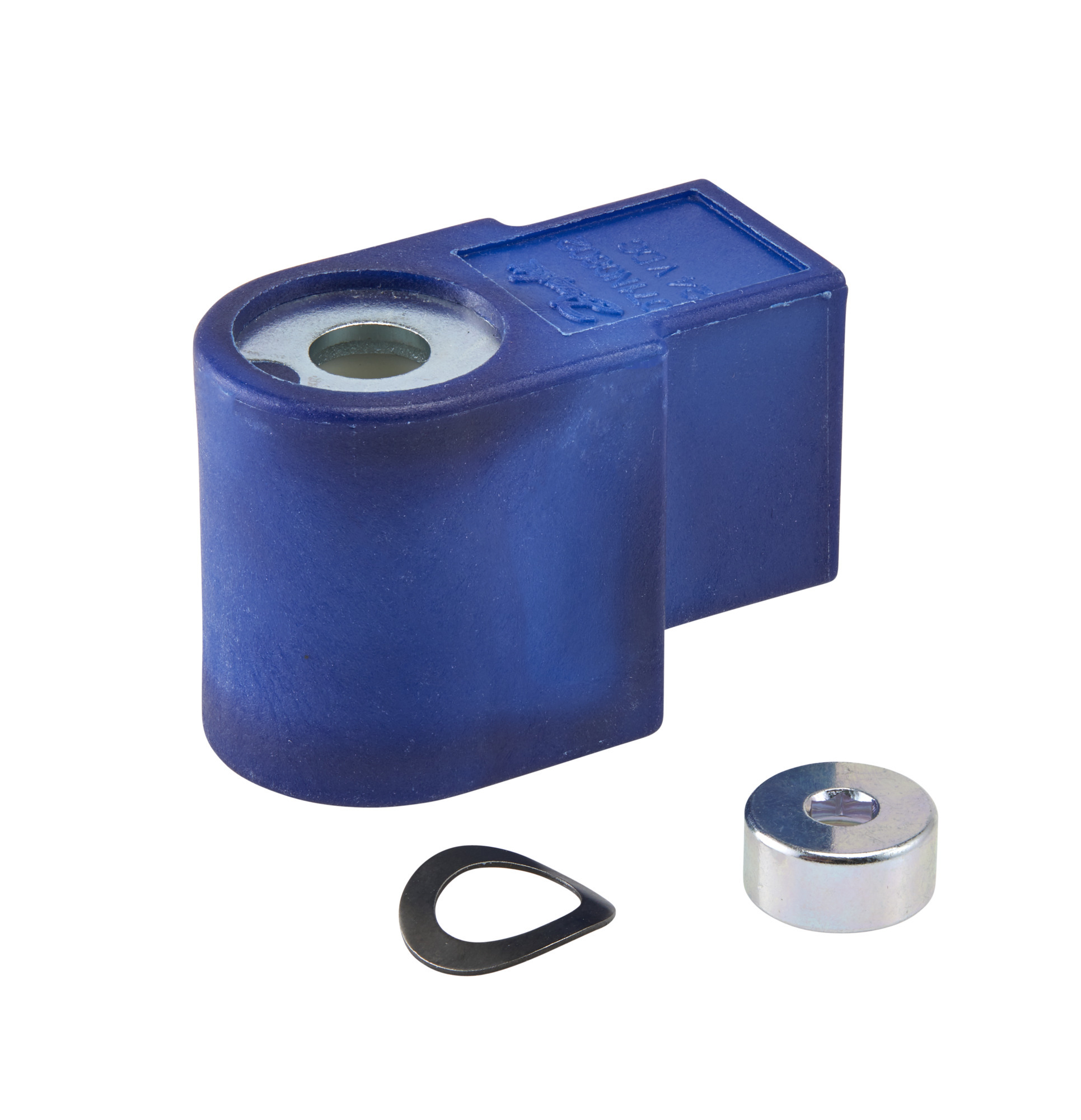

Coil, nut and washer.
Current type
DC
Description
COIL 24 V DC.
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP40
Packing format
Multi pack
Product group
Accessories for Burner Components
Quantity per packing format
45 pc
REACH Candidate List substances
No
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-20 °C
Supply peak voltage [V] [Max]
26.4 V
Supply peak voltage [V] [Min]
21.6 V
Supply voltage [V]
24 V
Supply voltage [V] [Max]
24 V
Supply voltage [V] [Min]
24 V
Type
Accessories for BFP
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Out of scope
