071N2053
Part Number: 071N2053
Product Information
Extended Description

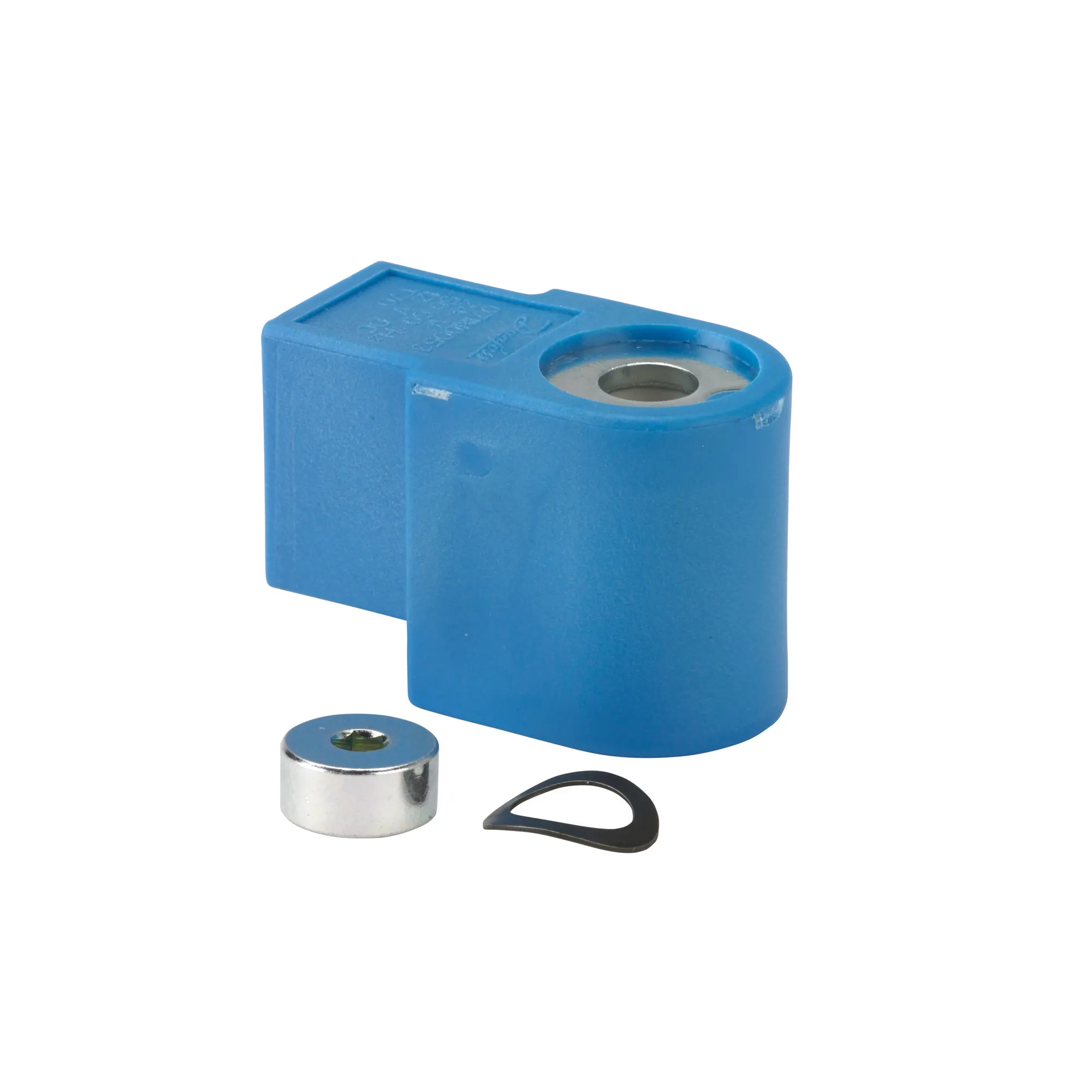

071N2053 Danfoss: Coil 24 V AC. OEM
Gross weight
0.068 Kilogram
Net weight
0.061 Kilogram
Volume
0.062 Liter
EAN
5702425080753
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
-20 °C
Approval
CE
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil consumption [W]
9 W
Coil Current
AC
Coil voltage [V]
24
Contain batteries
No
Current type
AC
Description
Coil 24 V AC. OEM
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP40
Packing format
Industrial pack
Product group
Accessories for Burner Components
Quantity per packing format
50 pc
REACH Candidate List substances
No
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-20 °C
Supply peak voltage [V] [Max]
26.4 V
Supply peak voltage [V] [Min]
21.6 V
Supply voltage [V]
24 V
Supply voltage [V] [Max]
24 V
Supply voltage [V] [Min]
24 V
Type
Accessories for BFP
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Out of scope
