071N2068
Part Number: 071N2068
Product Information
Extended Description

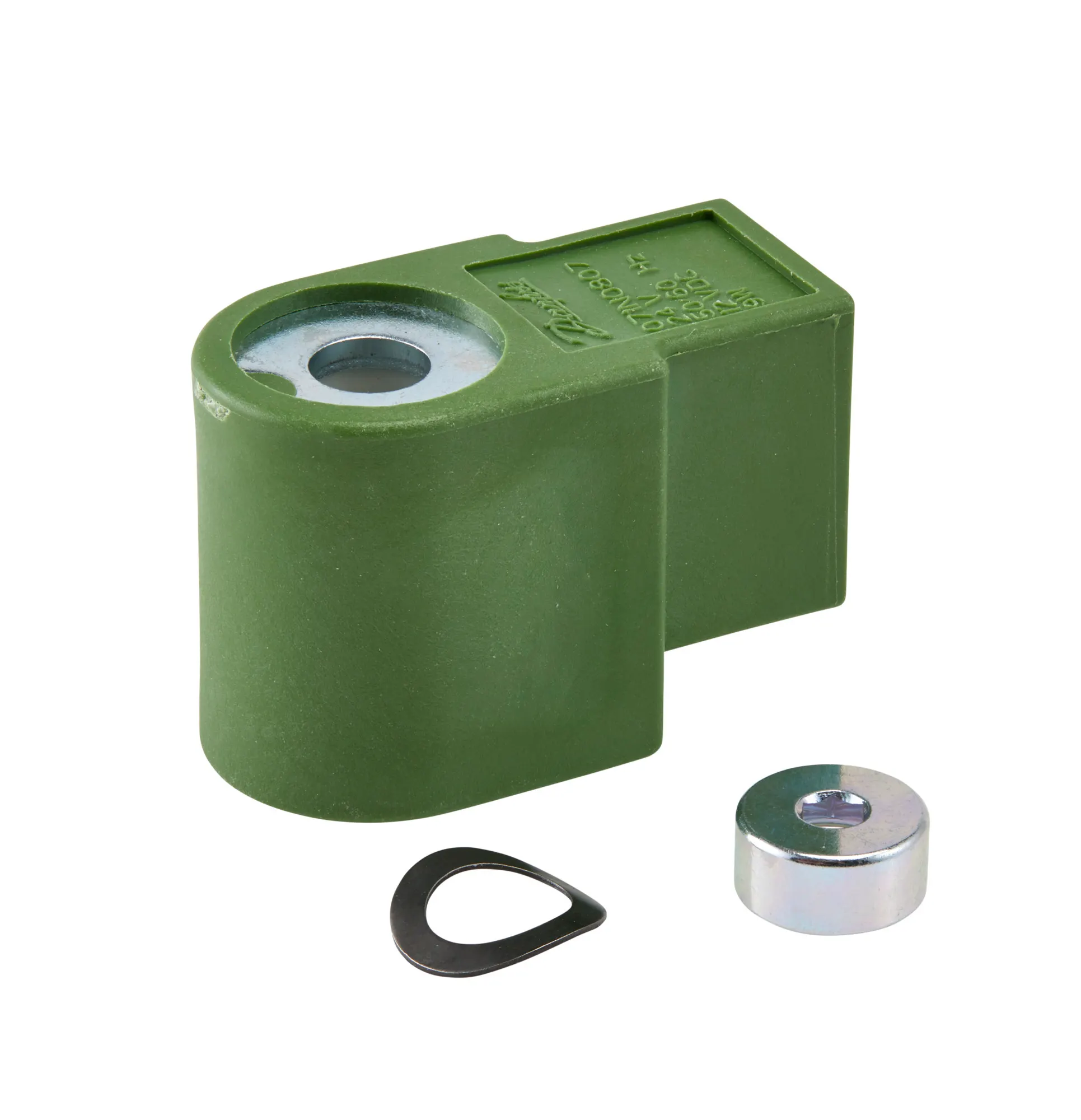

071N2068 Danfoss: SERVICE KIT COIL 12VDC/24V
Gross weight
0.076 Kilogram
Net weight
0.068 Kilogram
Volume
0.125 Liter
EAN
5702425231643
Ambient temperature [°C] [max]
80 °C
Ambient temperature [°C] [min]
-20 °C
Approval
UL,UL,UL
CE evaluated
Out of scope
China RoHS compliance
Out of scope
Coil consumption [W]
9 W
Coil Current
AC
Contain batteries
No
Current type
AC
Description
SERVICE KIT COIL 12VDC/24V
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP40
Packing format
Industrial pack
Product group
Accessories for Burner Components
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ca2c7efc-da5b-4ebc-8e19-1649b28a0a20
SCIP dossier product name
NC T85 coil service kit
Storage temperature [°C] [Max]
80 °C
Storage temperature [°C] [Min]
-20 °C
Supply peak voltage [V] [Max]
26.4 V
Supply peak voltage [V] [Min]
21.6 V
Supply voltage [V]
24 V
Supply voltage [V] [Max]
26.4 V
Supply voltage [V] [Min]
21.6 V
Type
Accessories for BFPN
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
