071N2304
Part Number: 071N2304
Product Information
Extended Description

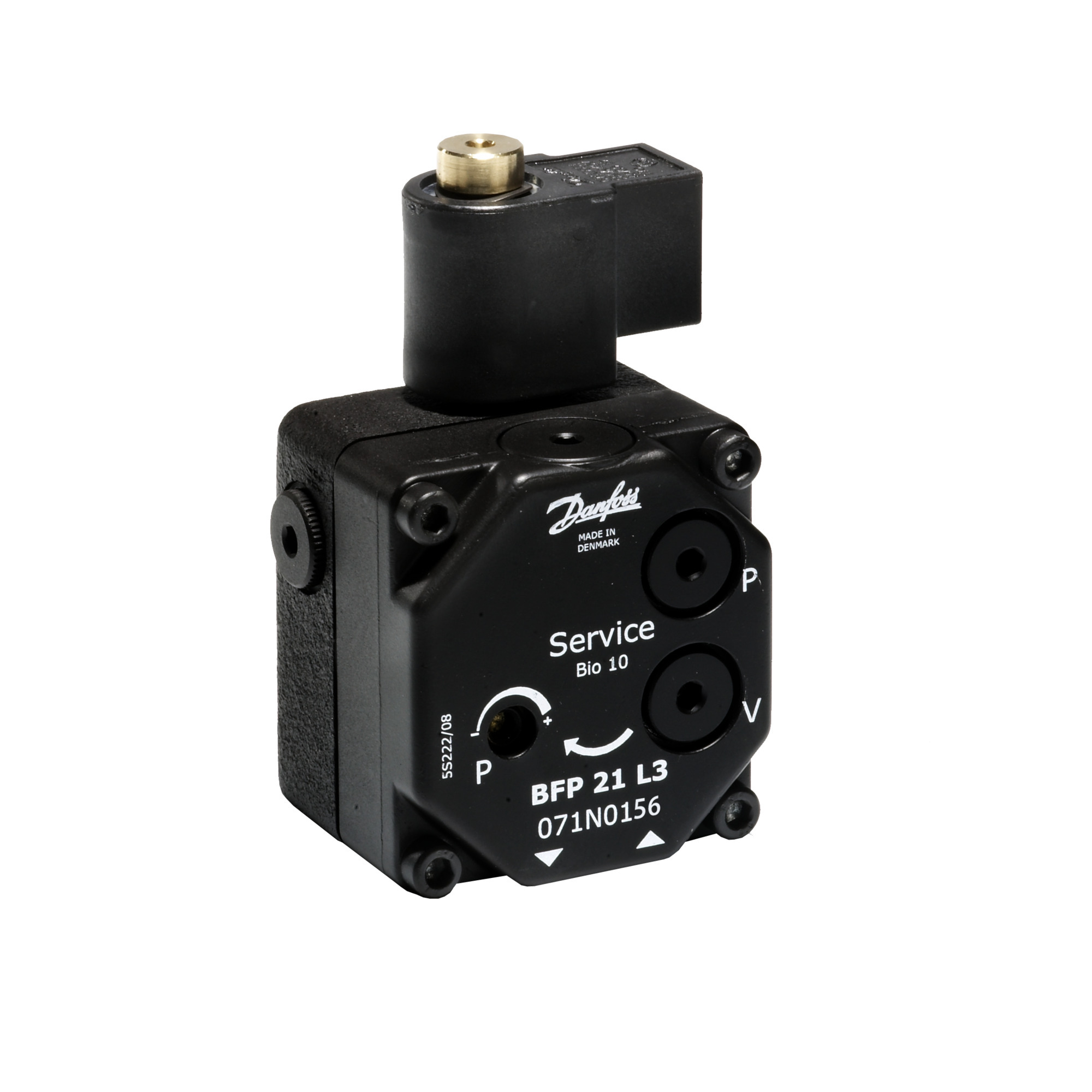

071N2304 Danfoss: BFP 21 L3R
Gross weight
1.165 Kilogram
Net weight
1.164 Kilogram
Volume
1.123 Liter
EAN
5702425052507
ROTATION
L
1 or 2 stage
1
Actuator type
NC
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
-20 °C
Approval
CE,UKCA,Intertek Semko,DIN CERTCO
Biofuel blend
10
Capacity [l/h]
16 L/h
Capacity group
0-16
Capacity range [l/h] [Max]
24 L/h
Capacity range [l/h] [Min]
0 L/h
CE evaluated
Yes
China RoHS compliance
Out of scope
Closing function
Cut-off
Coil consumption [W]
9 W
Coil Current
AC
Coil voltage [V]
220 - 230
Comments
Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump.
Contain batteries
No
Definition point [l/h]
2800 min-1, 10 bar, 4.3 cSt
Description
BFP 21 L3R
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)-I,6(c)
Factory pressure setting [bar]
10 bar
Filter area [cm²]
11 cm²
Filter grade [µm]
200
Filter type
Cartridge
Flats/key on the shaft
2 flats
Grade of enclosure
IP40
Media temperature [°C] [Max]
70 °C
Media temperature [°C] [Min]
0 °C
Nozzle/pressure outlet
R
Number of stages
1
Oil pump speed [op/min]
3450 op/min
Oil type
Kerosene/Light oil
Packing format
Pallet pack
Pipe connection
2 pipes
Power consumption [W]
42 W
Pressure [bar] [Max]
20 bar
Pressure [bar] [Min]
7 bar
Pressure feed line [bar] [Max]
2 bar
Pressure kerosene [bar] [Max]
12 bar
Product group
Pumps
Quantity per packing format
500 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f7a3d9f5-c783-43a4-84ec-d54732783baf
SCIP dossier product name
Oil pump BFP 21
Serie
BFP
Shaft diameter [mm]
8 mm
Speed [rpm] [Max]
3450 rpm
Speed [rpm] [Min]
2400 rpm
Starting torque [Nm] [Max]
0.1 N-m
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-20 °C
Suction Line Vacuum [bar] [Max]
0.4 bar
Supply peak voltage [V] [Max]
253 V
Supply peak voltage [V] [Min]
207 V
Supply voltage [V]
230 V
Supply voltage [V] [Max]
240 V
Supply voltage [V] [Min]
220 V
Type
BFP 21
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
Viscosity [cSt] [Max]
12 cSt
Viscosity [cSt] [Min]
1.3 cSt
071B0011
BUSH 32 → 54 mm.
071N0008
COIL 24 V DC.
071N0050
NC VALVE
071N0062
Coil 24 V AC.
071N0064
CARTRIGDE STRAINER BFP
071N0074
PLUG FOR CARTRIGDE FILTER.
071N0604
PLUG 1/8" FOR P AND V PORTS.
071N1006
COIL T85 230 V AC
071N1033
O-rings for cover (ø54) and regulator (ø9,75)
071G0200
CABLE FOR NC VALVE, 500 mm OEM
071G0204
CABLE FOR NC VALVE, 710 mm OEM
071G0208
CABLE FOR NC VALVE, 630 mm OEM
071G2245
CABLE FOR NC VALVE, 2100 mm
071N1055
PLUG FOR 1/4" CONNECTIONS
