071N3137
Part Number: 071N3137
Product Information
Extended Description

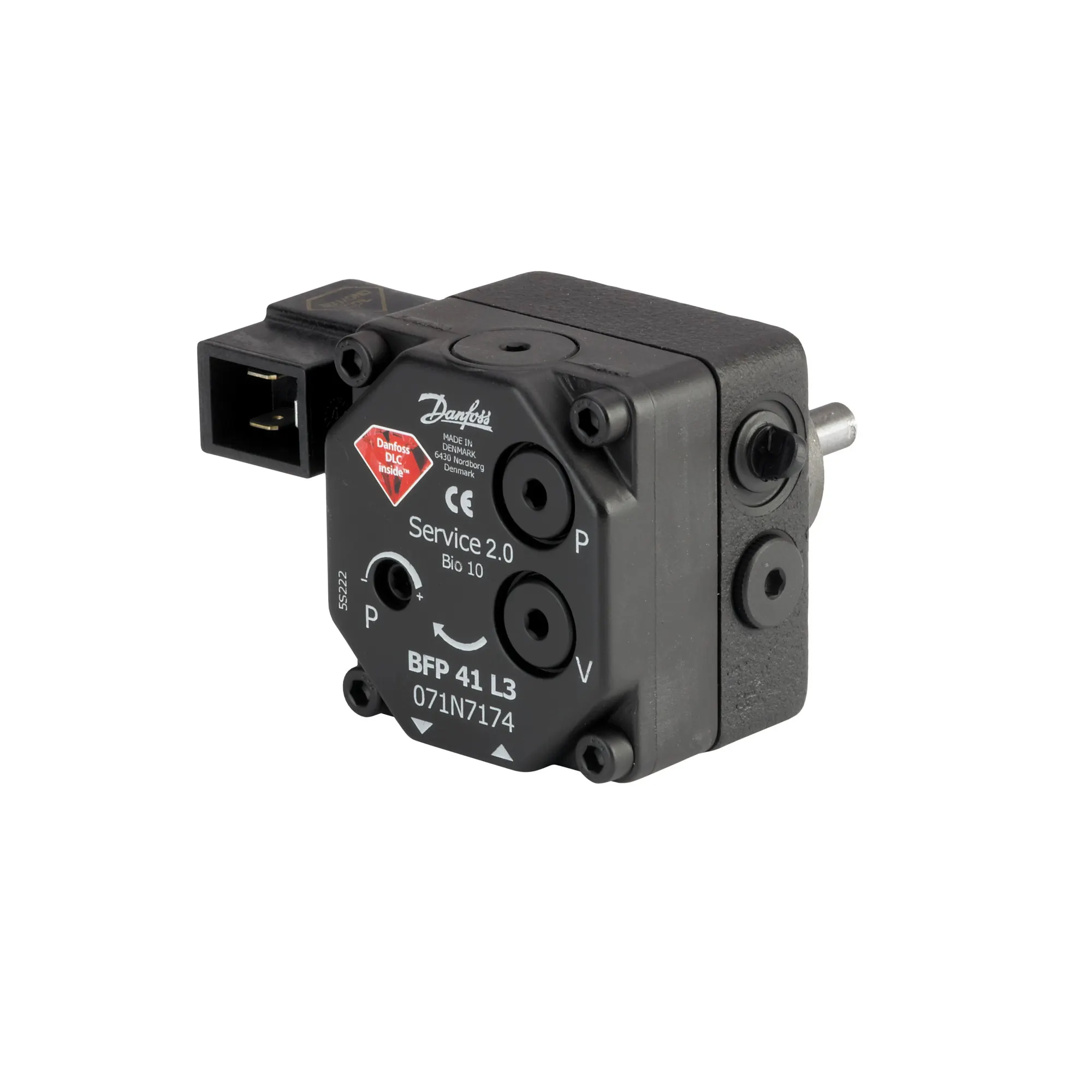

071N3137 Danfoss: BFP 41 L3L LE-S, SERVICE
Gross weight
1.163 Kilogram
Net weight
1.157 Kilogram
Volume
1.925 Liter
EAN
5702425156380
ROTATION
L
1 or 2 stage
1
Actuator type
NC
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
-20 °C
Approval
CE,UKCA,Intertek Semko,DIN CERTCO
Biofuel blend
10
Capacity [l/h]
24 L/h
Capacity group
0-24
Capacity range [l/h] [Max]
24 L/h
Capacity range [l/h] [Min]
0 L/h
CE evaluated
Yes
China RoHS compliance
Out of scope
Closing function
Cut-off
Coil consumption [W]
9 W
Coil Current
AC
Coil voltage [V]
220 - 230
Comments
Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump.
Contain batteries
No
Definition point [l/h]
2800 min-1, 10 bar, 4.3 cSt
Description
BFP 41 L3L LE-S, SERVICE
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)-I,6(c)
Factory pressure setting [bar]
10 bar
Filter area [cm²]
11 cm²
Filter grade [µm]
200
Filter type
Cartridge
Flats/key on the shaft
1 flat
Grade of enclosure
IP40
Media temperature [°C] [Max]
70 °C
Media temperature [°C] [Min]
0 °C
Nozzle/pressure outlet
L
Number of stages
1
Oil pump speed [op/min]
3450 op/min
Oil type
Kerosene/Light oil
Packing format
Multi pack
Pipe connection
2 pipes
Power consumption [W]
42 W
Pressure [bar] [Max]
20 bar
Pressure [bar] [Min]
7 bar
Pressure feed line [bar] [Max]
2 bar
Pressure kerosene [bar] [Max]
12 bar
Product group
Pumps
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
e64eb2f1-7a1d-4e8a-90ee-86caf7676ada
SCIP dossier product name
Oil pump BFP 41 L3 LE S
Serie
BFP
Shaft diameter [mm]
8 mm
Speed [rpm] [Max]
3450 rpm
Speed [rpm] [Min]
2400 rpm
Starting torque [Nm] [Max]
0.1 N-m
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-20 °C
Suction Line Vacuum [bar] [Max]
0.4 bar
Supply peak voltage [V] [Max]
253 V
Supply peak voltage [V] [Min]
207 V
Supply voltage [V]
230 V
Supply voltage [V] [Max]
230 V
Supply voltage [V] [Min]
220 V
Type
BFP 41 LE-S
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
Viscosity [cSt] [Max]
12 cSt
Viscosity [cSt] [Min]
1.3 cSt
071G0200
CABLE FOR NC VALVE, 500 mm OEM
071G0202
CABLE FOR NC VALVE, 280 mm OEM
071G0204
CABLE FOR NC VALVE, 710 mm OEM
071G0206
CABLE FOR NC VALVE, 400 mm OEM
071G0208
CABLE FOR NC VALVE, 630 mm OEM
071G0220
CABLE FOR NC VALVE, 355 mm OEM
071G0235
CABLE FOR NC VALVE, 180 mm OEM
071G2217
CABLE FOR NC VALVE, 1120 mm
071G2218
CABLE FOR NC VALVE, 1300 mm
071G2224
CABLE FOR NC VALVE, 385 mm
Oil Pump BFP 41 Type 3/5
Oil pump type BFP
Soft value overview_Oil Pumps_Controls_Nozzles_PL02
Service Manual Danfoss Burner Components
Soft value overview_Oil Pumps_Controls_Nozzles_PL02
Service Handbook Danfoss Burner Components
Danfoss EU-UK 071NP.05
SEMKO SE-S-2101293R3
Oil pumps BFP/BFA/BFM
Danfoss MD 071NP.05
071N7174_BFP_Service_Pump_L2
