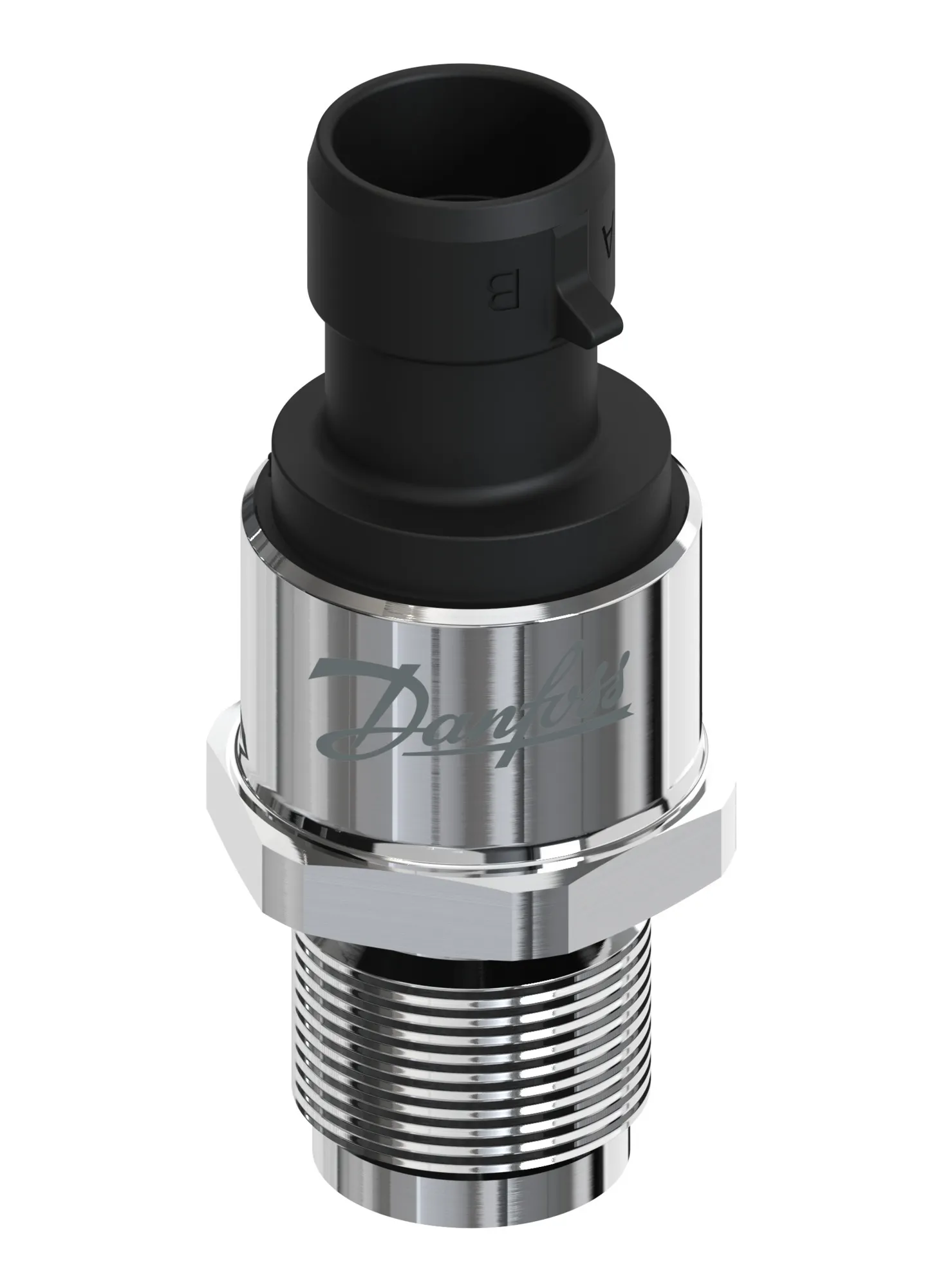

075G4193
Part Number: 075G4193
Product Information
Extended Description
075G4193 Danfoss: Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Metri-Pack 150 Series, Pressure connection type: G, Pressure connection size: 1/2-B, Specification key: DST P140-2411-C2AB08-0
Gross weight
0.101 Kilogram
Net weight
0.087 Kilogram
Volume
0.086 Liter
EAN
5715162599556
+ supply
Pin B
- common
Pin A
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
CE evaluated
Yes
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
-40 °C
Contain batteries
No
Electrical connection
Metri-Pack 150 Series
Electrical connection size
3 pin
Electrical connection standard
NONE
Electrical Connector Color
Black
Enclosure rating IP
IP69K
EU RoHS compliance
Yes
High Clipping Level
20.5
Housing material
304L
Identical product
075G1240
In scope of WEEE
Yes
International Article Number
5715162599556
Low Clipping level
3.8
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
100 bar
Overload pressure max. [psi]
1450 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/2-B
Pressure connection standard
EN 837-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
25 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
362.5 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Gauge (relative)
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
REACH Candidate List substances
No
Response time max. [ms]
2 ms
Specification key
DST P140-2411-C2AB08-0
Supply voltage [V] DC [max]
28 V
Supply voltage [V] DC [min]
8 V
TEB inside CTR ±FS [%]
3 %
Type
DST P140
Wetted part material
304L/316L
