075G4207

Part Number: 075G4207
075G4207
Manufacturer
Danfoss
Part number
075G4207
Category

Product Information

Extended Description

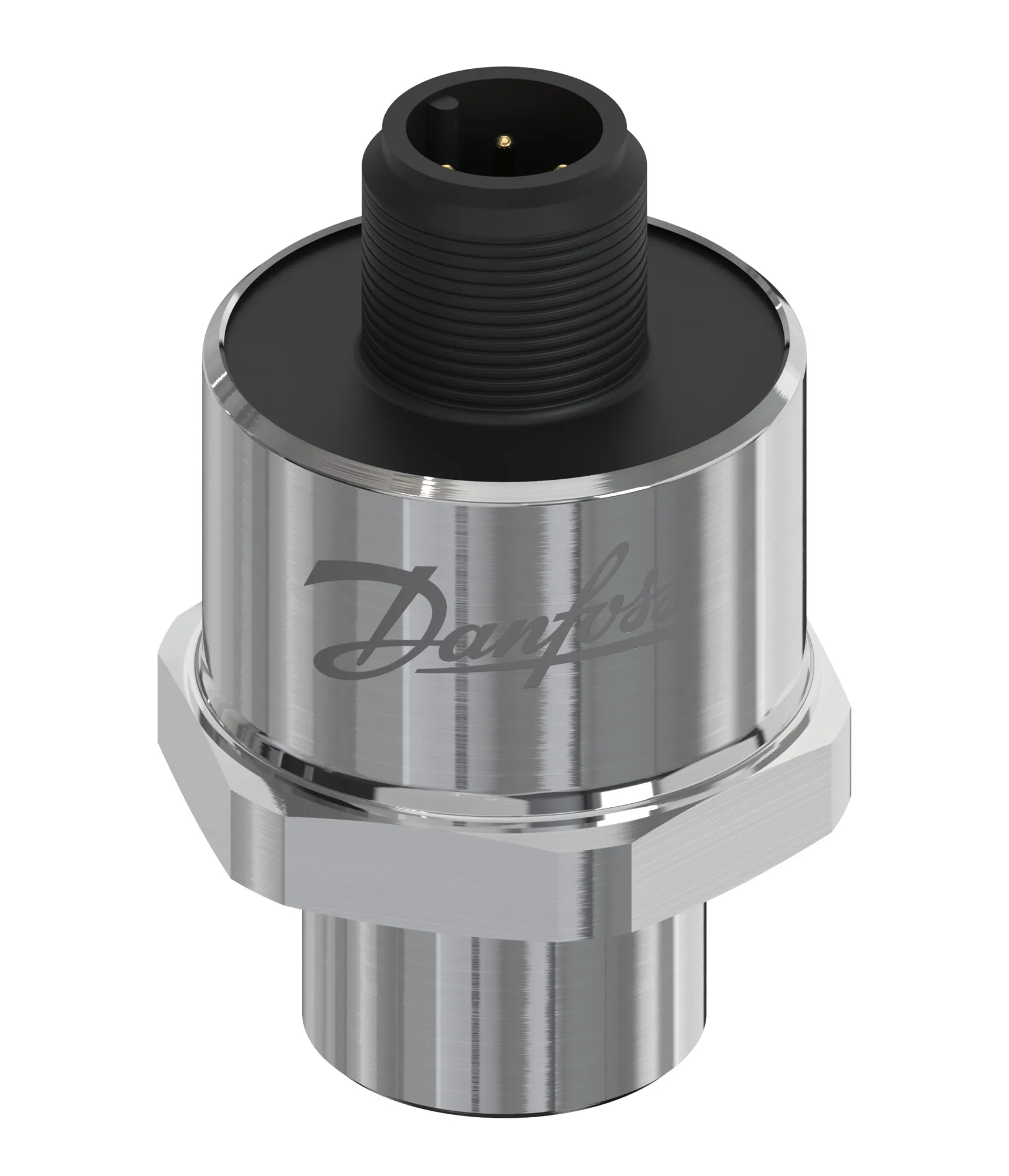

075G4207 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: DST P110-DG31-A5BF08-0
Gross weight
0.071 Kilogram
Net weight
0.059 Kilogram
EAN
5715162707128
+ supply
Pin 1
- common
Pin 3
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
CE evaluated
Yes
Compensated temp. range [°C] [max]
80 °C
Compensated temp. range [°C] [min]
-40 °C
Contain batteries
No
Electrical connection
M12 x 1
Electrical connection size
4 pin
Electrical connection standard
IEC 61076-2-101
Electrical Connector Color
Black
Enclosure rating IP
IP67
EU RoHS compliance
Yes
High Clipping Level
21.5
Housing material
304L
Identical product
075G1255
In scope of WEEE
Yes
International Article Number
5715162707128
Low Clipping level
3.8
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
140 bar
Overload pressure max. [psi]
2030 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
7/16-20
Pressure connection standard
SAE J513 45° flare
Pressure connection type
UNF
Pressure Male/Female
Female
Pressure range [bar] [max]
34 bar
Pressure range [bar] [min]
-1 bar
Pressure range [psi] [max]
493 psi
Pressure range [psi] [min]
-14.5 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
REACH Candidate List substances
No
Response time max. [ms]
2 ms
Specification key
DST P110-DG31-A5BF08-0
Supply voltage [V] DC [max]
28 V
Supply voltage [V] DC [min]
8 V
TEB inside CTR ±FS [%]
2 %
Type
DST P110
Wetted part material
304L/316L
Pressure transmitter, type DST P110 Pressure transmitters DST P1XX Danfoss EU-UK 075R0010.04 UL E31024 UL E494625 UL E510763 UL DEMKO 23 ATEX 3017U Rev. 0 UL Demko IECEx_ULD_23.0014U_000 UL E227388 UL23UKEX2865U Rev. 0 Pressure & Temperature Sensors NSF C0252992 Pressure transmitter DST P1XX, M12x1, 7/16-20 UNF
