075G4210
Part Number: 075G4210
Product Information
Extended Description

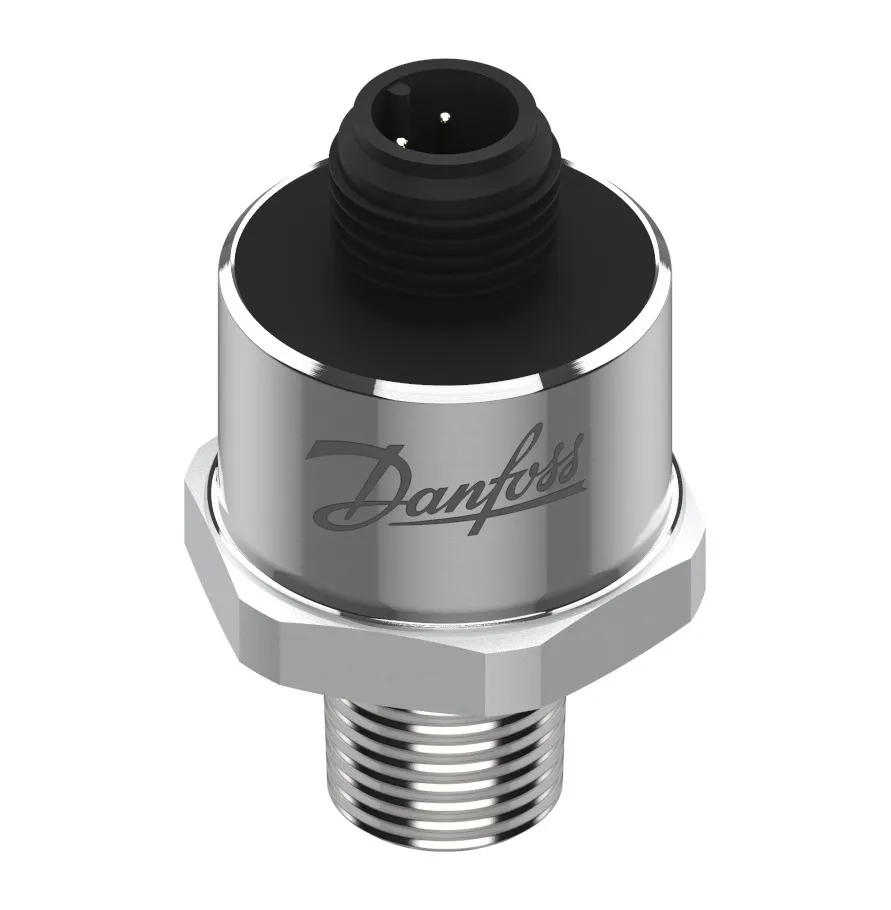

075G4210 Danfoss: Pressure reference: Absolute, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/4-A, Specification key: DST P140-AM21-A5GB04-1
Gross weight
0.067 Kilogram
Net weight
0.055 Kilogram
Volume
0.086 Liter
EAN
5715162849774
+ supply
Pin 1
- common
Pin 3
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
CE evaluated
Yes
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
-40 °C
Contain batteries
No
Electrical connection
M12 x 1
Electrical connection size
4 pin
Electrical connection standard
IEC 60947-5-2(1997)
Electrical Connector Color
Black
Enclosure rating IP
IP67
EU RoHS compliance
Yes
High Clipping Level
20.5
Housing material
304L
Identical product
075G1261
In scope of WEEE
Yes
International Article Number
5715162849774
Low Clipping level
3.8
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
5 bar
Overload pressure max. [psi]
73 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4-A
Pressure connection standard
ISO 1179-2
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
1.25 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
18.13 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Absolute
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
REACH Candidate List substances
No
Response time max. [ms]
2 ms
Specification key
DST P140-AM21-A5GB04-1
Supply voltage [V] DC [max]
28 V
Supply voltage [V] DC [min]
8 V
TEB inside CTR ±FS [%]
3 %
Type
DST P140
Wetted part material
304L/316L
