075G4219

Part Number: 075G4219
075G4219
Manufacturer
Danfoss
Part number
075G4219
Category

Product Information

Extended Description

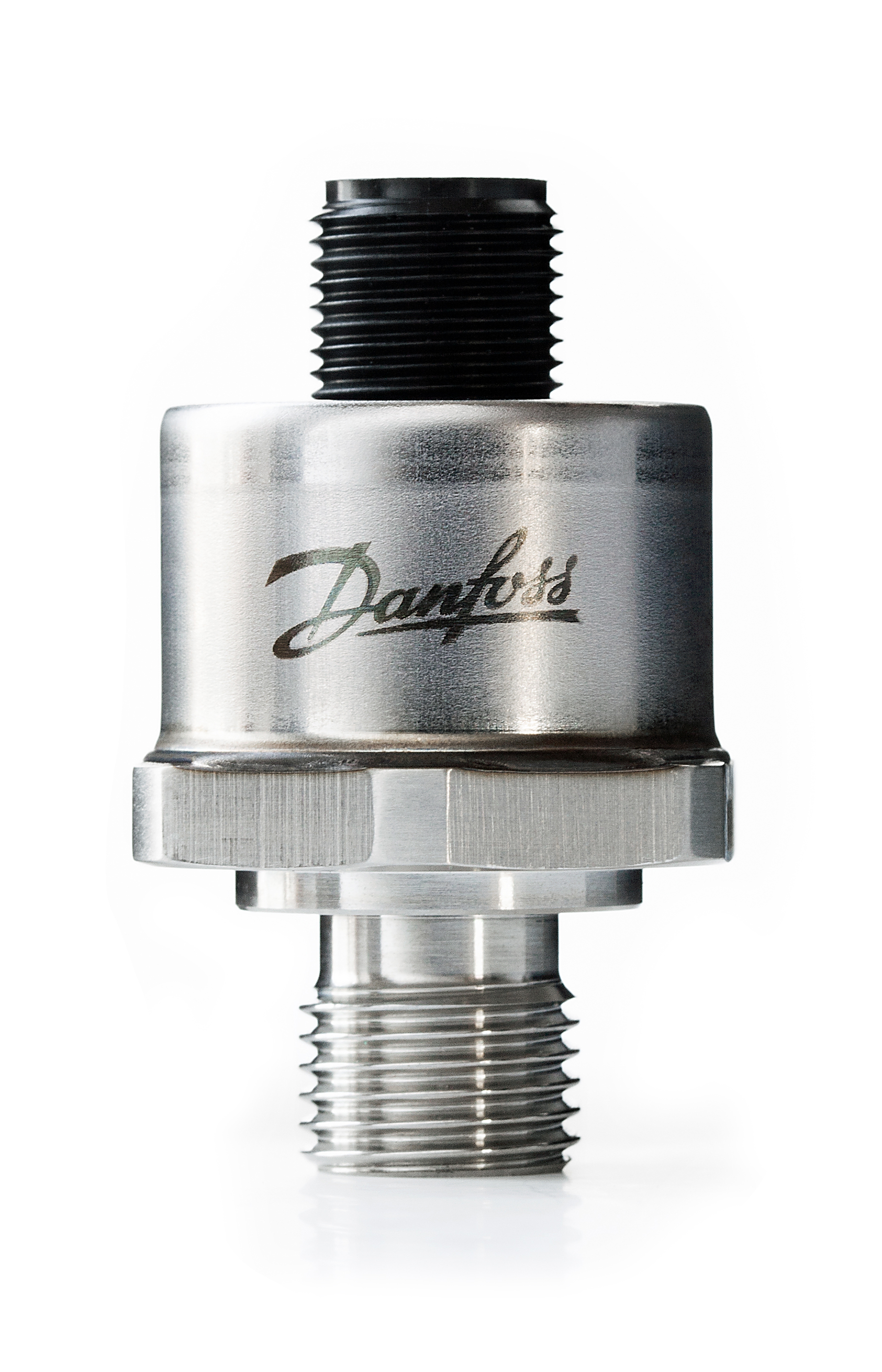

075G4219 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/4-A, Specification key: DST P140-8531-A5GB04-1
Gross weight
0.067 Kilogram
Net weight
0.055 Kilogram
Volume
0.086 Liter
EAN
5715162900345
+ supply
Pin 1
- common
Pin 3
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
CE evaluated
Yes
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
-40 °C
Contain batteries
No
Electrical connection
M12 x 1
Electrical connection size
4 pin
Electrical connection standard
IEC 61076-2-101
Electrical Connector Color
Black
Enclosure rating IP
IP67
EU RoHS compliance
Yes
High Clipping Level
20.5
Housing material
304L
Identical product
075G1275
In scope of WEEE
Yes
International Article Number
5715162900345
Low Clipping level
3.8
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
15 bar
Overload pressure max. [psi]
217 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4-A
Pressure connection standard
ISO 1179-2
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
3 bar
Pressure range [bar] [min]
-1 bar
Pressure range [psi] [max]
43.5 psi
Pressure range [psi] [min]
-14.5 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
REACH Candidate List substances
No
Response time max. [ms]
2 ms
Specification key
DST P140-8531-A5GB04-1
Supply voltage [V] DC [max]
28 V
Supply voltage [V] DC [min]
8 V
TEB inside CTR ±FS [%]
3 %
Type
DST P140
Wetted part material
304L/316L
Pressure transmitter, type DST P140 Pressure transmitters DST P1XX Danfoss EU-UK 075R0010.04 UL E31024 UL E494625 UL E510763 UL DEMKO 23 ATEX 3017U Rev. 0 UL Demko IECEx_ULD_23.0014U_000 UL E227388 UL23UKEX2865U Rev. 0 Pressure & Temperature Sensors NSF C0252992 Pressure transmitter DST P1XX, M 12 DST P140 4-20mA(-1-5 bar SG)
