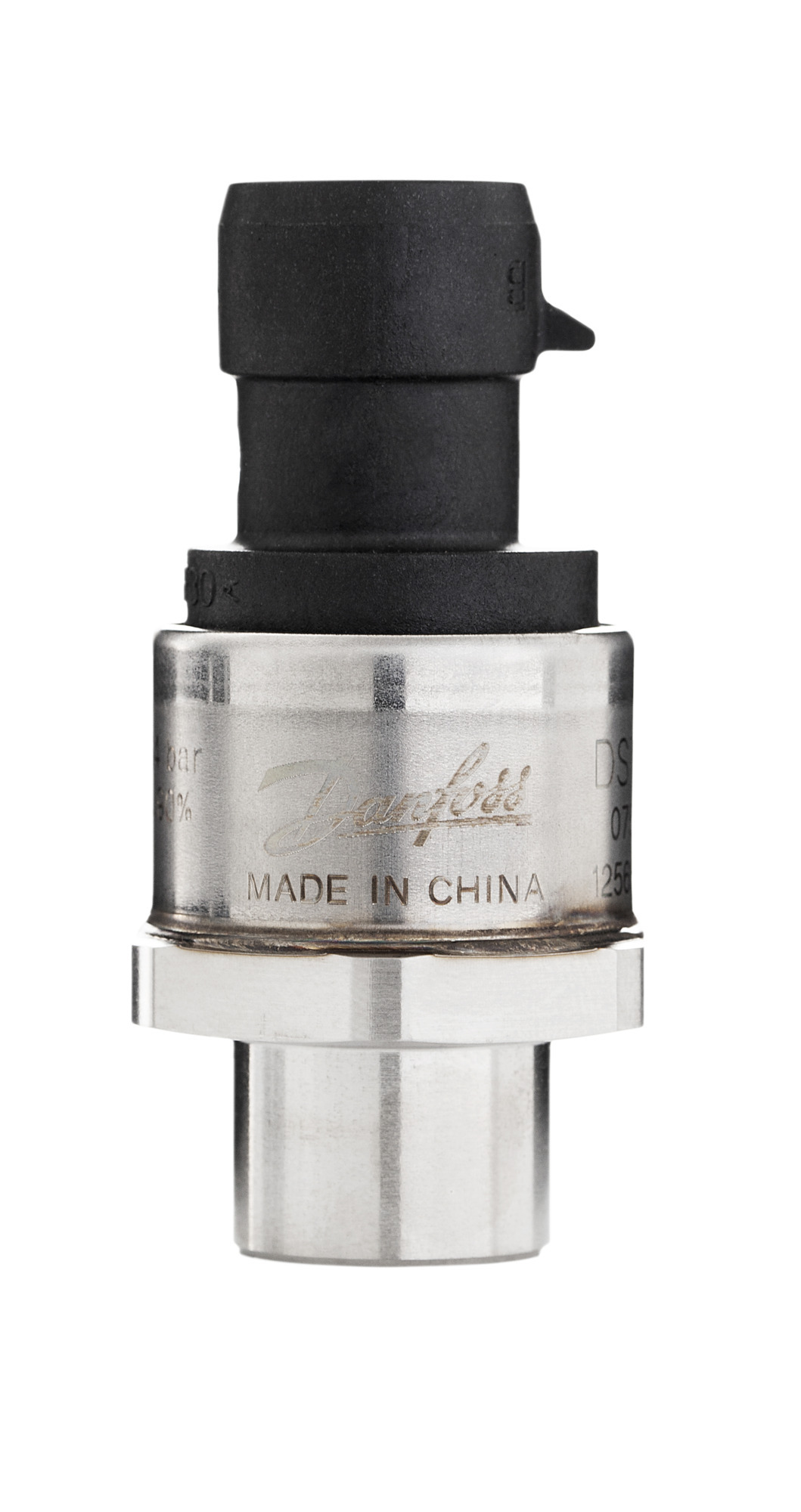

075G4235

Part Number: 075G4235
075G4235
Manufacturer
Danfoss
Part number
075G4235
Category

Product Information

Extended Description

075G4235 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Metri-Pack 150 Series, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: DST P110-J331-C2BF08-0
Gross weight
0.074 Kilogram
Net weight
0.062 Kilogram
Volume
0.086 Liter
EAN
5715255008880
+ supply
Pin B
- common
Pin A
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
CE evaluated
Yes
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
-40 °C
Contain batteries
No
Electrical connection
Metri-Pack 150 Series
Electrical connection size
3 pin
Electrical connection standard
NONE
Electrical Connector Color
Black
Enclosure rating IP
IP69K
EU RoHS compliance
Yes
Fault signal level
2
High Clipping Level
20.5
Housing material
304L
Identical product
075G1293
In scope of WEEE
Yes
International Article Number
5715255008880
Low Clipping level
3.8
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
184 bar
Overload pressure max. [psi]
2668 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
7/16-20
Pressure connection standard
SAE J513 45° flare
Pressure connection type
UNF
Pressure Male/Female
Female
Pressure range [bar] [max]
46 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
667 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
REACH Candidate List substances
No
Response time max. [ms]
2 ms
Specification key
DST P110-J331-C2BF08-0
Supply voltage [V] DC [max]
28 V
Supply voltage [V] DC [min]
8 V
TEB inside CTR ±FS [%]
3 %
Type
DST P110
Wetted part material
304L/316L
Pressure transmitter, type DST P110 Pressure transmitters DST P1XX Danfoss EU-UK 075R0010.04 UL E31024 UL E494625 UL E510763 UL DEMKO 23 ATEX 3017U Rev. 0 UL Demko IECEx_ULD_23.0014U_000 UL E227388 UL23UKEX2865U Rev. 0 Pressure & Temperature Sensors NSF C0252992 Pressure transmitter, DST P110, Round Packard, high, female flare, Upwards
