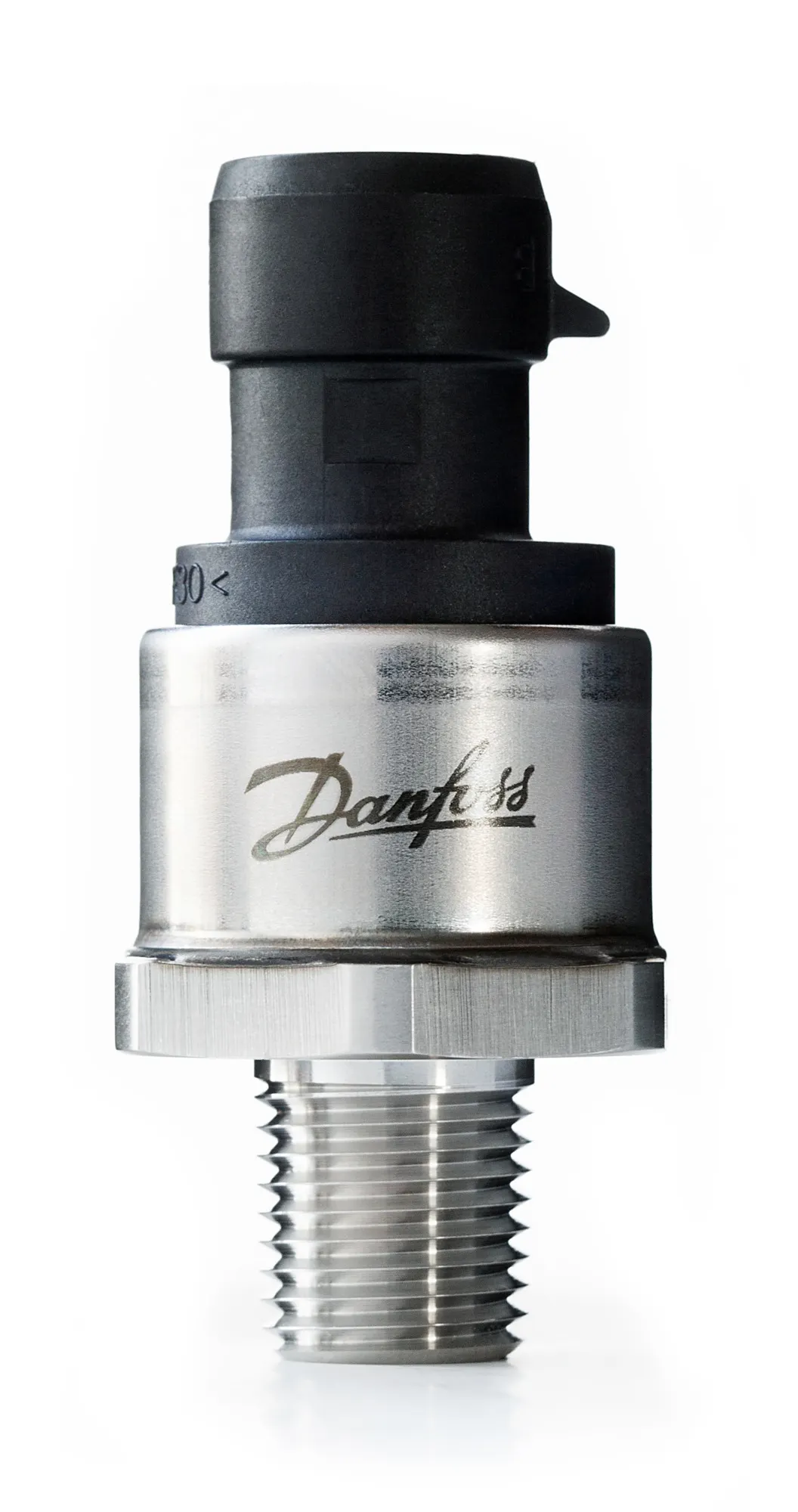

075G4239
Part Number: 075G4239
Product Information
Extended Description
075G4239 Danfoss: Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Metri-Pack 150 Series, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: DST P140-5816-C2AC04-0
Gross weight
0.072 Kilogram
Net weight
0.06 Kilogram
Volume
0.086 Liter
EAN
5715255007197
+ output
Pin C
+ supply
Pin B
- common
Pin A
Ambient temperature range [°C] [max]
125 °C
Ambient temperature range [°C] [min]
-40 °C
CE evaluated
Yes
Compensated temp. range [°C] [max]
135 °C
Compensated temp. range [°C] [min]
-40 °C
Contain batteries
No
Electrical connection
Metri-Pack 150 Series
Electrical connection size
3 pin
Electrical connection standard
NONE
Electrical Connector Color
Black
Enclosure rating IP
IP69K
EU RoHS compliance
Yes
High Clipping Level
92
Housing material
304L
Identical product
075G1301
In scope of WEEE
Yes
International Article Number
5715255007197
Low Clipping level
8
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Ratio metric
Overload pressure max. [bar]
27.5 bar
Overload pressure max. [psi]
400 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4-18
Pressure connection standard
None
Pressure connection type
NPT
Pressure Male/Female
Male
Pressure range [bar] [max]
6.9 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
100 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Gauge (relative)
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
Ratiometric of Vsupply [%] [max]
90 %
Ratiometric of Vsupply [%] [min]
10 %
REACH Candidate List substances
No
Response time max. [ms]
2 ms
Specification key
DST P140-5816-C2AC04-0
Supply voltage [V] DC
5 V
TEB inside CTR ±FS [%]
3 %
Type
DST P140
Wetted part material
304L/316L
