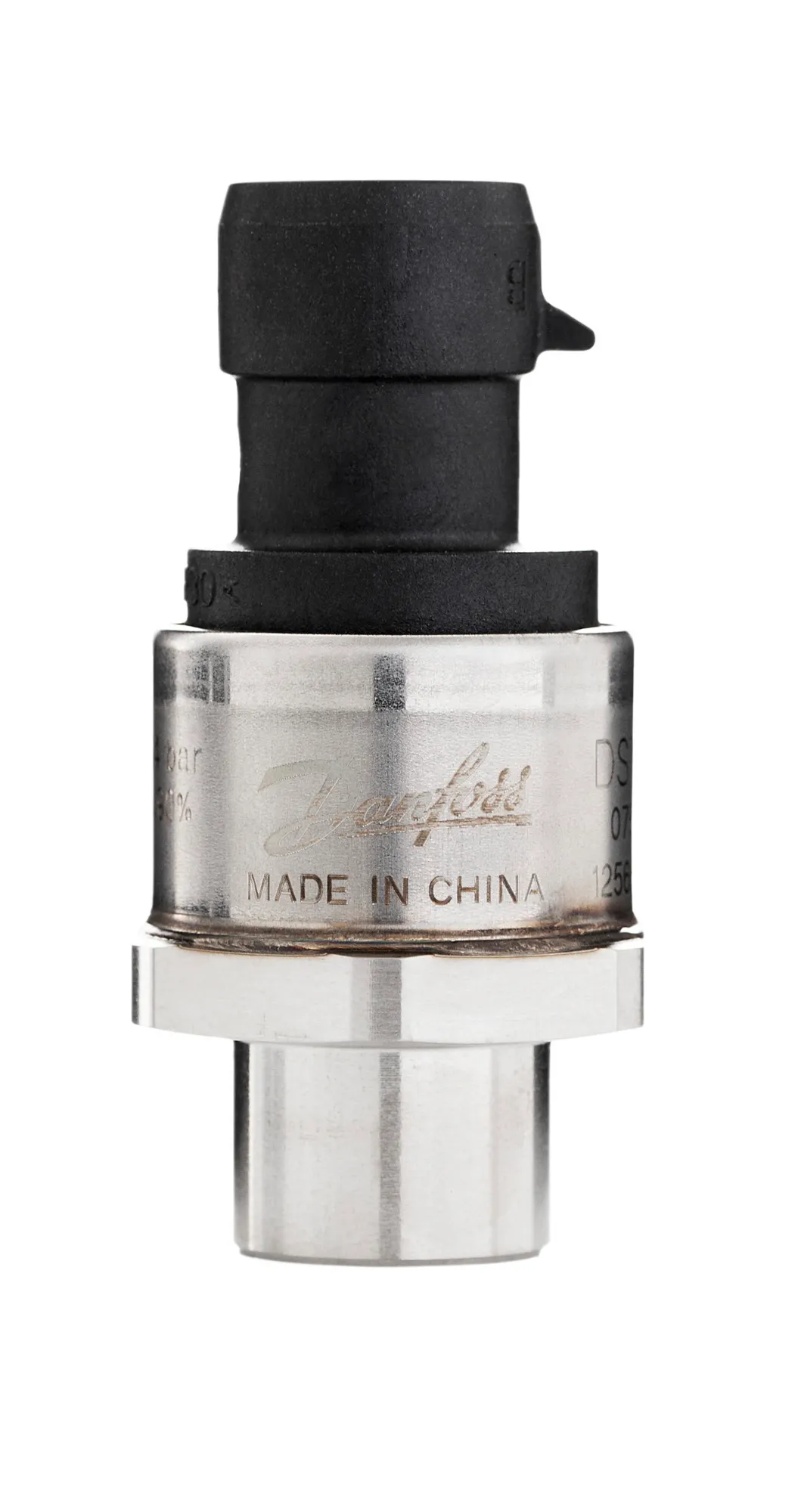

075G4242

Part Number: 075G4242
075G4242
Manufacturer
Danfoss
Part number
075G4242
Category

Product Information

Extended Description

075G4242 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Metri-Pack 150 Series, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: DST P110-D431-C2BF08-0
Gross weight
0.074 Kilogram
Net weight
0.062 Kilogram
Volume
0.086 Liter
EAN
5715255010517
+ supply
Pin B
- common
Pin A
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
-40 °C
Electrical connection
Metri-Pack 150 Series
Electrical connection size
3 pin
Electrical connection standard
NONE
Electrical Connector Color
Black
Enclosure rating IP
IP69K
Fault signal level
21.5
High Clipping Level
20.5
Housing material
304L
Identical product
075G1304
International Article Number
5715255010517
Low Clipping level
3.8
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-40 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
155 bar
Overload pressure max. [psi]
2248 psi
Packing format
Industrial pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
7/16-20
Pressure connection standard
SAE J513 45° flare
Pressure connection type
UNF
Pressure Male/Female
Female
Pressure range [bar] [max]
40 bar
Pressure range [bar] [min]
-1 bar
Pressure range [psi] [max]
580 psi
Pressure range [psi] [min]
-14.5 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
60 pc
Response time max. [ms]
2 ms
Specification key
DST P110-D431-C2BF08-0
Supply voltage [V] DC [max]
28 V
Supply voltage [V] DC [min]
8 V
TEB inside CTR ±FS [%]
3 %
Type
DST P110
Wetted part material
304L/316L
Pressure transmitter, type DST P110 Pressure transmitters DST P1XX Danfoss EU-UK 075R0010.04 UL E31024 UL E494625 UL E510763 UL DEMKO 23 ATEX 3017U Rev. 0 UL Demko IECEx_ULD_23.0014U_000 UL E227388 UL23UKEX2865U Rev. 0 Pressure & Temperature Sensors NSF C0252992 Pressure transmitter, DST P110, Round Packard, high, female flare, Upwards
