076G1011

Part Number: 076G1011
076G1011
Manufacturer
Danfoss
Part number
076G1011
Category

Product Information

Extended Description

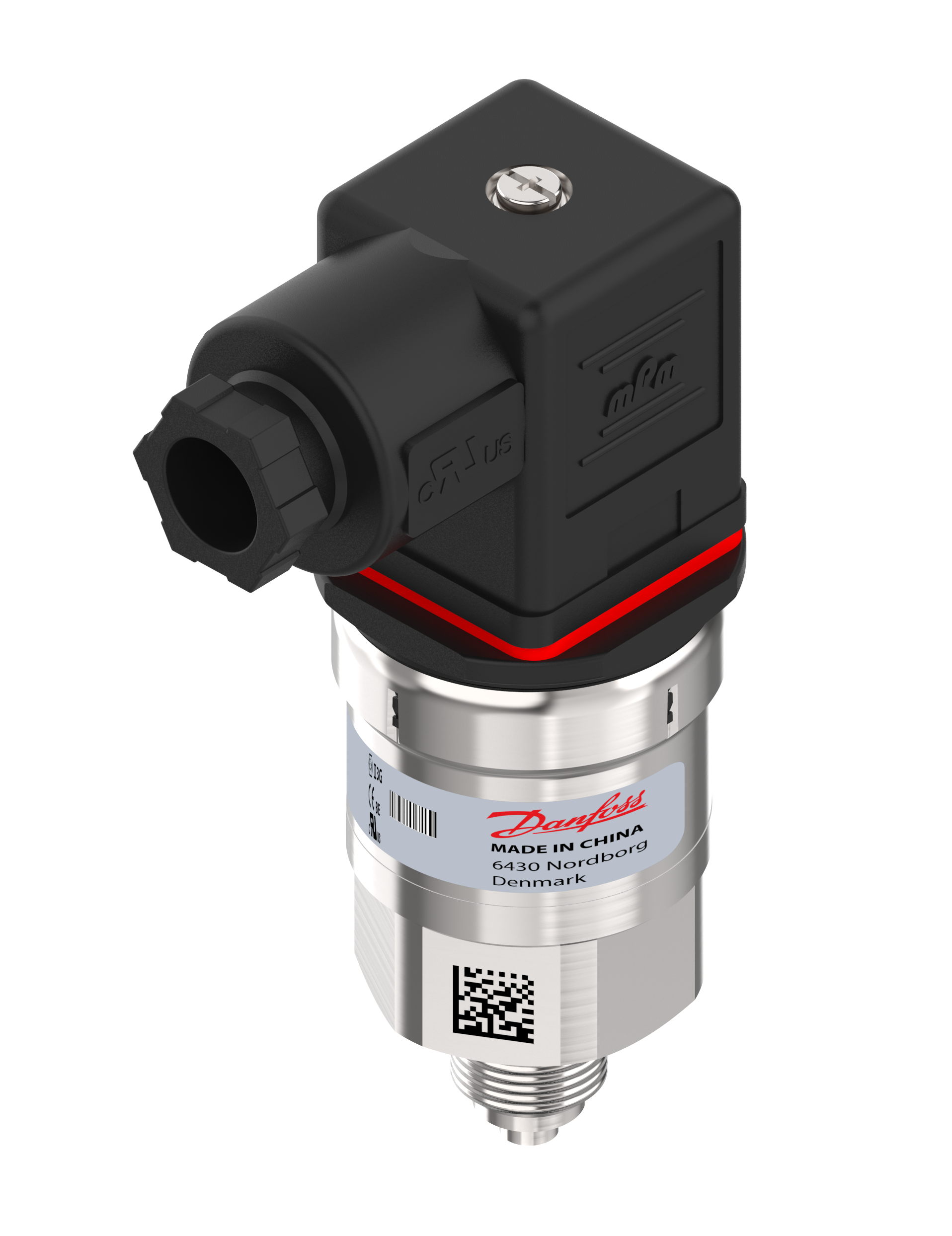

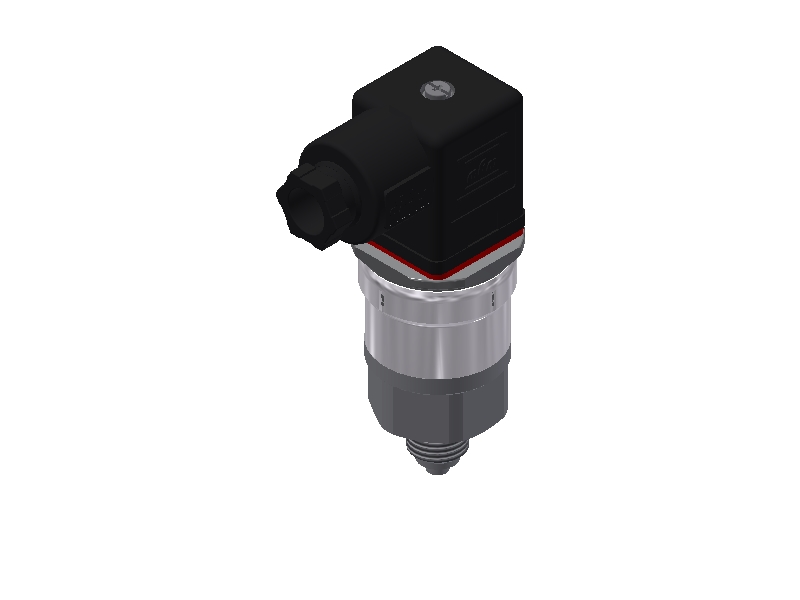

076G1011 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: DST P300-2031-A1AB04-0
Gross weight
0.173 Kilogram
Net weight
0.153 Kilogram
Volume
0.411 Liter
EAN
5702424505127
+ supply
Pin 1
- common
Pin 2
Accuracy, max. [±FS%]
1 %
Accuracy, typical [±FS%]
0.5 %
Adj. zero point and span
No
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX
Approval comments
ATEX Ex ec IIA T4 Gc
CE evaluated
Yes
China RoHS compliance
Out of scope
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
-40 °C
Compensated temp. range [°F] [max]
212 °F
Compensated temp. range [°F] [min]
-40 °F
Contain batteries
No
Electrical conn. Male/Female
Male and Female
Electrical connection
Angular connector
Electrical connection size
Pg 9
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Fault signal level
21.5
Flush diaphragm
No
High Clipping Level
20.5
International Article Number
5702424505127
Intrinsically safe
No
Low Clipping level
3.8
Medium temperature range [°C] [max]
125 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
257 °F
Medium temperature range [°F] [min]
-40 °F
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
60 bar
Overload pressure max. [psi]
870 psi
Packing format
Multi pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4
Pressure connection standard
EN 837
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
10 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
145 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
14 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
4 ms
SCIP dossier no.
cad3914f-8db1-488c-b0ad-3a20ac1ebb41
SCIP dossier product name
DST P300
Specification key
DST P300-2031-A1AB04-0
Supply voltage [V] DC [max]
32 V
Supply voltage [V] DC [min]
9 V
Type
DST P300
UK RoHS compliance
Out of scope
