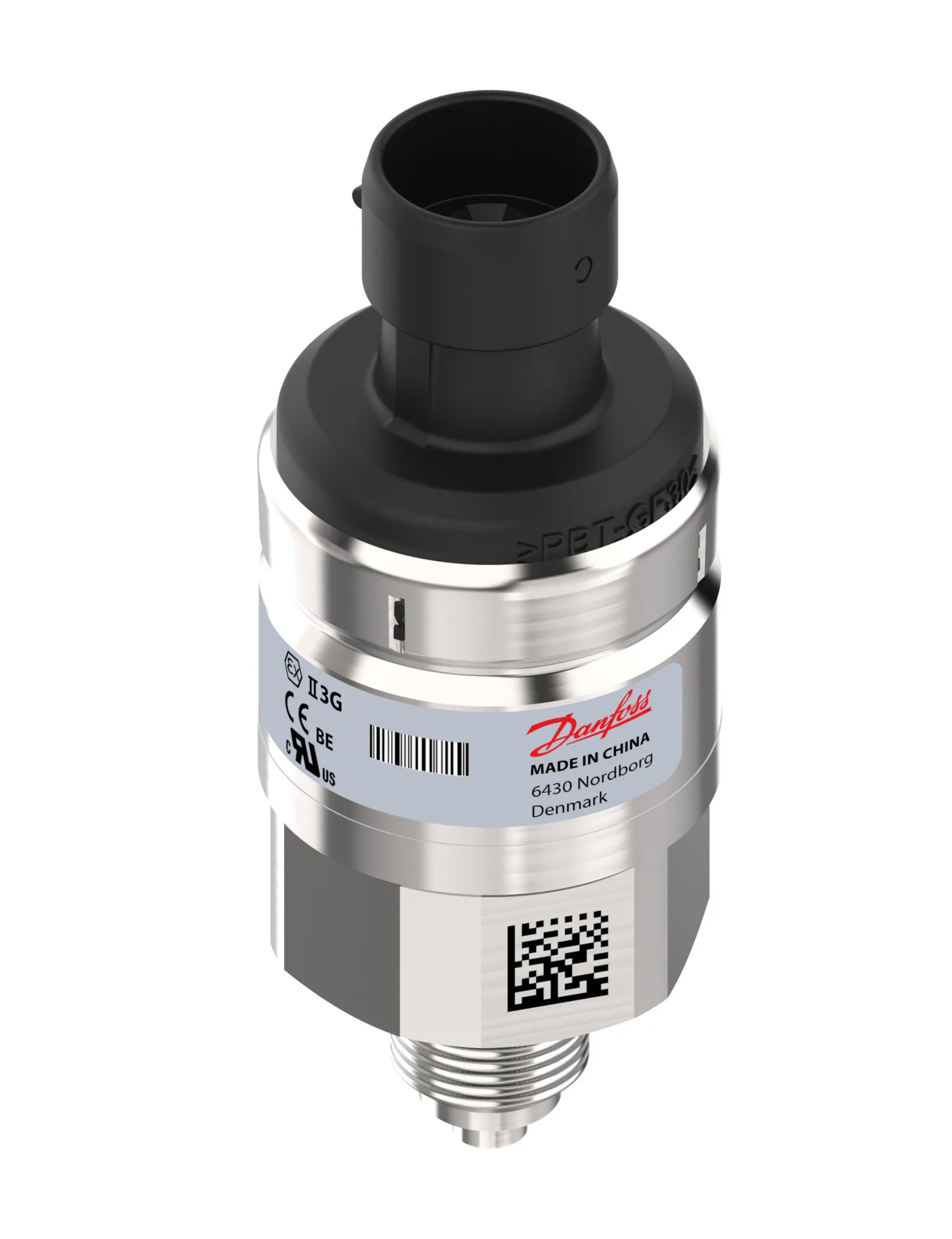

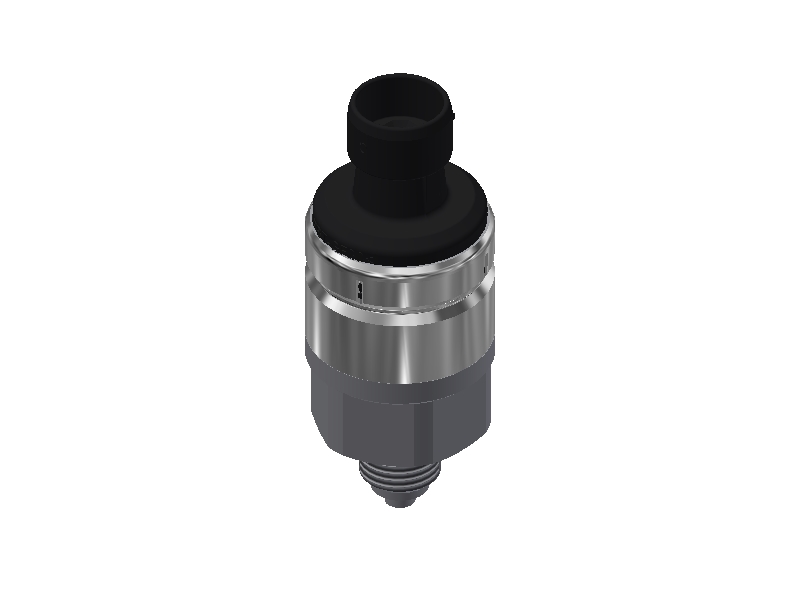

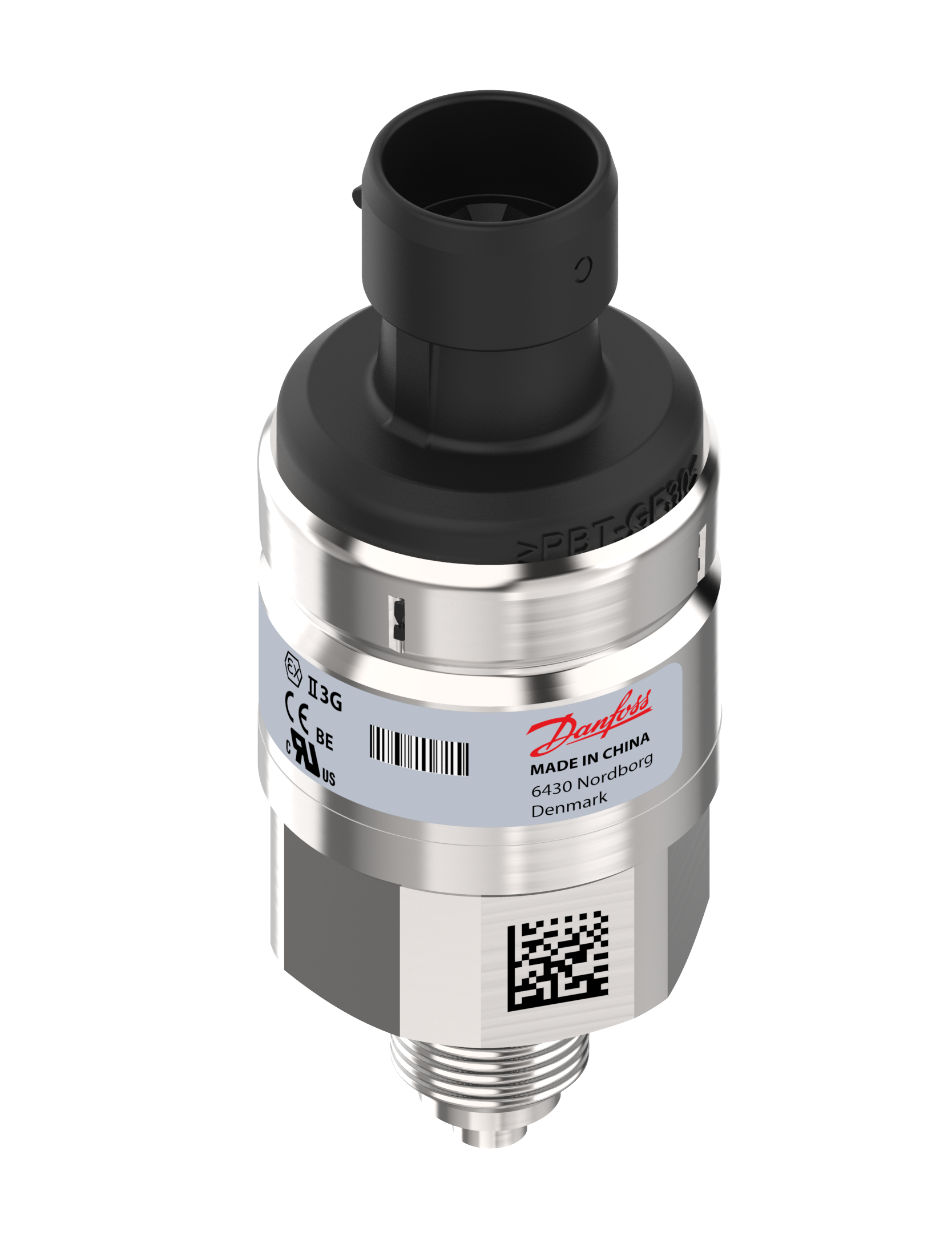

076G1012
Part Number: 076G1012
Product Information
Extended Description
076G1012 Danfoss: Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: G, Pressure connection size: 1/4, Specification key: DST P300-2036-C2AB04-0
Gross weight
0.132 Kilogram
Net weight
0.115 Kilogram
Volume
0.253 Liter
EAN
5702424505110
+ output
Pin 3
+ supply
Pin 1
- common
Pin 2
Accuracy, max. [±FS%]
1 %
Accuracy, typical [±FS%]
0.5 %
Adj. zero point and span
No
Ambient temperature range [°C] [max]
125 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
257 °F
Ambient temperature range [°F] [min]
-40 °F
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Electrical conn. Male/Female
Male
Electrical connection
Round Packard Metri-Pack
Electrical connection size
3 pin
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Fault signal level
2
Flush diaphragm
No
High Clipping Level
99
International Article Number
5702424505110
Intrinsically safe
No
Low Clipping level
4
Medium temperature range [°C] [max]
125 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
257 °F
Medium temperature range [°F] [min]
-40 °F
Output signal
Ratio metric
Overload pressure max. [bar]
60 bar
Packing format
Multi pack
Pressure connection HEX [mm]
27 mm
Pressure connection notes
B
Pressure connection size
1/4
Pressure connection standard
EN 837
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
10 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
145 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
20 pc
Ratiometric of Vsupply [%] [max]
90 %
Ratiometric of Vsupply [%] [min]
10 %
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
4 ms
SCIP dossier no.
cad3914f-8db1-488c-b0ad-3a20ac1ebb41
SCIP dossier product name
DST P300
Specification key
DST P300-2036-C2AB04-0
Supply voltage [V] DC [max]
5.5 V
Supply voltage [V] DC [min]
4.5 V
Type
DST P300
UK RoHS compliance
Out of scope
