076G1019

Part Number: 076G1019
076G1019
Manufacturer
Danfoss
Part number
076G1019
Category

Product Information

Extended Description

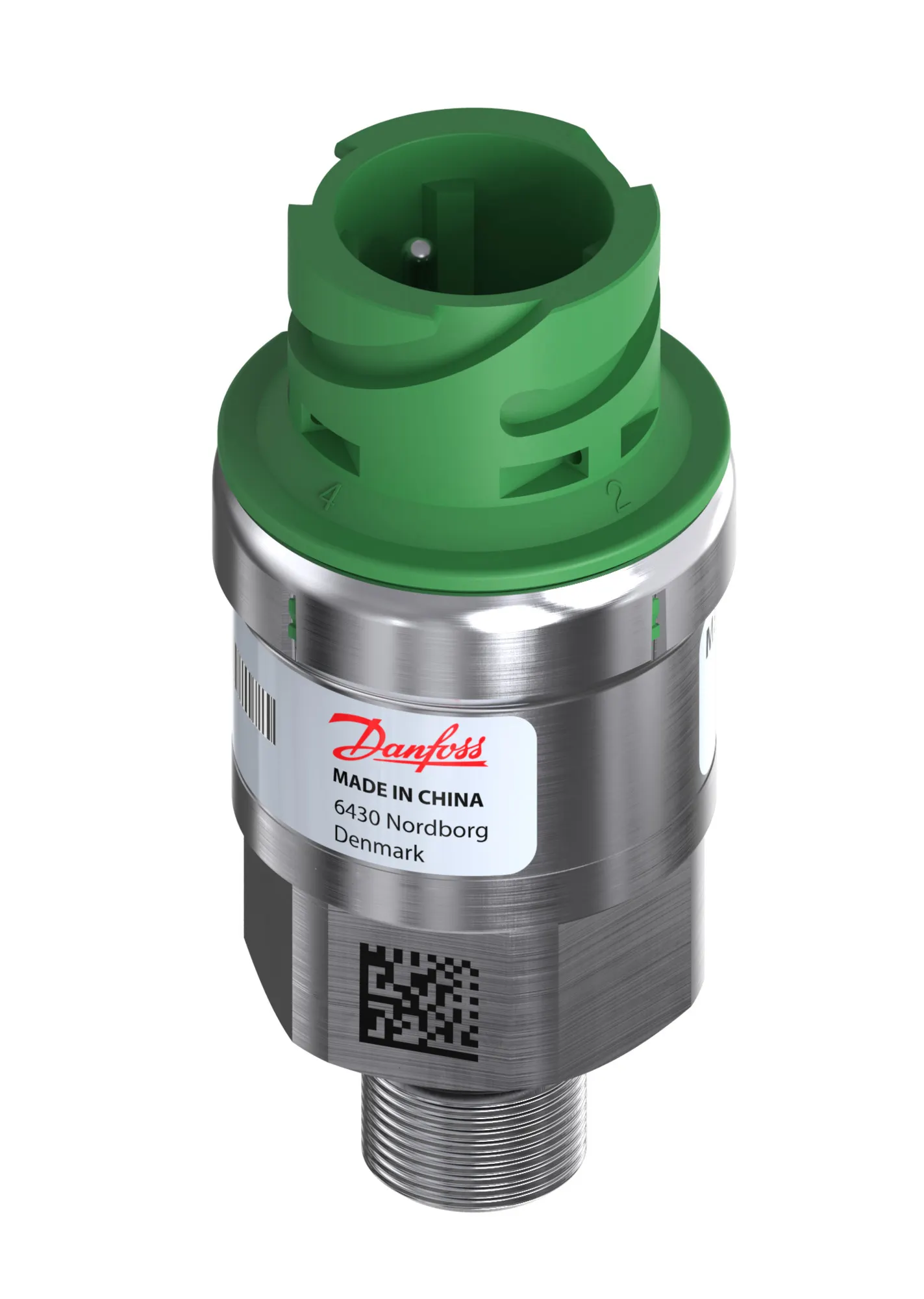

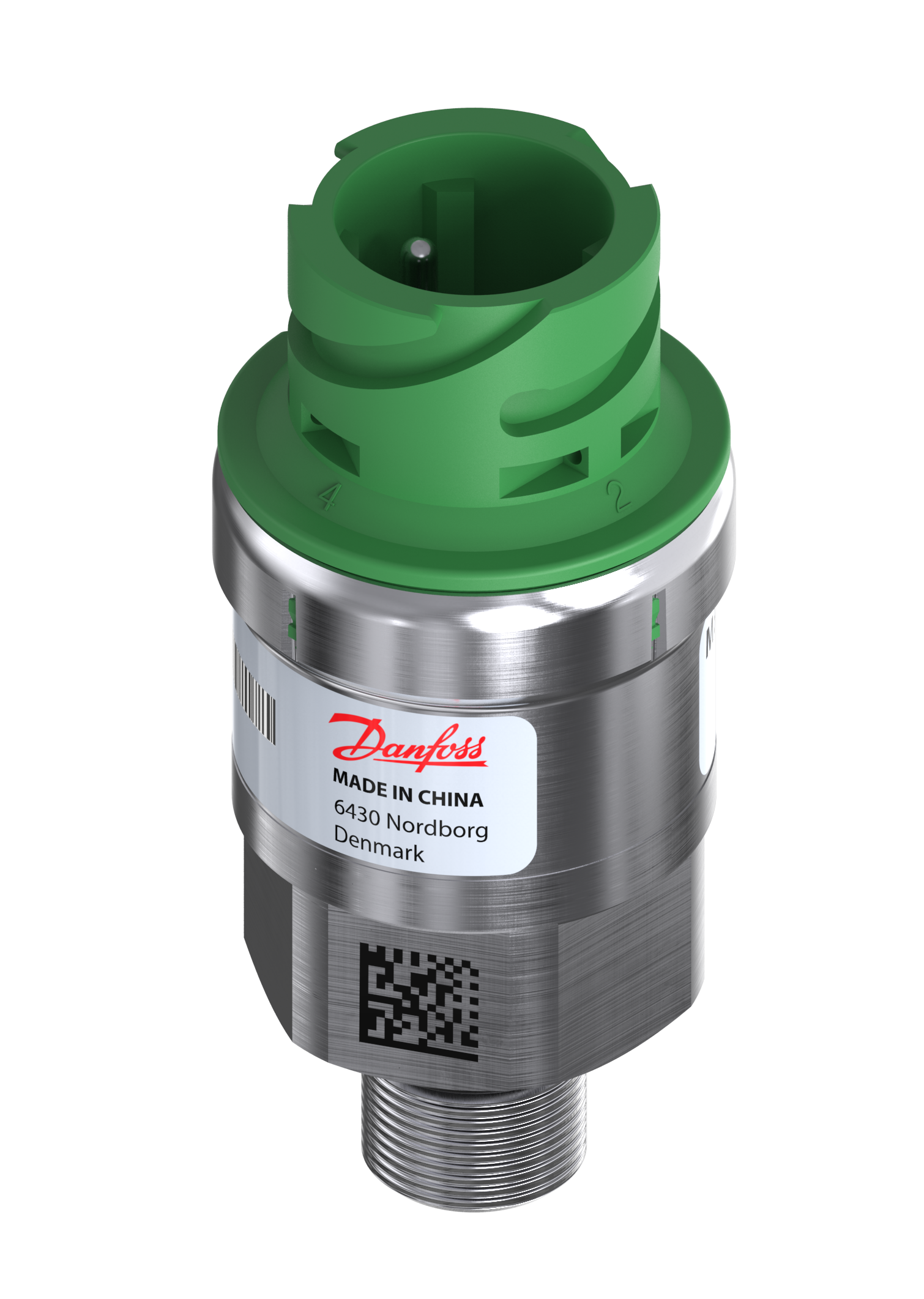

076G1019 Danfoss: Pressure reference: Absolute, Output signal: Ratio metric, Electrical connection: Bayonet, Pressure connection type: UNF, Pressure connection size: 9/16-18, Specification key: DST P300-6026-G3CD16-3
Gross weight
0.157 Kilogram
Net weight
0.116 Kilogram
Volume
0.253 Liter
EAN
5702424586089
+ output
Pin 3
+ supply
Pin 1
- common
Pin 2
Accuracy, max. [±FS%]
1 %
Accuracy, typical [±FS%]
0.3 %
Adj. zero point and span
No
Ambient temperature range [°C] [max]
125 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
257 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX
Approval comments
ATEX Ex ec IIA T4 Gc
CE evaluated
Yes
China RoHS compliance
Out of scope
Compensated temp. range [°C] [max]
100 °C
Compensated temp. range [°C] [min]
0 °C
Compensated temp. range [°F] [max]
212 °F
Compensated temp. range [°F] [min]
32 °F
Contain batteries
No
Electrical conn. comments
A3-3.1-AU Ø31- Green
Electrical conn. Male/Female
Male
Electrical connection
Bayonet
Electrical connection size
3 pin
Electrical connection standard
ISO 15170
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Flush diaphragm
No
High Clipping Level
96
International Article Number
5702424586089
Intrinsically safe
No
Low Clipping level
4
Medium temperature range [°C] [max]
125 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
257 °F
Medium temperature range [°F] [min]
-40 °F
Non-linearity BFSL [±FS%]
0.2 %
Output signal
Ratio metric
Overload pressure max. [psi]
900 psi
Packing format
Multi pack
Pressure connection HEX [mm]
32 mm
Pressure connection size
9/16-18
Pressure connection standard
ISO 11926
Pressure connection type
UNF
Pressure Male/Female
Male
Pressure range [bar] [max]
10.3 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
150 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Absolute
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
20 pc
Ratiometric of Vsupply [%] [max]
90 %
Ratiometric of Vsupply [%] [min]
10 %
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
4 ms
SCIP dossier no.
cad3914f-8db1-488c-b0ad-3a20ac1ebb41
SCIP dossier product name
DST P300
Specification key
DST P300-6026-G3CD16-3
Supply voltage [V] DC [max]
5.5 V
Supply voltage [V] DC [min]
4.5 V
Type
DST P300
UK RoHS compliance
Out of scope
Pressure transmitter for general industrial purposes with diagnostics DST P300 Pressure Transmitters, MBS 33, MBS 33M, MBS 3000, MBS 3050, MBS 3200, MBS 3250, MBS 3300, MBS 3350, MBS 4000, MBS 4050, MBS 4003, MBS 4010, DST P300, DST P310, DST P30M Danfoss EU-UK 064G9615.11 UL E31024 UL E494625 UL E510763 UL E227388 Pressure & Temperature Sensors NSF C0252992 Bayonet_9-16-18_UNF_Green
