076G1023
Part Number: 076G1023
Product Information
Extended Description

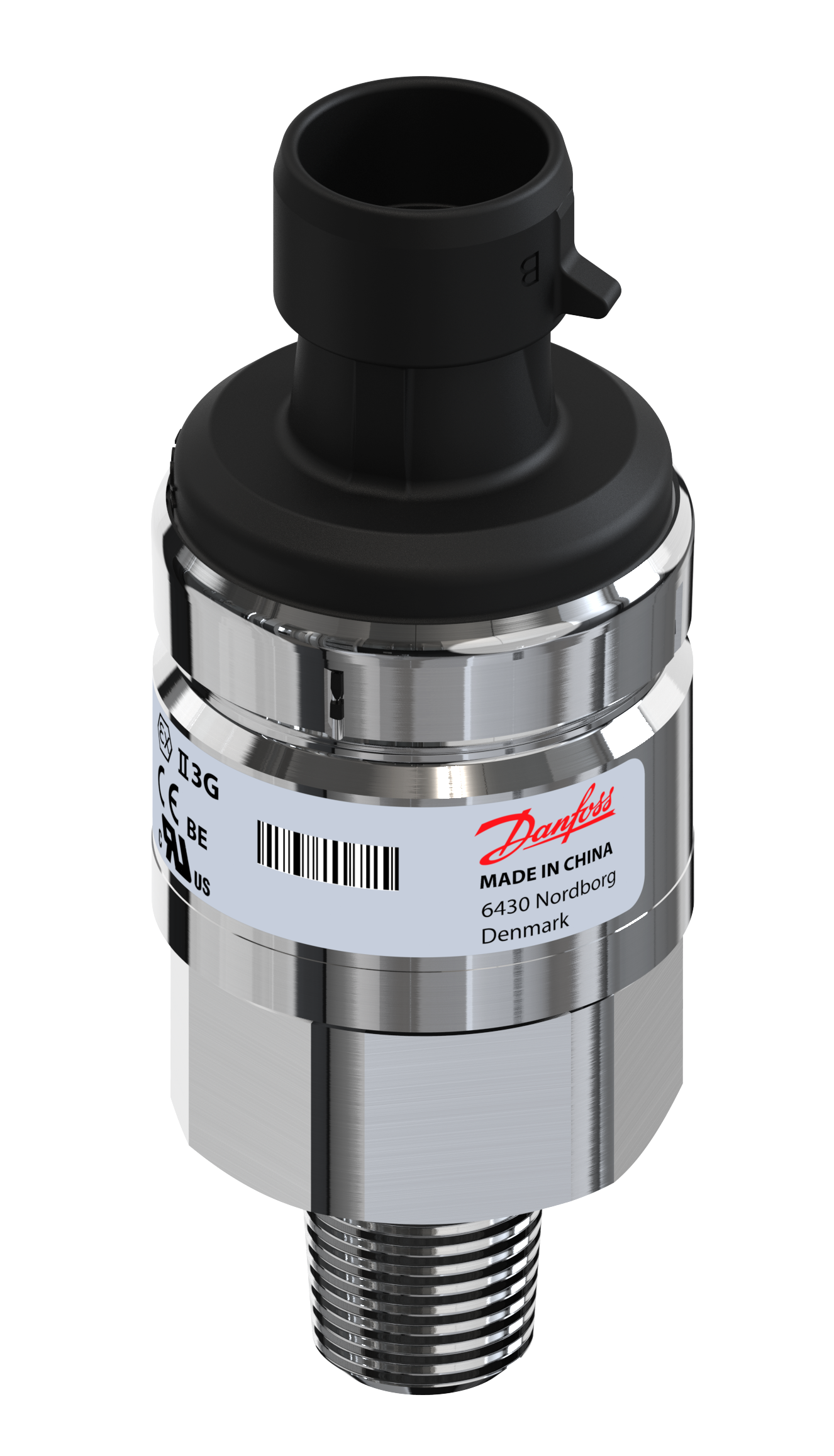

076G1023 Danfoss: Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: DST P310-9736-C2AC04-0
Gross weight
0.137 Kilogram
Net weight
0.121 Kilogram
Volume
0.253 Liter
EAN
5715162440360
+ output
Pin 3
+ supply
Pin 1
- common
Pin 2
Accuracy, max. [±FS%]
1 %
Accuracy, typical [±FS%]
0.5 %
Adj. zero point and span
No
Ambient temperature range [°C] [max]
125 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
257 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
cUR
Approval standard
E227388,E31024
Autofrettage Pressure
500 bar
CE evaluated
Yes
Compensated temp. range [°C] [max]
125 °C
Compensated temp. range [°C] [min]
-40 °C
Compensated temp. range [°F] [max]
257 °F
Compensated temp. range [°F] [min]
-40 °F
Contain batteries
No
Electrical conn. Male/Female
Male
Electrical connection
Round Packard Metri-Pack
Electrical connection size
3 pin
Enclosure rating IP
IP65
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fault signal level
2
Flush diaphragm
No
High Clipping Level
99
Identical product
076G4008
International Article Number
5715162440360
Intrinsically safe
No
Low Clipping level
4
Medium temperature range [°C] [max]
125 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
257 °F
Medium temperature range [°F] [min]
-40 °F
Output signal
Ratio metric
Overload pressure max. [bar]
960 bar
Packing format
Multi pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4-18
Pressure connection standard
ANSI/ASME B1.20.1
Pressure connection type
NPT
Pressure Male/Female
Male
Pressure range [bar] [max]
159 bar
Pressure range [bar] [min]
-1 bar
Pressure range [psi] [max]
2306 psi
Pressure range [psi] [min]
-14.5 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
Yes
Quantity per packing format
20 pc
Ratiometric of Vsupply [%] [max]
90 %
Ratiometric of Vsupply [%] [min]
10 %
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
4 ms
SCIP dossier no.
cad3914f-8db1-488c-b0ad-3a20ac1ebb41
Specification key
DST P310-9736-C2AC04-0
Supply voltage [V] DC [max]
6 V
Supply voltage [V] DC [min]
5 V
Type
DST P310
UK RoHS compliance
Out of scope
UL evaluated
Yes
