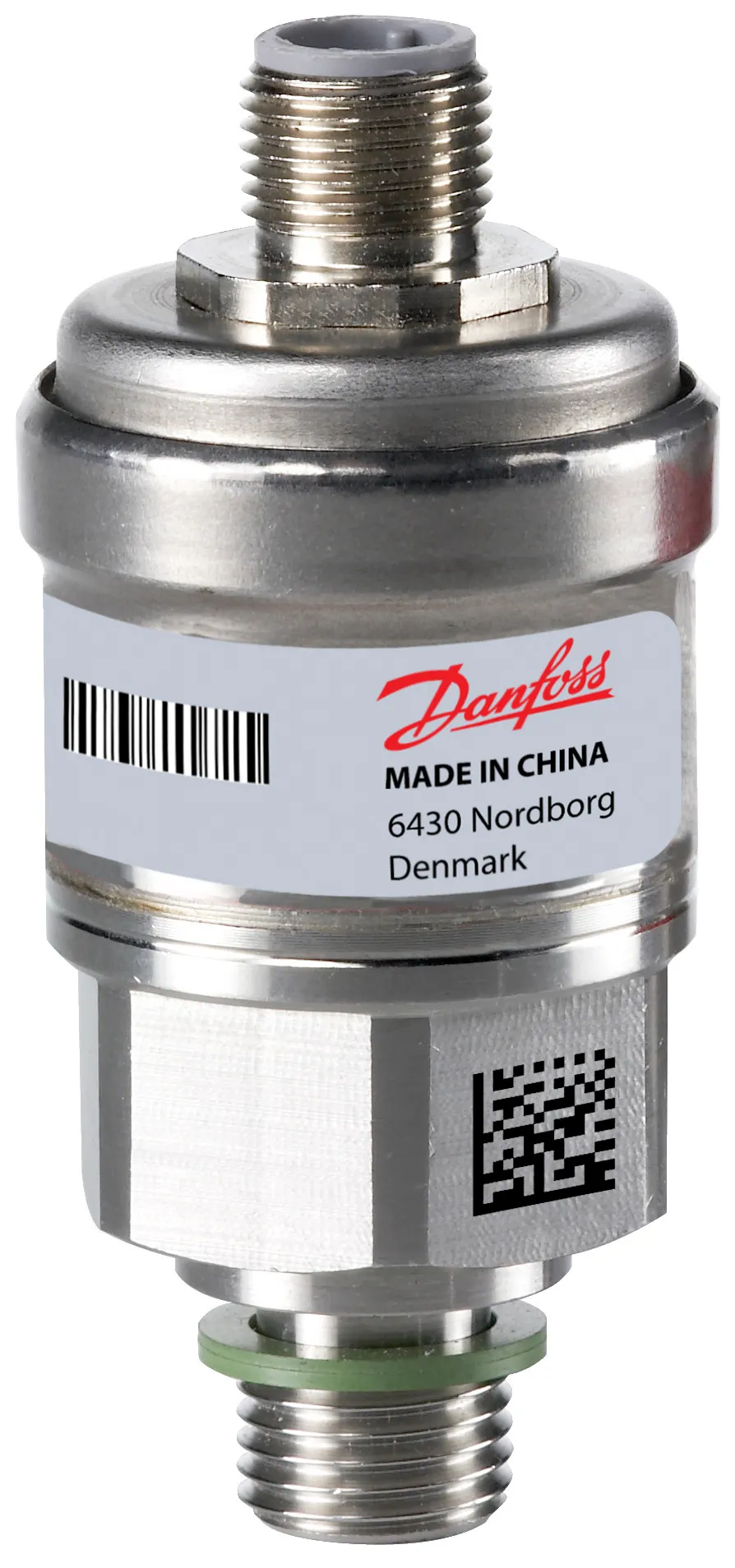

076G1024
Part Number: 076G1024
Product Information
Extended Description
076G1024 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: DST P310-9731-C1AC04-0
Gross weight
0.154 Kilogram
Net weight
0.137 Kilogram
Volume
0.253 Liter
EAN
5715162457115
+ supply
Pin 1
- common
Pin 2
Accuracy, max. [±FS%]
1 %
Accuracy, typical [±FS%]
0.5 %
Adj. zero point and span
No
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-40 °F
Autofrettage Pressure
500 bar
CE evaluated
Yes
Compensated temp. range [°C] [max]
125 °C
Compensated temp. range [°C] [min]
-40 °C
Compensated temp. range [°F] [max]
257 °F
Compensated temp. range [°F] [min]
-40 °F
Contain batteries
No
Electrical conn. Male/Female
Male
Electrical connection
M12 x 1
Electrical connection size
4 pin
Electrical connection standard
IEC 61076-2-101
Enclosure rating IP
IP67
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flush diaphragm
No
High Clipping Level
22.4
International Article Number
5715162457115
Intrinsically safe
No
Low Clipping level
3.6
Medium temperature range [°C] [max]
85 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
185 °F
Medium temperature range [°F] [min]
-40 °F
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
960 bar
Overload pressure max. [psi]
13923 psi
Packing format
Multi pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4-18
Pressure connection standard
ANSI/ASME B1.20.1
Pressure connection type
NPT
Pressure Male/Female
Male
Pressure range [bar] [max]
159 bar
Pressure range [bar] [min]
-1 bar
Pressure range [psi] [max]
2306 psi
Pressure range [psi] [min]
-14.5 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
Yes
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
4 ms
SCIP dossier no.
cad3914f-8db1-488c-b0ad-3a20ac1ebb41
Specification key
DST P310-9731-C1AC04-0
Supply voltage [V] DC [max]
32 V
Supply voltage [V] DC [min]
9 V
Type
DST P310
UK RoHS compliance
Out of scope
UL evaluated
Yes
