076G1033

Part Number: 076G1033
076G1033
Manufacturer
Danfoss
Part number
076G1033
Category

Product Information

Extended Description

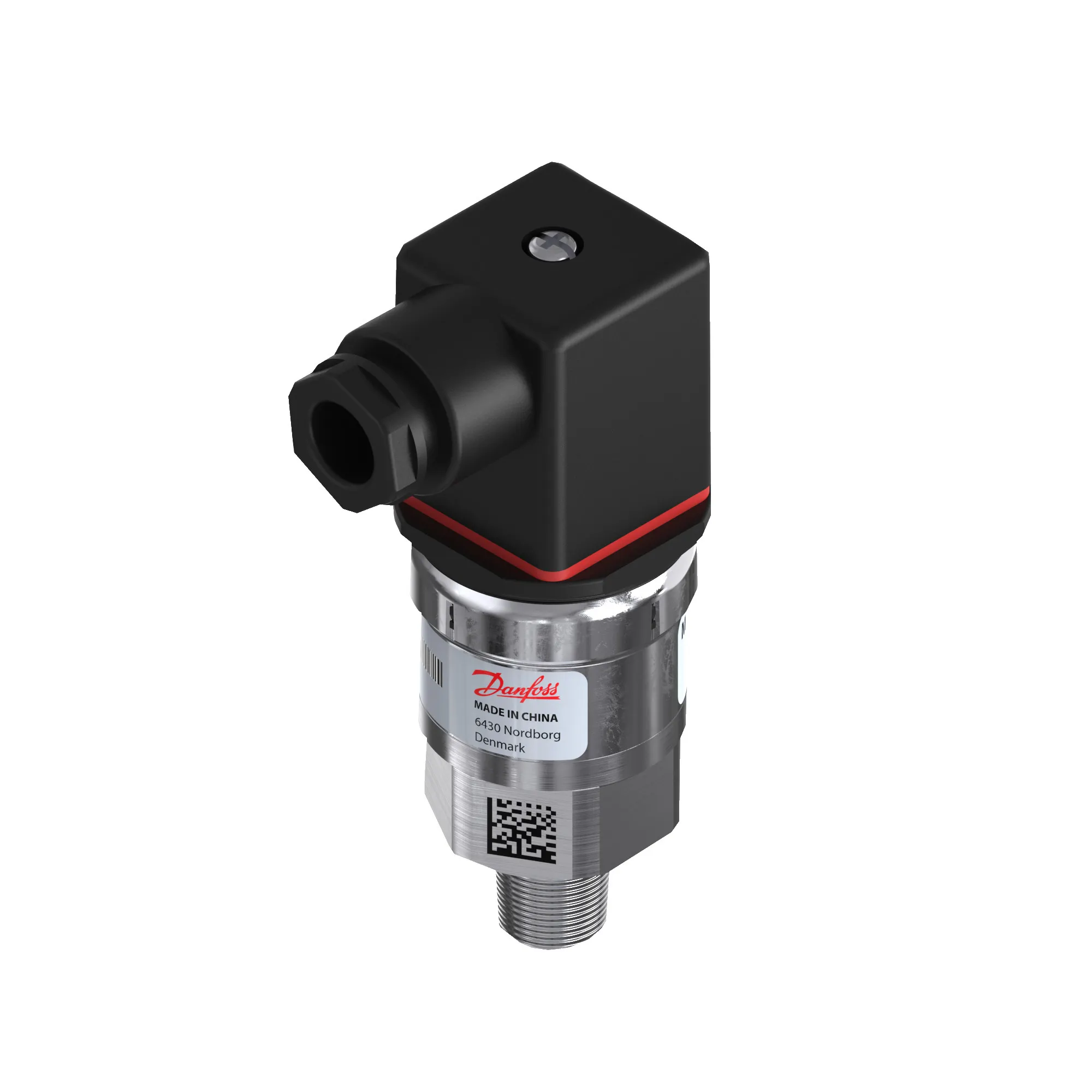

076G1033 Danfoss: Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: DST P300-2016-A1AC04-0
Gross weight
0.209 Kilogram
Net weight
0.157 Kilogram
Volume
0.411 Liter
EAN
5715162495322
+ output
Pin 3
+ supply
Pin 1
- supply
Pin 2
Accuracy, max. [±FS%]
1 %
Accuracy, typical [±FS%]
0.5 %
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX
Approval comments
ATEX Ex ec IIA T4 Gc
CE evaluated
Yes
China RoHS compliance
Out of scope
Compensated temp. range [°C] [max]
125 °C
Compensated temp. range [°C] [min]
-40 °C
Compensated temp. range [°F] [max]
257 °F
Compensated temp. range [°F] [min]
-40 °F
Contain batteries
No
Electrical conn. Male/Female
Male and Female
Electrical connection
Angular connector
Electrical connection size
Pg 9
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Fault signal level
2
Flush diaphragm
No
High Clipping Level
99
International Article Number
5715162495322
Intrinsically safe
No
Low Clipping level
4
Medium temperature range [°C] [max]
125 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
257 °F
Medium temperature range [°F] [min]
-40 °F
Output signal
Ratio metric
Overload pressure max. [bar]
60 bar
Packing format
Multi pack
Pressure connection HEX [mm]
27 mm
Pressure connection size
1/4-18
Pressure connection standard
ANSI/ASME B1.20.1
Pressure connection type
NPT
Pressure Male/Female
Male
Pressure range [bar] [max]
10 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
145 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Gauge (relative)
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
14 pc
Ratiometric of Vsupply [%] [max]
90 %
Ratiometric of Vsupply [%] [min]
10 %
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
2 ms
SCIP dossier no.
cad3914f-8db1-488c-b0ad-3a20ac1ebb41
SCIP dossier product name
DST P300
Specification key
DST P300-2016-A1AC04-0
Supply voltage [V] DC [max]
5.5 V
Supply voltage [V] DC [min]
4.5 V
Type
DST P300
UK RoHS compliance
Out of scope
Pressure transmitter for general industrial purposes with diagnostics DST P300 Pressure Transmitters, MBS 33, MBS 33M, MBS 3000, MBS 3050, MBS 3200, MBS 3250, MBS 3300, MBS 3350, MBS 4000, MBS 4050, MBS 4003, MBS 4010, DST P300, DST P310, DST P30M Danfoss EU-UK 064G9615.11 UL E31024 UL E494625 UL E510763 UL E227388 Pressure & Temperature Sensors NSF C0252992 Pressure transmitter, Pg 9 / Pg 11, 1/4-18 NPT
