078G5013

Part Number: 078G5013
078G5013
Manufacturer
Danfoss
Part number
078G5013
Category

Product Information

Extended Description

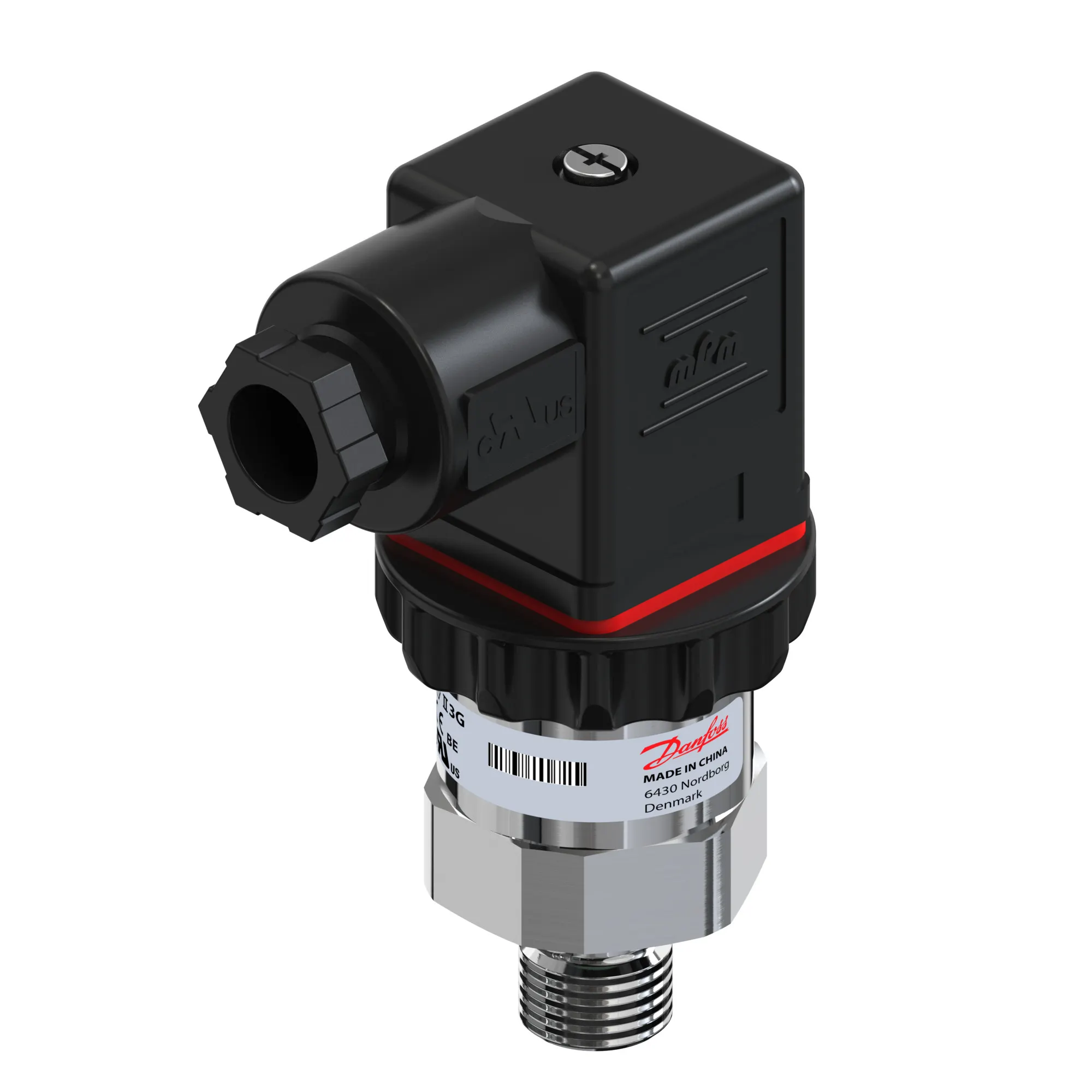

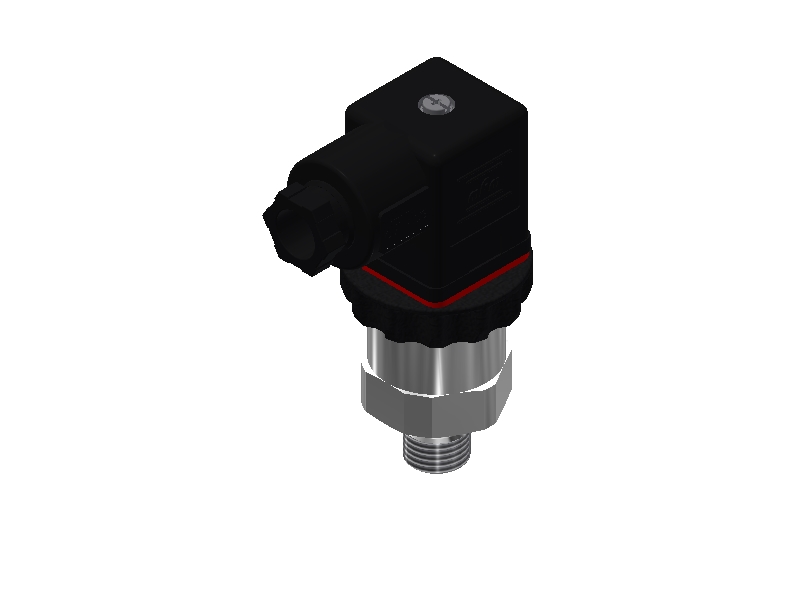

078G5013 Danfoss: Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: DST P40I-1011-A1GB04
Gross weight
0.115 Kilogram
Net weight
0.103 Kilogram
Volume
0.251 Liter
EAN
5702428577106
+ supply
Pin 1
- common
Pin 2
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-25 °C
Burst pressure [bar]
12 bar
CE evaluated
Yes
China RoHS compliance
Out of scope
Compensated temp. range [°C] [max]
80 °C
Compensated temp. range [°C] [min]
0 °C
Contain batteries
No
Electrical conn. Male/Female
Male
Electrical connection
Angular connector
Electrical connection size
Pg 9
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
Medium temperature range [°C] [max]
85 °C
Medium temperature range [°C] [min]
-15 °C
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
8 bar
Packing format
Multi pack
Pressure connection HEX [mm]
27 mm
Pressure connection notes
A
Pressure connection size
1/4
Pressure connection standard
ISO 1179-2
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
1 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
14.5 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Gauge (relative)
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
6b078679-471a-4330-8fd4-d63473b641b0
SCIP dossier product name
Sensor DST P40I + M
Specification key
DST P40I-1011-A1GB04
Supply voltage [V] DC [max]
32 V
Supply voltage [V] DC [min]
9 V
Type
DST P40I
Pressure transmitter, type DST P40I Pressure transmitters DST P40I / DST P 40M Danfoss EU-UK 078R0006.04 Pressure & Temperature Sensors Pressure transmitter DST P40I, Pg 9/Pg 11, G 1/4 DST-P40I-1011-A1GB04
