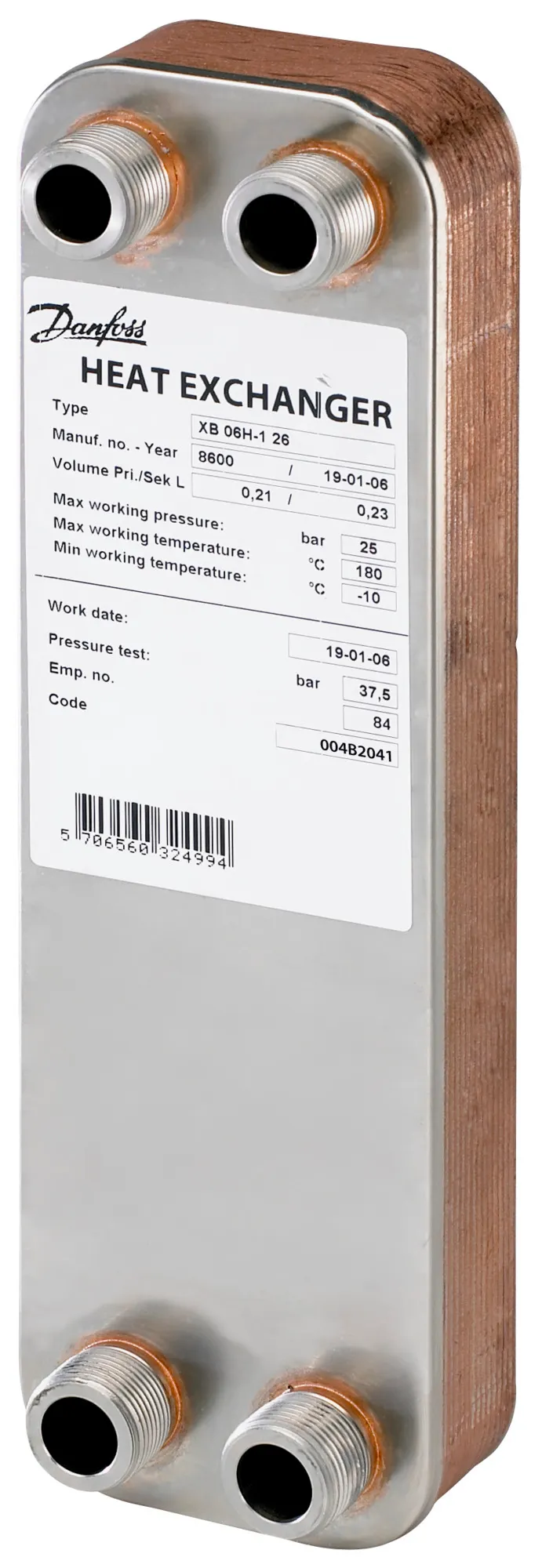

079B0034

Part Number: 079B0034
079B0034
Manufacturer
Danfoss
Part number
079B0034
Category

Product Information

Extended Description

079B0034 Danfoss: 25 bar, Brazing material: Copper
Gross weight
1.566 Kilogram
Net weight
1.37 Kilogram
Volume
2.96 Liter
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
20 mm
Connection length 2 [mm]
20 mm
Connection length side 1 [mm]
20 mm
Connection length side 2 [mm]
20 mm
Connection size 1
3/4
Connection size 2
3/4
Connection standard
ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
Horizontal center porthole[mm]
45 mm
In scope of WEEE
No
Material Description (Short Te
XB06H+-1-10_2Cu_25_S1_2G3/4_IP
Max working pressure 1 [bar]
25 bar
Max working pressure 2 [bar]
25 bar
Number of passes
1
Number of plates
10
Packing format
Industrial pack
PED category
Art. 4, par. 3
Plate material no.
1.4404
Plate pattern
H+
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Quantity per packing format
120 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-196 =C2=B0C
Total height without feet [mm]
320 mm
Total width [mm]
95 mm
Type
XB06H+-1
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
270 mm
Vertical center porthole 2[mm]
270 mm
Vertical center porthole side 1 [mm]
270 mm
Volume per channel 1 [l]
0.018 L
Volume per channel 2 [l]
0.018 L
Making applications future proof, all our knowledge =E2=80=93 is now yours Ultra-efficient brazed heat exchangers for a wide range of applications Ultra-efficient brazed heat exchangers for your district energy applications Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger (MPHE): XB06 Brazed plate heat exchangers Ultra-efficient brazed heat exchangers for your district energy applications E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Kiwa K 48268-11 SVGW 0409-4877 WRAS 2110022 Danfoss MD BF248486516840en-000701.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 BV CE-0062-PED-H-DAF 001-24-DNK Brazed heat exchanger type XB 06H-1-26
