079G1657

Part Number: 079G1657
079G1657
Manufacturer
Danfoss
Part number
079G1657
Category

Product Information

Extended Description

079G1657 Danfoss: 10 bar, Brazing material: Stainless steel
Gross weight
3.542 Kilogram
Net weight
3.12 Kilogram
Volume
677.28 Liter
Approval
PED
Brazing material
Stainless steel
China RoHS compliance
Yes
Connection length 1 [mm]
20 mm
Connection length 2 [mm]
20 mm
Connection size 1
3/4
Connection size 2
3/4
Connection standard
ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
2
Horizontal center porthole[mm]
42 mm
In scope of WEEE
No
Material Description (Short Te
XB05H-1-60_2StS_10_S1_2G3/4_IP
Max working pressure 1 [bar]
10 bar
Max working pressure 2 [bar]
10 bar
Number of passes
1
Number of plates
60
Packing format
Industrial pack
PED category
Art. 4, par. 3
Plate material no.
1.4404
Plate pattern
H
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Quantity per packing format
150 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-196 =C2=B0C
Total height without feet [mm]
312 mm
Total width [mm]
76 mm
Type
XB05H-1
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
278 mm
Vertical center porthole 2[mm]
278 mm
Volume per channel 1 [l]
0.016 L
Volume per channel 2 [l]
0.016 L

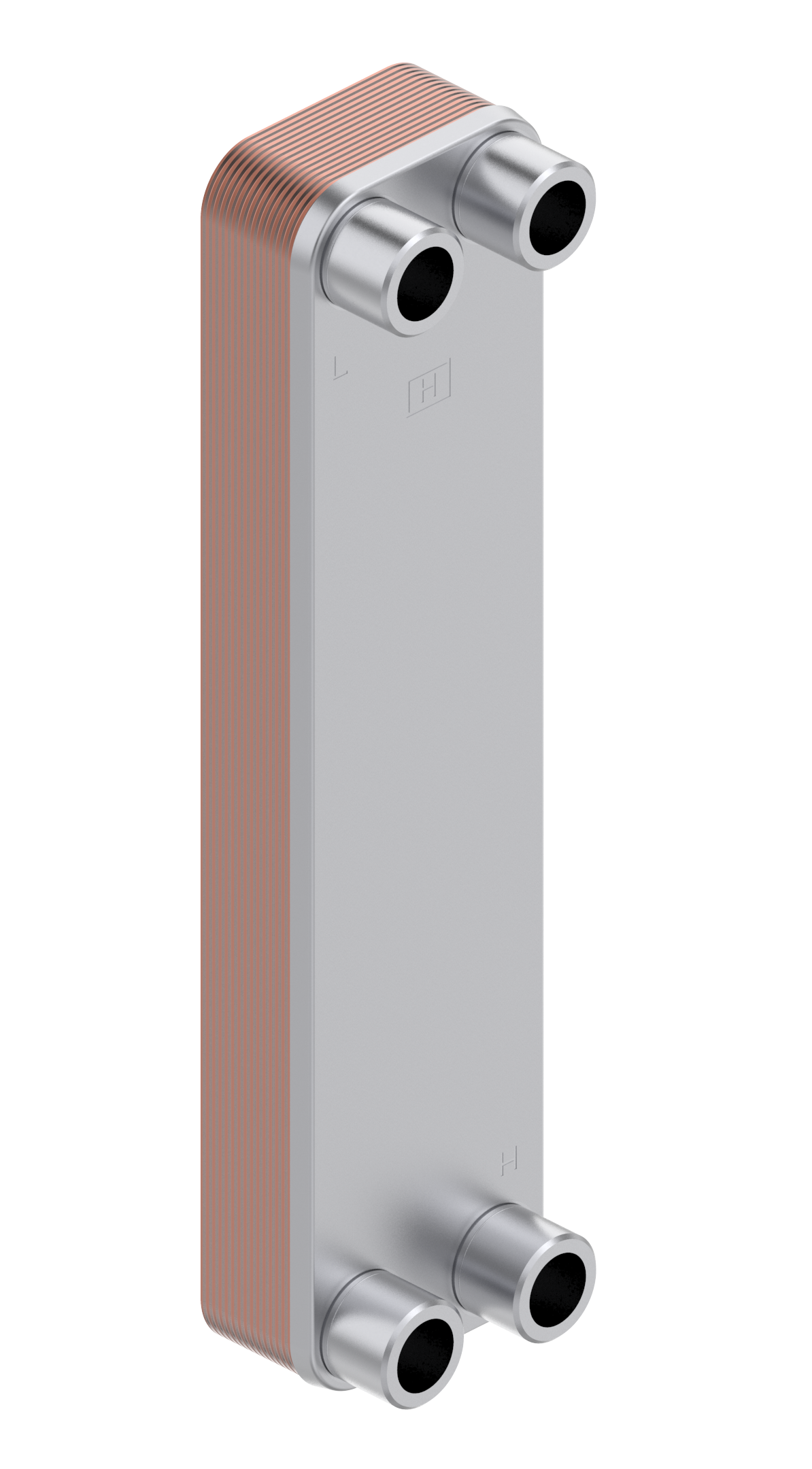

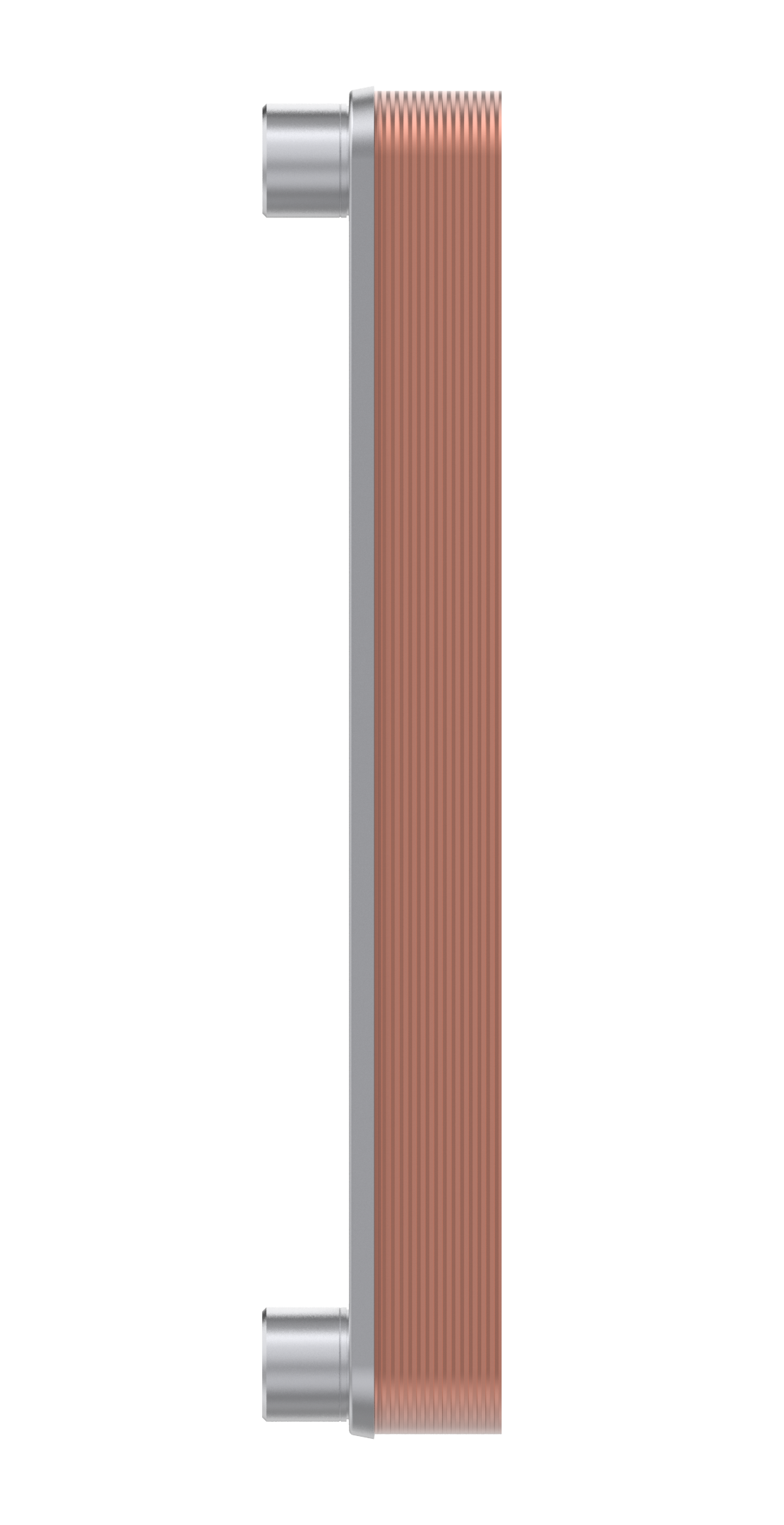

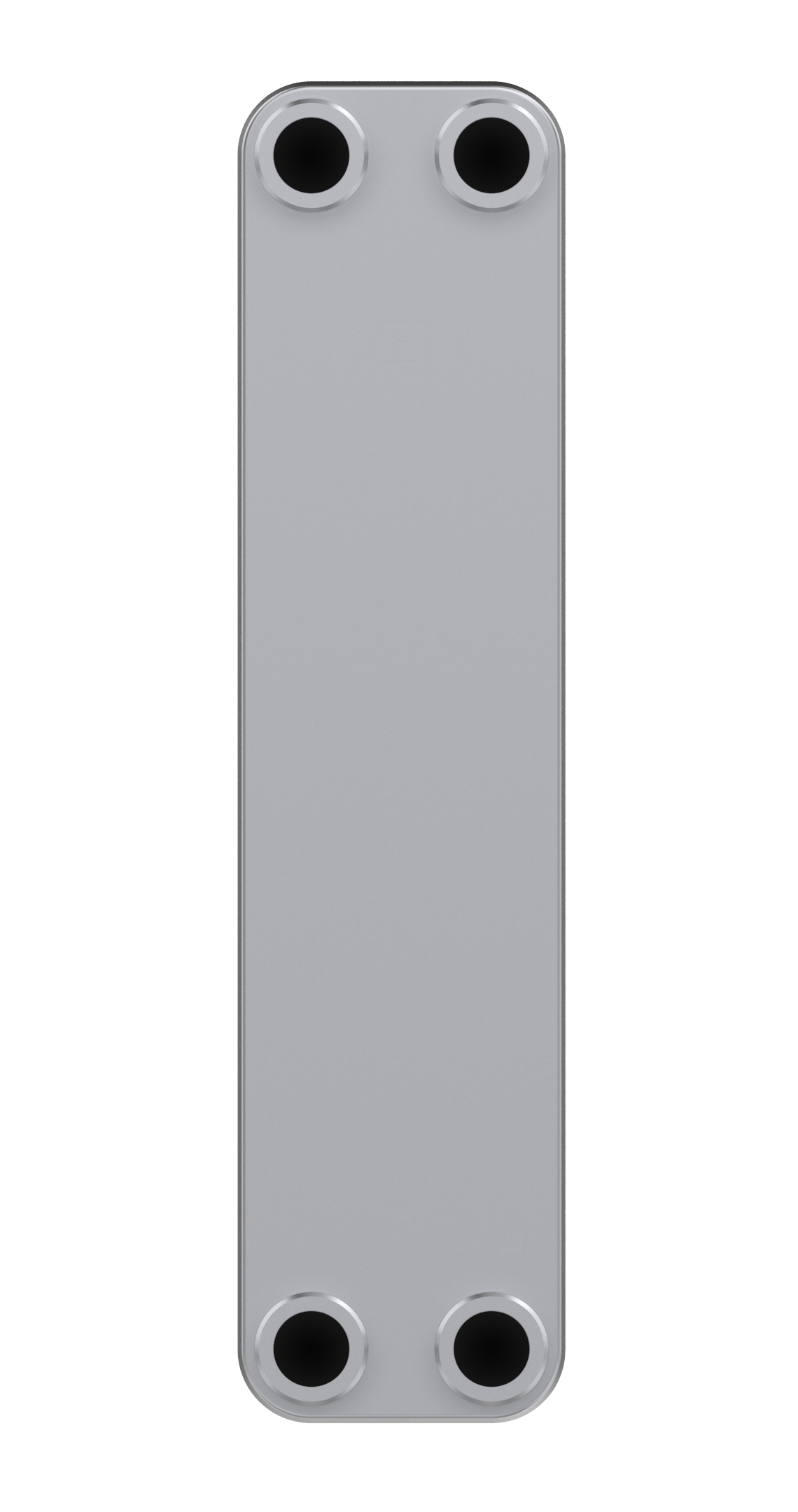

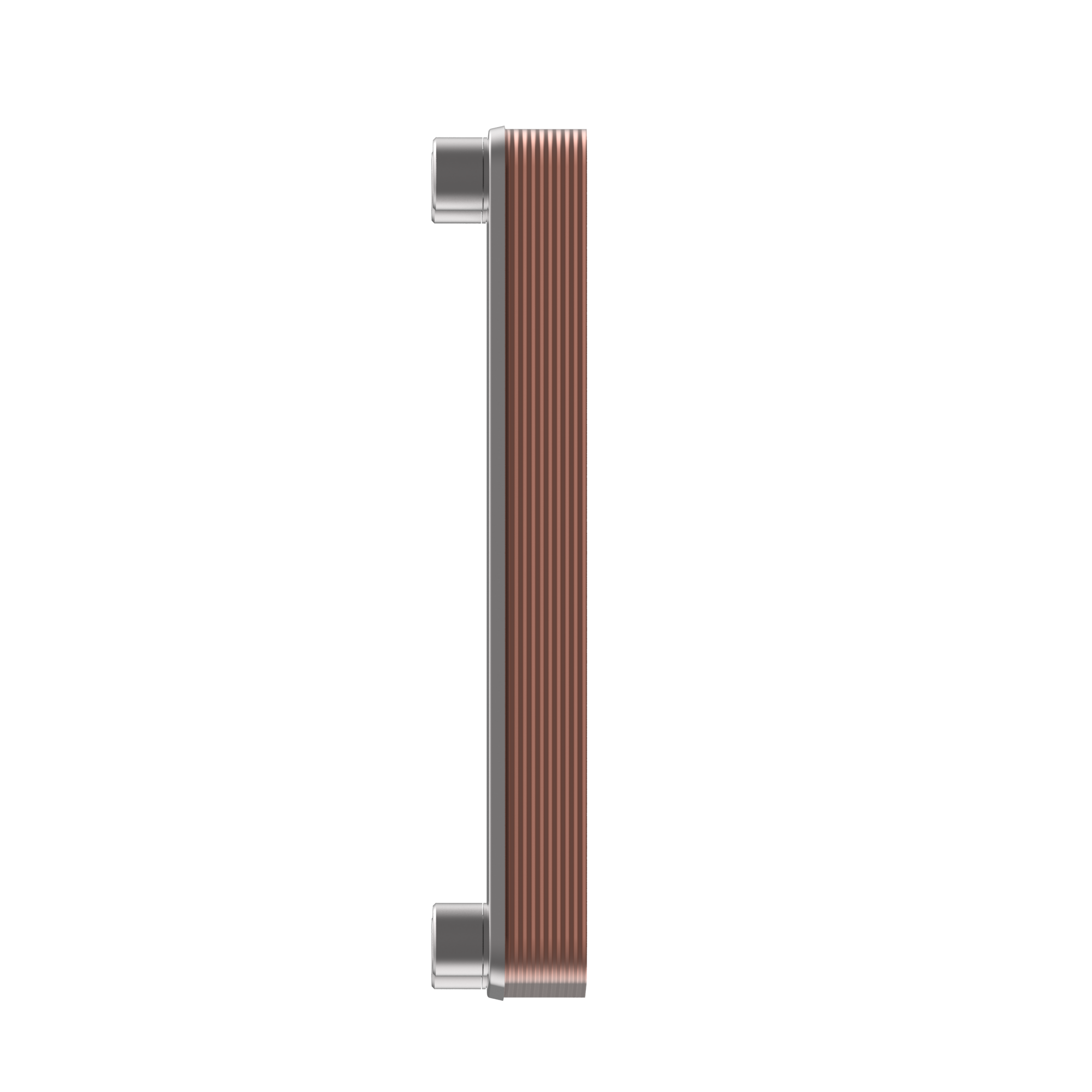

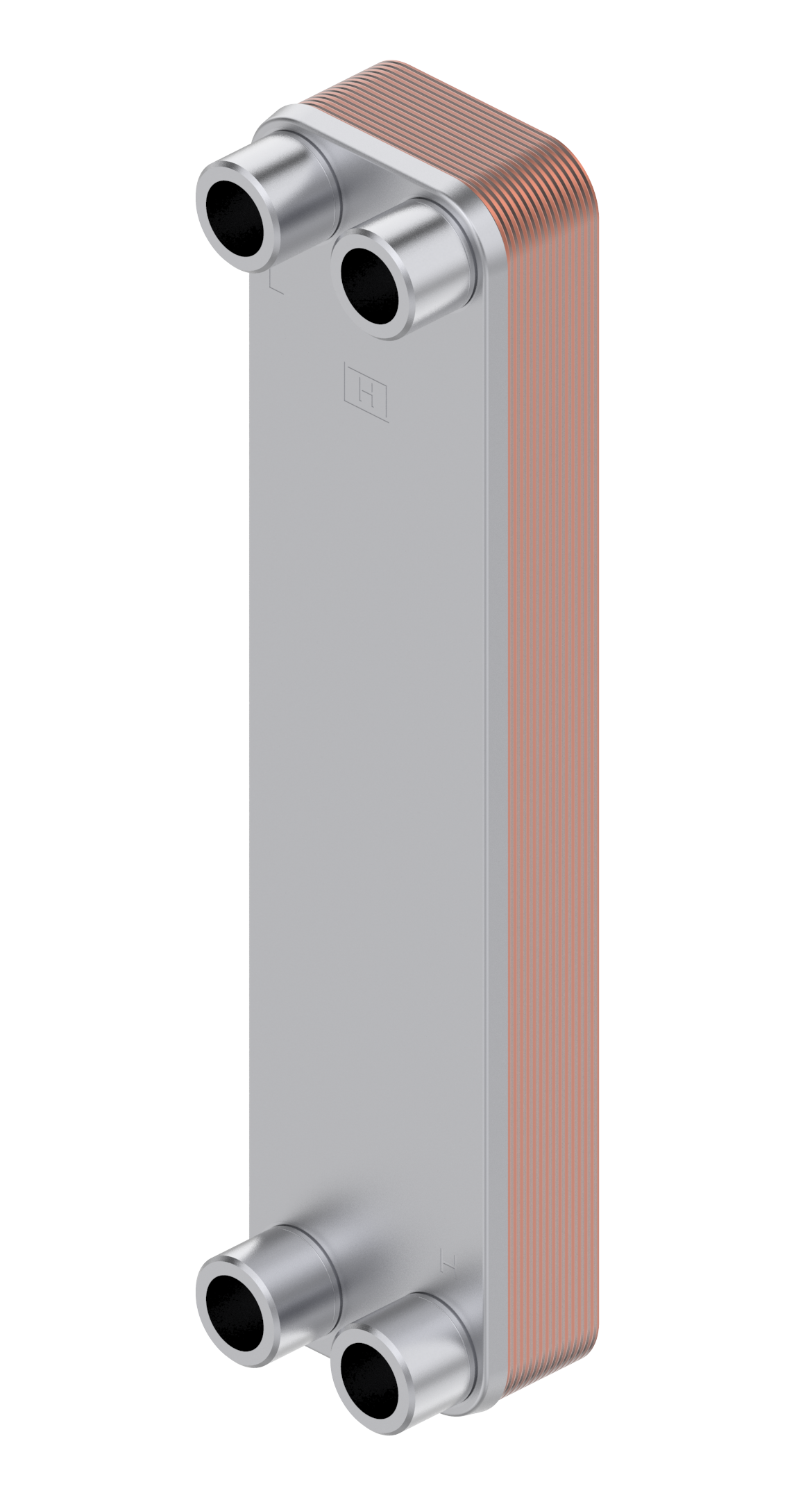

Z-design MPHEs for chillers Economic and environmental savings in cooling Brazed plate heat exchangers E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers Micro Plate Heat Exchangers - Not dual use Kiwa K 48268-11 SVGW 0409-4877 WRAS 240902017 Danfoss MD BF248486516840en-000701.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 XB05-Left XB05H-Side XB05H-Front XB05H-right XB05H
