079H9673

Part Number: 079H9673
079H9673
Manufacturer
Danfoss
Part number
079H9673
Category

Product Information

Extended Description

079H9673 Danfoss: Max. Working Pressure [bar]: 30.0, Universal, Function: Null, Brazing material: Copper brazing
Gross weight
1.09 Kilogram
Net weight
0.87 Kilogram
Volume
3.335 Liter
EAN
5702424249182
Application
Universal
Approval
AS,EAC,KRAIA,UA,UL,CRN,RoHS
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Null
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Null
Function note
Null
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
014
Number of plates
10
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
AISI 316L
Plate pattern
H
Product group
Heat exchangers
Product Name Description

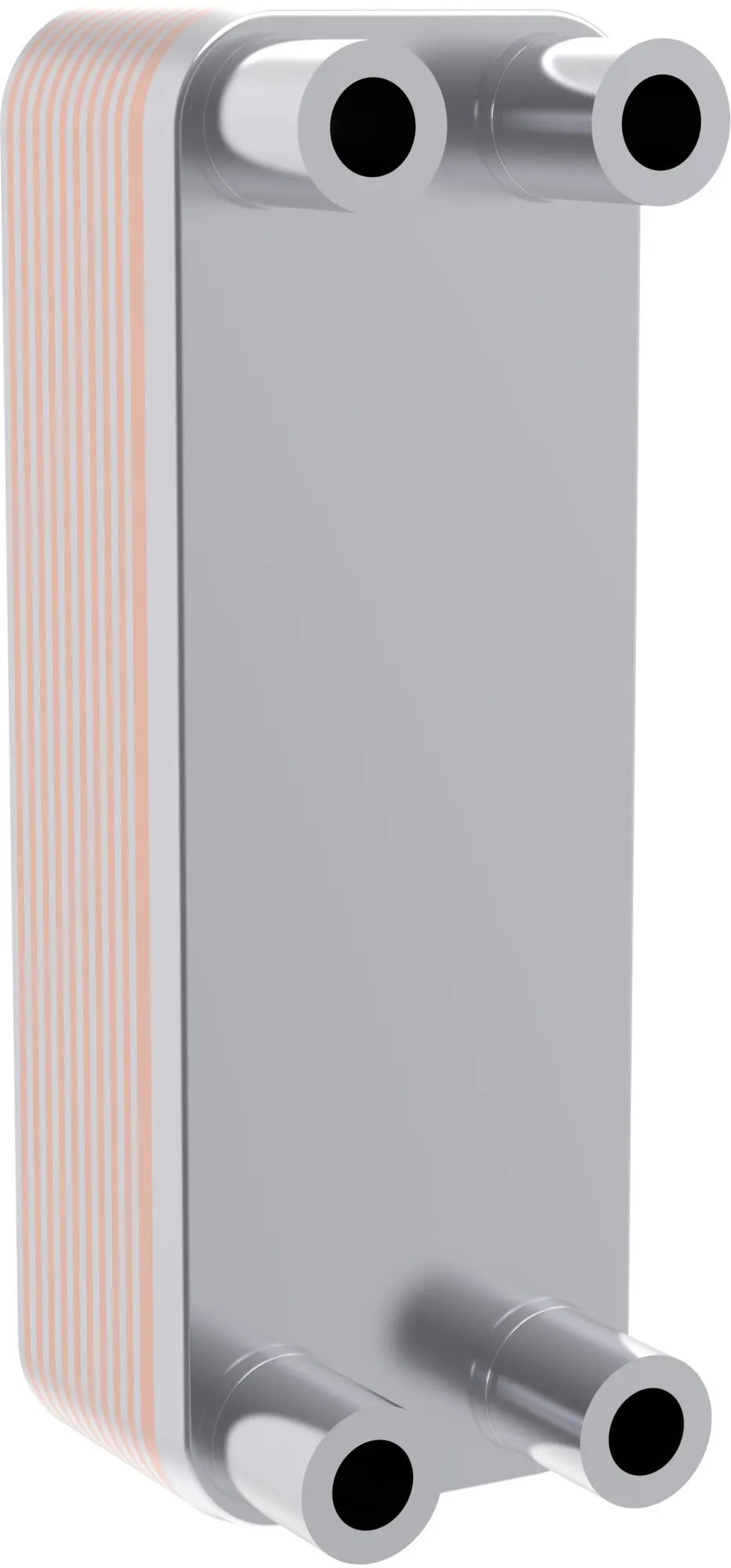

Brazed plate heat exchanger
Q1 conn. size range
L3/4D
Q1 conn. type
G External thread connection
Q2 conn. size range
L3/4D
Q2 conn. type
G External thread connection
Q3 conn. size range
L3/4D
Q3 conn. type
G External thread connection
Q4 conn. size range
L3/4D
Q4 conn. type
G External thread connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R407C,R513A,R1233zd(E),R1234yf,R245fa,R404A,R444B,R448A,R449A,R450A,R454C,R455A,R507A,R515B,R1234ze,R454A
Type
BPHE B3-014
Type designation
B3-014
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
EnFusion brazed plate heat exchanger BPHE Brazed plate heat exchanger Type B3 range GB Instructions Guidelines for water quality in Danfoss brazed heat exchangers with plates of EN 1.4404 E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Braze Plate Heat Exchangers - Not Dual Use Danfoss MD BF248486516840en-000701.01 Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Brazed plate heat exchanger_PIC. B BPHE_Nikkel_Pic. Ni-B
