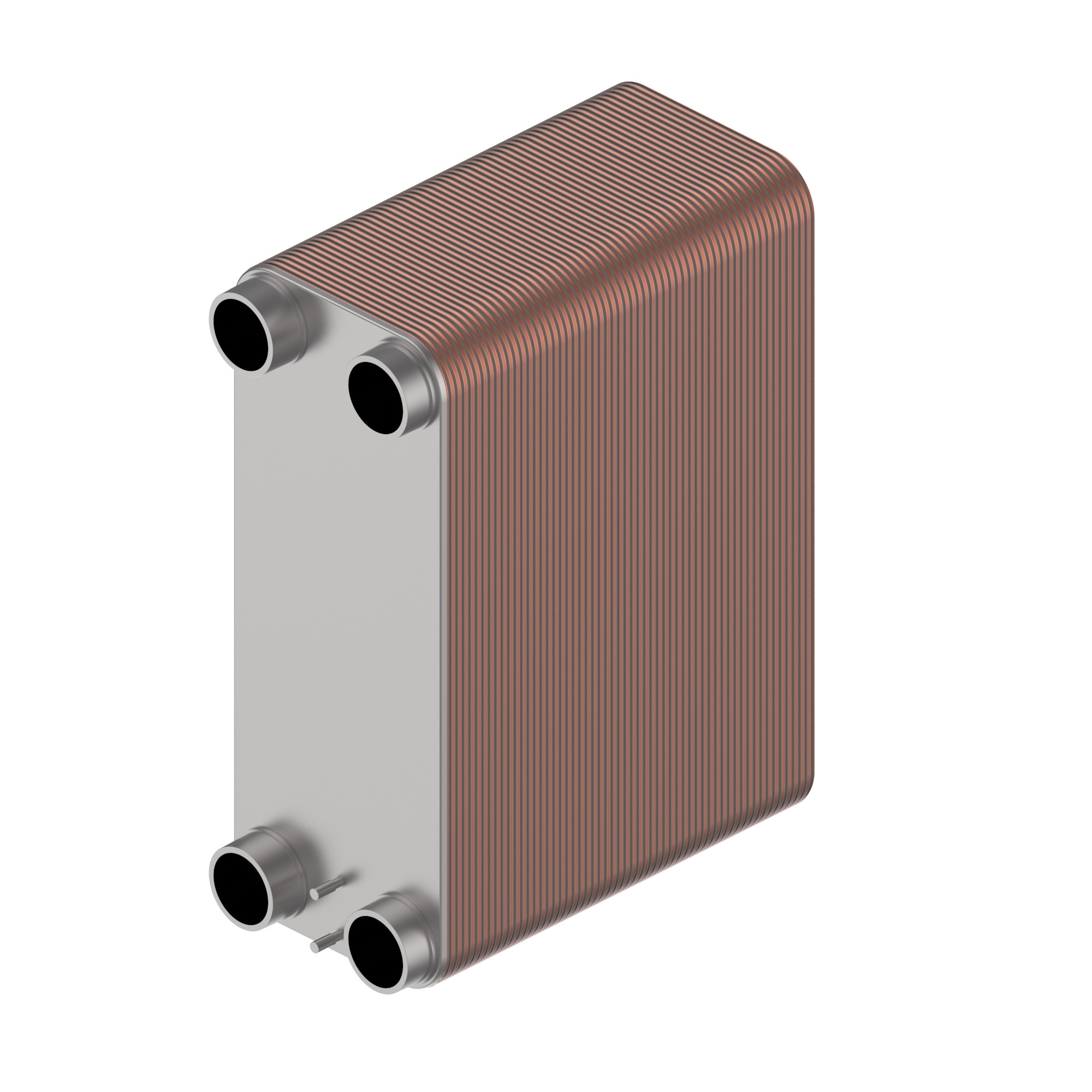

079U6168

Part Number: 079U6168
079U6168
Manufacturer
Danfoss
Part number
079U6168
Category

Product Information

Extended Description

079U6168 Danfoss: 25 bar, Brazing material: Copper
Gross weight
141.195 Kilogram
Net weight
103.166 Kilogram
Volume
508.8 Liter
EAN
5702425169359
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
30 mm
Connection length 2 [mm]
30 mm
Connection length side 1 [mm]
30 mm
Connection length side 2 [mm]
30 mm
Connection size 1
2 1/2
Connection size 2
2 1/2
Connection standard
ISO 7
Connection type 1
R
Connection type 2
R
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
Horizontal center porthole[mm]
150 mm
In scope of WEEE
No
Material Description (Short Te
SL140TM-1-180_2_25_S1_4B2,5
Max working pressure 1 [bar]
25 bar
Max working pressure 2 [bar]
25 bar
Number of passes
1
Number of plates
180
Packing format
Single pack
PED category
III
Plate material no.
1.4404
Plate pattern
TM
Product group
Heat exchangers
Product Name Description
Brazed plate heat exchanger
Quantity per packing format
1 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
225 =C2=B0C
Temperature range [=C2=B0C] [min]
-196 =C2=B0C
Total height without feet [mm]
611 mm
Total width [mm]
241 mm
Type
SL140TM-1
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
520 mm
Vertical center porthole 2[mm]
520 mm
Vertical center porthole side 1 [mm]
520 mm
Volume per channel 1 [l]
0.32 L
Volume per channel 2 [l]
0.32 L
079G1679
Insulation set
079U0787
Tailpieces
079U0792
Tailpieces
079U0885
Mounting brackets
079U0886
Mounting brackets
079U1024
Insulation set

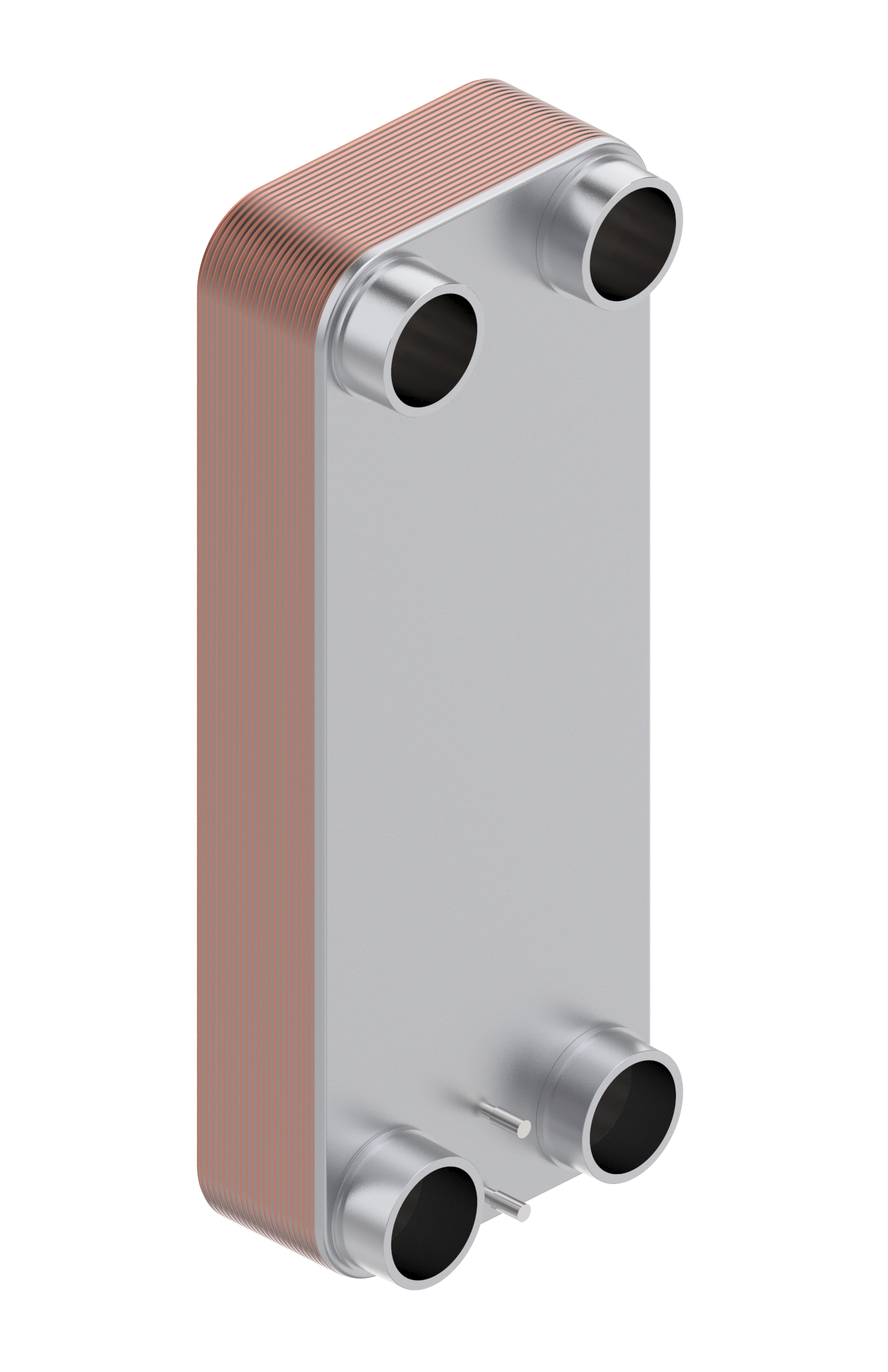

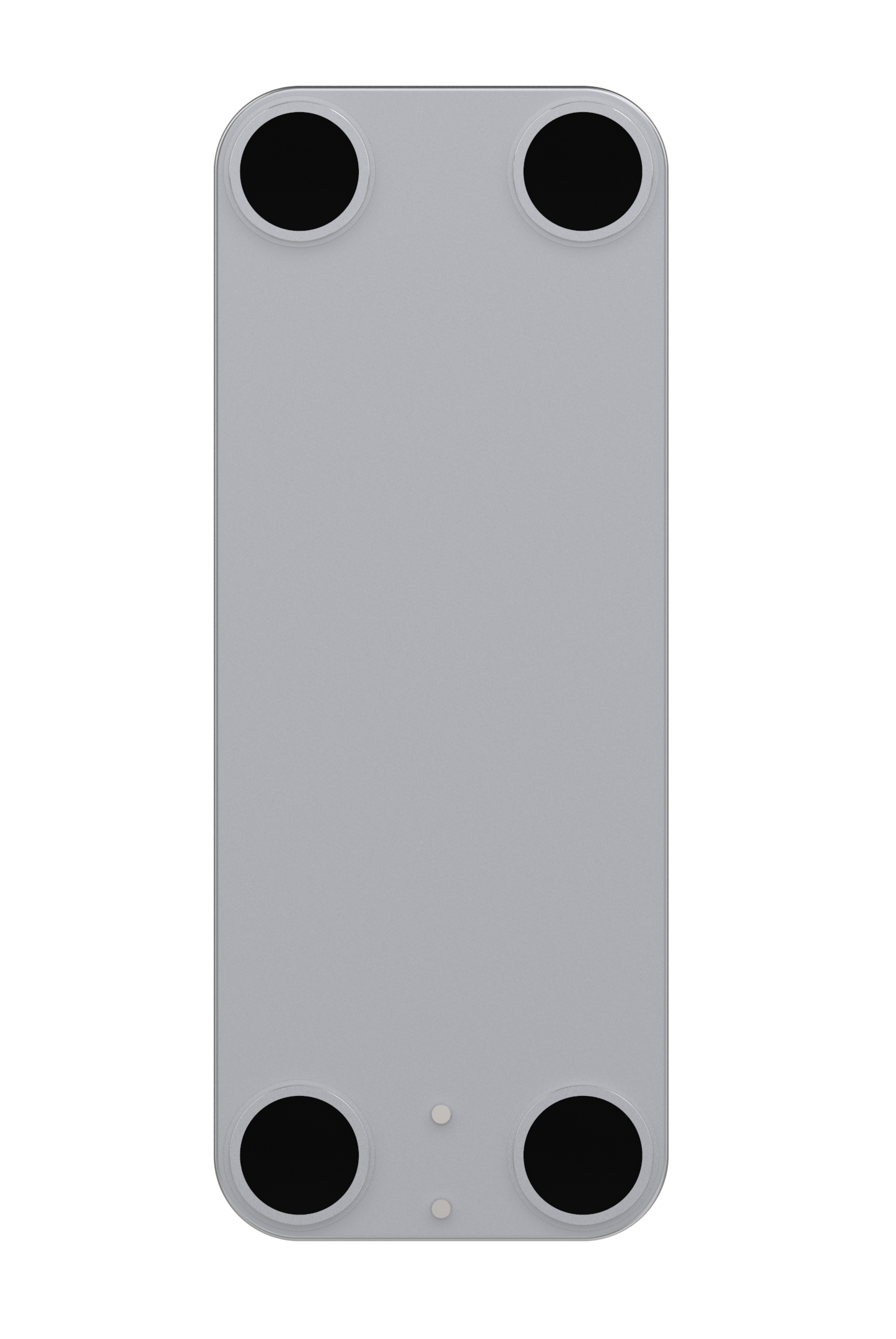

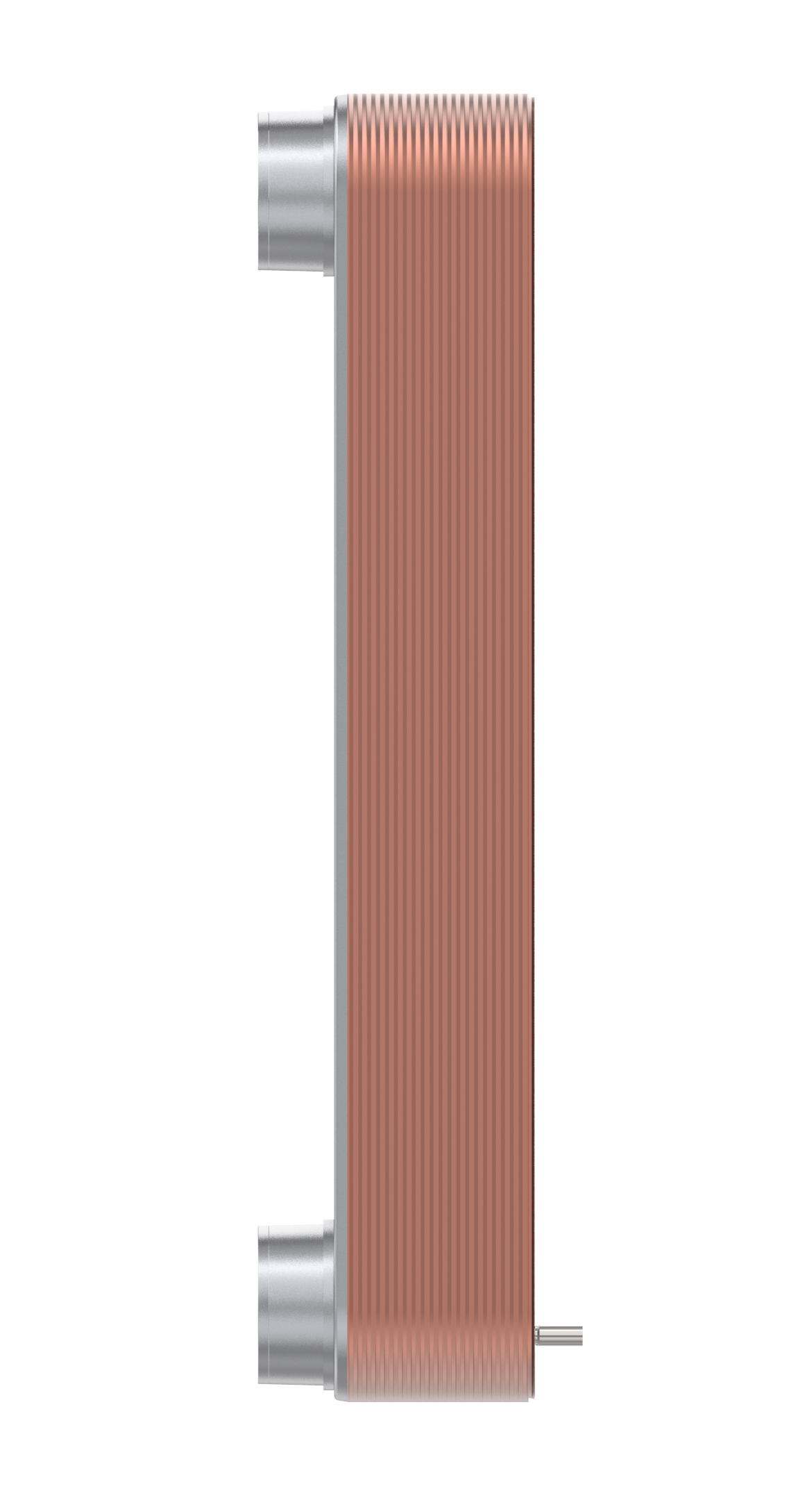

EnFusion brazed plate heat exchanger BPHE SL140 B3-027, SL70, SL140, SL222 & SL333 Mineral wool Insulation Brazed plate heat exchangers Guidelines for water quality in Danfoss brazed heat exchangers with plates of EN 1.4404 Danfoss EU BF202404en-0002.01 Danfoss EU BF202407en-0001.01 Braze Plate Heat Exchangers - Not Dual Use Micro Plate Heat Exchangers - Not dual use Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 BV CE-0062-PED-H-DAF 001-24-DNK BV CE-0062-PED-H1-DAF 001-24-DNK BV CE-0062-PED-H1D-DAF 001-21-DNK-rev.A BV UKCA-0041-PESR-H1D-DAF 002-22-DNK SL140TM-1-110_2_34_S1_4B2,5 SL140_Side SL140-Front SL140_Left
