080G0107

Part Number: 080G0107
080G0107
Manufacturer
Danfoss
Part number
080G0107
Category

Product Information

Extended Description

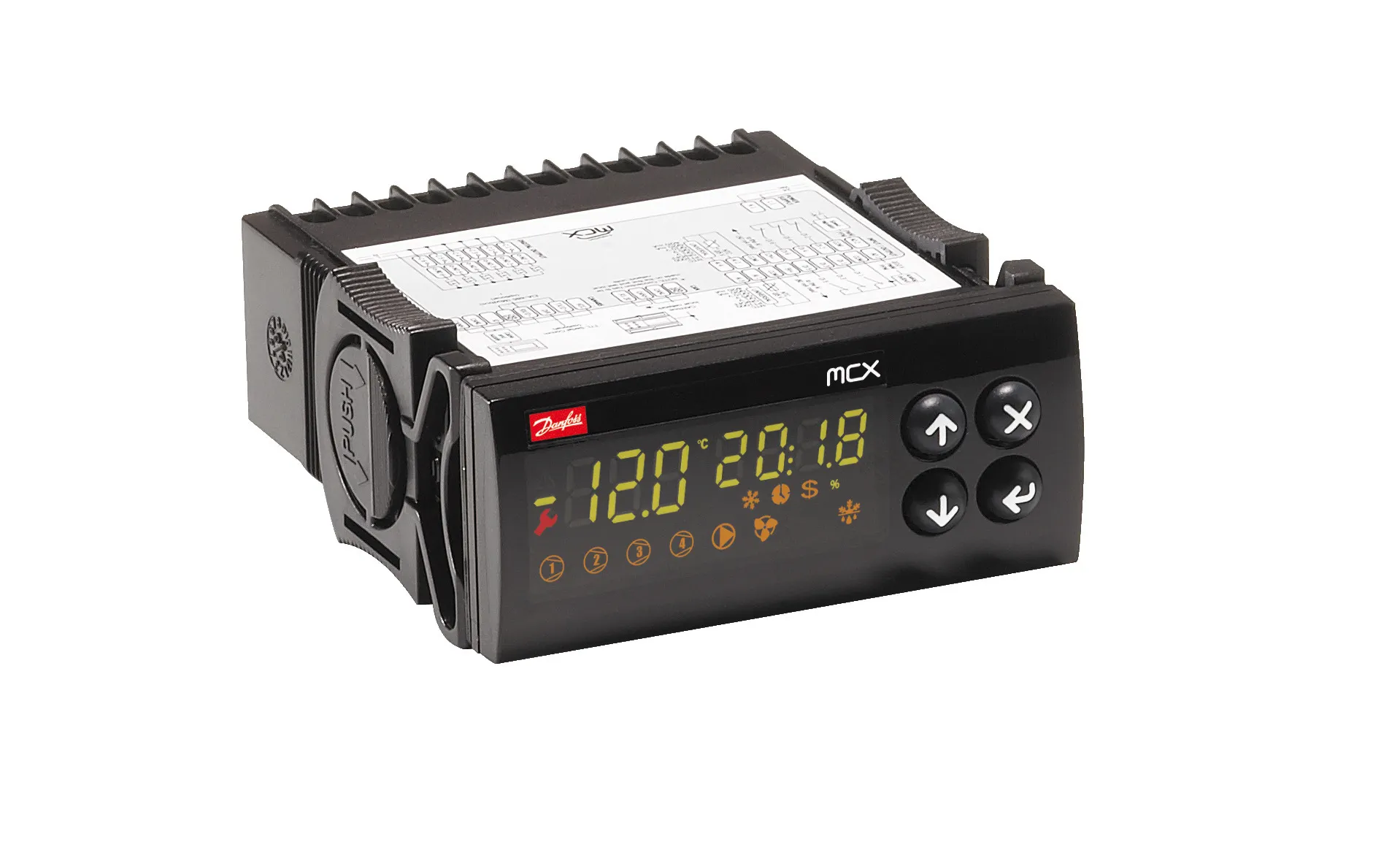

080G0107 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: CANBUS; RS485; MODBUS, Packing format: Industrial pack, Quantity per packing format: 36
Gross weight
0.177 Kilogram
Net weight
0.136 Kilogram
Volume
0.754 Liter
EAN
5702423285426
1 Primary battery SUM weight Kg
0.001
1 Primary battery weight Kg
0.001
Analog inputs (AI) [pc]
4 pc
Analog outputs (AO) [pc]
2 pc
Approval
CE,GOST R,UL
Battery qty
1
Battery type or Name
Lithium coin cell
Buzzer
Yes
CE evaluated
Yes
China RoHS compliance
Yes
Communication type
CANBUS,MODBUS,RS485
Connector kit Code No.
080G0175
Connector kit included
No
Contain batteries
Yes
Digital inputs (DI) [pc]
6 pc
Digital outputs (DO) [pc]
6 pc
Display type
LED
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP65
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
Further information
RS 485 not opto isolated
Identical product
080G0066
In scope of WEEE
Yes
Mounting method
Panel mounting
Packing format
Industrial pack
PFAS content [Yes/No]
No
Power consumption [W]
6 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 6 relays
Quantity per packing format
36 pc
REACH Candidate List substances
No
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
MCX06C
Type designation
MCX06C4500021
UK RoHS compliance
Yes
UL evaluated
Yes
MCX programmable unit controller Take control of your HVAC System with unique versatility and freedom — MCX General Catalogue Programmable controller, 6 relays, type MCX06C Electronic controller, type MCX06C Easy and fast. Apply the MCXWeb tool with your MCX. MCX Web Installation guide The easiest way to get control of your HVAC/R system. MCXShape Danfoss EU-UK 080R1226.02 MCX programmable controllers Danfoss MD 080R1240.00 Danfoss MD 080R4002.01 MCX06C - Electronic control MCX06C - Dimensions
